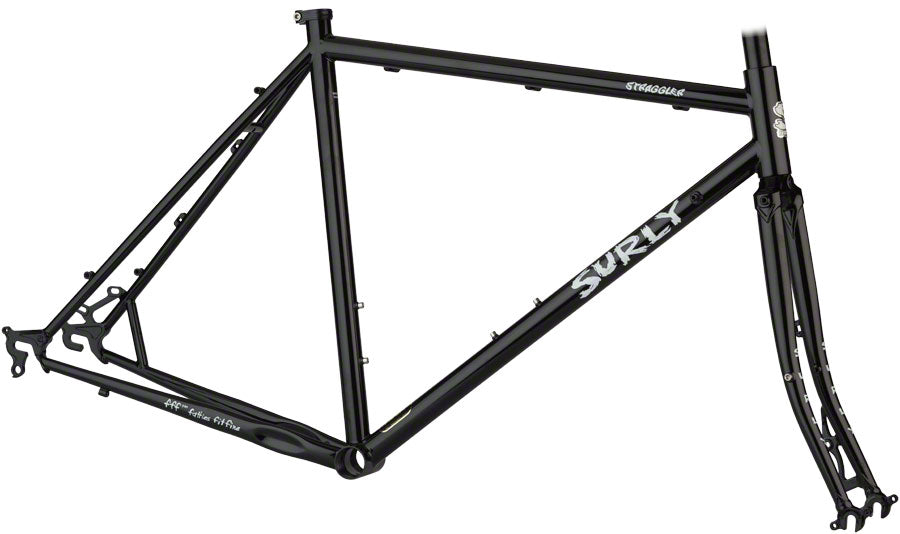

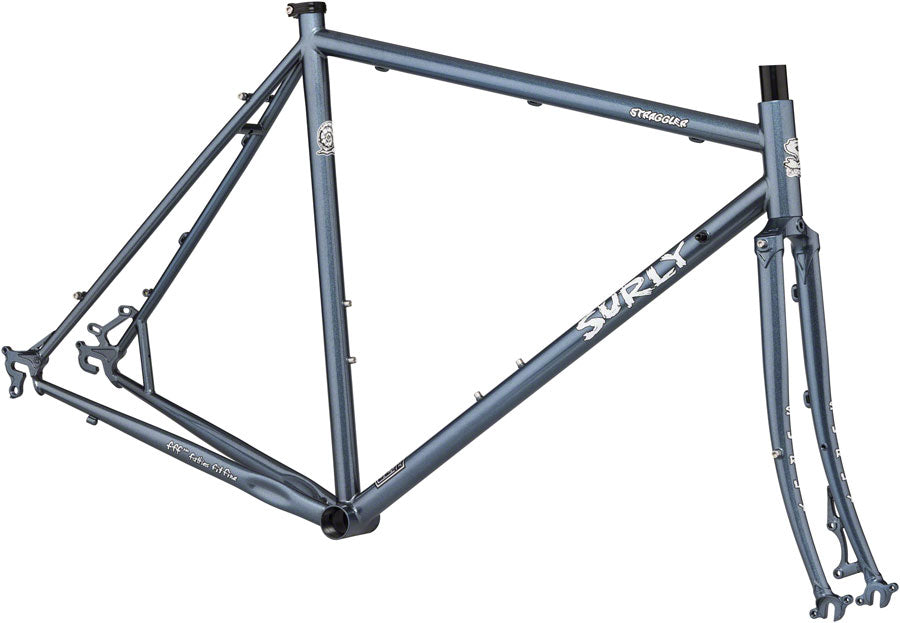

Surly Straggler Frameset

Description

Born on Gravel. Raised on PavementStraggler is tuned for cross-over exploration on a wide variety of terrain conditions. It’s a day-tripper and a weekender. It’s a ‘rough road’ road bike, a cyclocross bike with no pretense about racing, a utilitarian townie, a light-duty touring bike and an all-weather commuter. It’s a steel gravel bicycle that thrives on the road. Think of it as a “mountain biker’s road bike.” If you only have room for one bike in your life, Straggler can (and should) be your one and only.Straggler’s capabilities go well beyond asphalt. It also lends itself well to light touring setups. We're talking frame bags, seat bags, and "credit card touring” rather than full-blown touring. Straggler also handles our 8- and 24-Pack Racks well, so you have some heavier-duty loading options.

Available in 650b and 700c wheel diameters
Accommodations for racks and fenders
Forward-exiting horizontal dropouts for singlespeed compatibility and wheelbase adjustability
Clearance for 650b x 41mm or 700c x 41mm tires with fenders!

Frameset

Frame
- Surly Straggler, 100% Surly proprietary 4130 CroMoly tubing. ED Coated. TIG-welded. Double-butted main triangle
Fork
- Surly Straggler, 4130 CroMoly, disc only, lugged and brazed. Sloping crown with threaded eylets, tapered and butted curved blades with mid-blade rack eyelets, dual dropout eyelets

Components

Seatpost Clamp
- Surly Stainless 30.0

Frame Specs

Design Wheel/Tire Sizes
- 650b x 41mm (38–52cm sizes)
- 700c x 41mm (54–62cm sizes)
Max Tire Outer Diameter
- Frame clearance:
  - Size 46-52:
    - 26in x 50mm (w/ fenders)
    - 650b x 50mm (w/o fenders)
    - 650b x 47mm (w/ fenders)
    - 700c x 35mm (w/o fenders)
    - 700c x 32mm (w/ fenders)
  - Size 54-64:
    - 650b x 50mm (w/ fenders)
    - 700c x 50mm (w/o fenders)
    - 700c x 47mm (w/ fenders)
- Fork clearance
  - Size 46-52:
    - 26in x 50mm (w/ fenders)
    - 650b x 50mm (w/o fenders)
    - 650b x 47mm (w/ fenders)
    - 700c x 35mm (w/o fenders)
    - 700c x 32mm (w/ fenders)
  - Size 54-64:
    - 650b x 50mm (w/ fenders)
    - 700c x 50mm (w/o fenders)
    - 700c x 47mm (w/ fenders)
Frame Construction
- 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated
Fork Construction
- 4130 Chromoly, Natch tubing, double-butted tapered fork blades, brazed lugs, ED coated
Rear Spacing
- 10 x 135mm, Forward-exiting horizontal
Rear Brake (Rotor)
- Disc - 51mm I.S. (160mm max rotor)
Front Brake (Rotor)
- Disc - 51mm I.S. (160mm max rotor)
Headset - Upper
- EC34/28.6
Headset - Lower
- EC34/30
Front Spacing
- 10 x 100mm
Crankset (Max Ring)
- 1x (Road): 50T
- 2x (Road): 39/53T

Rider Height (Inches)	Rider Height (Metric)	Frame Size
5'0"-5'5"	152-165cm	XS
5'4"-5'8"	162-173cm	Small
5'7"-6'0"	170-183cm	Medium
5'11"-6'3"	180-190cm	Large
6'2"-6'6"	188-198cm	XL
6'5"-6'8"	196-205cm	XXL
