Description
Nothing More is Needed. Nothing Less Will Do.

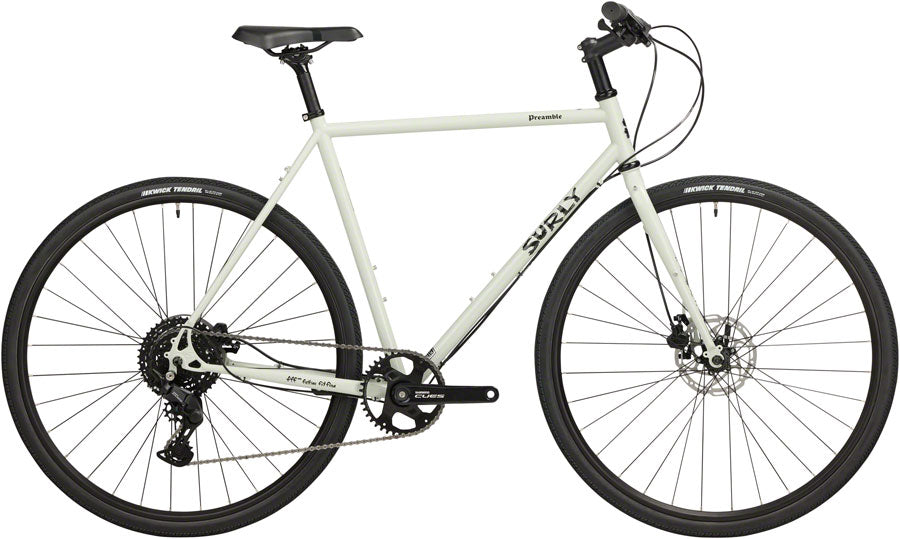

The challenge was thus: Build a serious steel bike and give it only the attributes that matter most. Make it quick and comfortable on pavement, as well as confident and compliant on degraded surfaces. What the Enginerds put forth is Preamble, a pavement and gravel utility worker that proves you don’t need to cut corners or clip coupons to make a more affordable steel bike. You just need to keep shit simple.
Preamble can run racks and fenders and carry a couple water bottles. Surly was raised on stealing basic cable, after all. Smooth and efficient on asphalt, Preamble’s double-butted main triangle provides a resplendent ride feel and withstands abuse from life’s inevitable potholes. Make it your own with flat bars, drop bars, a basket, or bags. On the road to steel euphoria, Preamble is the gateway drug.
- Let facts be submitted to a candid world: Offered in flat-bar and drop-bar configurations
- Easy T-Shirt sizing to fit nearly every rider (XS,S,M,L,XL)
- Sloping top tubes on XS and Small frames for improved standover and comfort
- To offer the best rider experience for every frame size, XS and S frames get 650b wheelsets while M–XL get 700c
- Custom-cast single-position vertical dropout
Frameset
-
Frame
- Surly Preamble, 100% Chromoly steel tubing, E.D. coated
-
Fork
- Surly Preamble, 100% Chromoly steel fork, Disc Only
Components
-
Headset
- VP 1-1/8" Threadless
-
Seatpost Clamp
- Surly Stainless 30.0
-
Seatpost
- Kalloy 27.2 x 300mm: 0 offset (XS-MD), 12mm offset (LG-XL)
-
Stem
- Kalloy 31.8
-
Grips/Bar Tape
- Velo Black Rubber
-
Saddle
- Selle Italia X Base Boost
-
Handlebar
- Kalloy 6061 PGW, 9-degree backsweep, 35mm rise
Drivetrain
-
Front Derailleur
- N/A
-
Rear Derailleur
- Shimano Cues U4000 GS
-
Cassette
- Shimano Linkglide LG300, 11-41t 9sp
-
Chain
- Shimano LG500
-
Crankset
- Shimano CUES U4000-1, 40t
-
Shifter
- Shimano CUES U4000, 1x9
-
Brake Levers
- Tektro Hydraulic M275/276
-
Brake Calipers
- Tektro Hydraulic M275/276
-
Bottom Bracket
- Shimano Square Taper BB-UN101
-
Rotors
- Tektro Centerlock, 160mm Front/Rear
Wheels
-
Front Tire
- XS-SM: MSW Hybrid 650b x 35mm
- MD-XL: MSW Hybrid 700c x 35mm
-
Rear Tire
- XS-SM: MSW Hybrid 650b x 35mm
- MD-XL: MSW Hybrid 700c x 35mm
-
Front Hub
- Shimano HB-MT200, 32h, QR x 100mm, CenterLock
-
Rear Hub
- Shimano FH-MT200-B ,32h, QR x 141mm, CenterLock
-
Spoke
- 14G Black
-
Rim
- Shining DB-21
Surly Bikes Sizing Charts
Surly General Size Chart
| Rider Height (Inches) | Rider Height (Metric) | Frame Size |
|---|---|---|
| 5'0"-5'5" | 152-165cm | XS |
| 5'4"-5'8" | 162-173cm | Small |
| 5'7"-6'0" | 170-183cm | Medium |
| 5'11"-6'3" | 180-190cm | Large |
| 6'2"-6'6" | 188-198cm | XL |
| 6'5"-6'8" | 196-205cm | XXL |
