A Versatile All-Season Commuter Bike

If you’re like us, your bike needs likely change by the day, week, month or year. Quite the adaptable little beast, Ogre can get you to your job during the week, then way out of town on the weekend. It’s not sluggish on pavement or gravel and can also hold its own on singletrack.

Ogre is designed to be the ultimate steel utility vehicle. It relishes in those “take-the-long-way-home-and-find-some-beverages-along-the-way” sort of commutes. Snow, sleet or sweltering humidity, this is an ideal year-round commuter bike. You can also haul enough crap on it that you don’t even have to go home if you don’t want to.

• All the barnacles you could ever possibly ask for including rack and fender, multiple three-pack mounts and mid-blade.

• Gnot-Boost rear spacing with Rohloff torque arm slot and Bill/Ted trailer mount

• Clearance for 29” x 2.5” or 27.5" x 2.8" tires with fenders

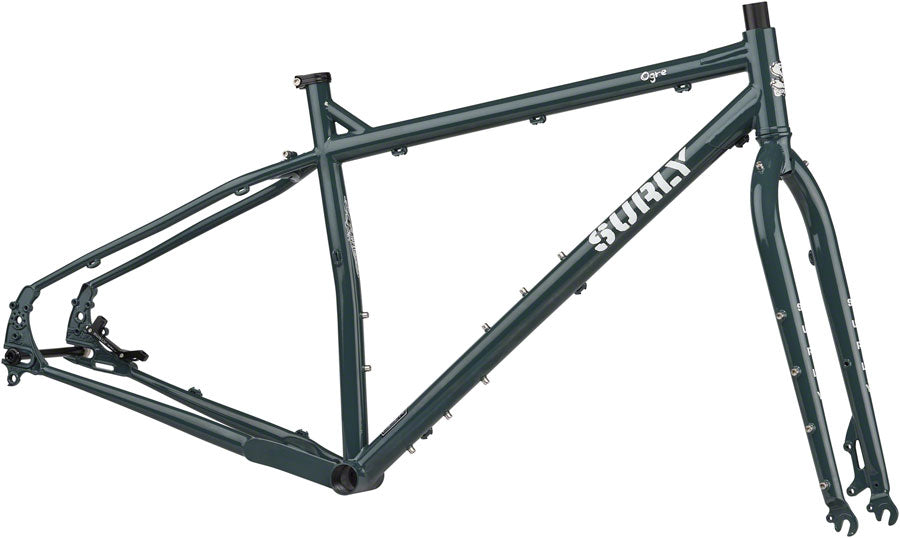

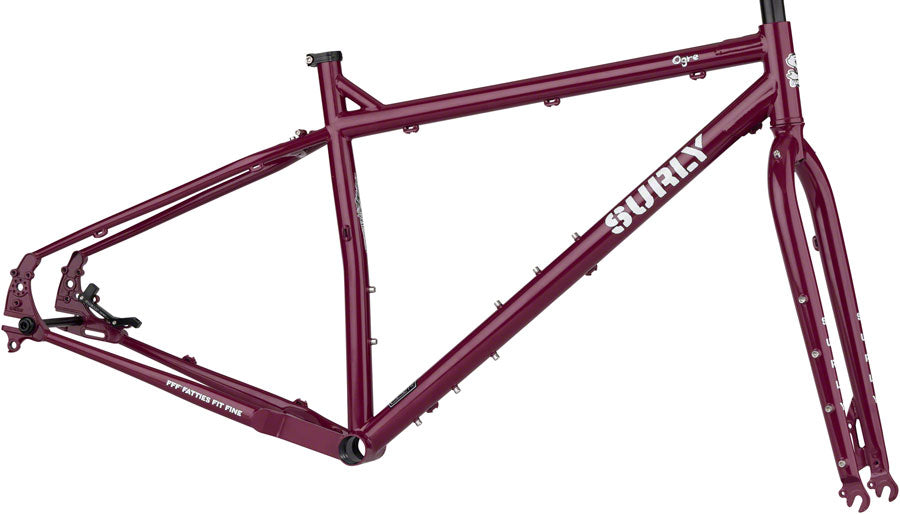

Frameset

• Frame
  • 100% Surly Chromoly Steel, Natch tubing, double-butted main triangle, TIG welded, E.D. coated
• Fork
  • 100% Surly Chromoly Steel, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated

Components

• Seatpost Clamp
  • Surly Stainless 30.0

Frame Specs

• Design Wheel/Tire Sizes
  • 29 x 2.5"

• Alternate Wheel/Tire Sizes

  • 27.5 x 3.0"

• Frame Construction
  • 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated

• Fork Construction
  • 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated

• Rear Spacing
  • "Gnot-Boost" 145mm

• Rear Brake (Rotor)
  • Disc - 51mm I.S. (160mm max rotor)

• Front Brake (Rotor)
  • Disc - 51mm I.S. (203mm max rotor)

• Headset - Upper
  • EC34/28.6
• Headset - Lower
  • EC34/30
• Front Spacing
  • 10 x 100mm

• Crankset (Max Ring)
  • 1x (Mtn): 42T
  • 2x (Mtn): 34/46T
  • 3x (Mtn): 24/36/48T
  • 1x (Boost): 46T
  • 2x (Boost): 42/48T
