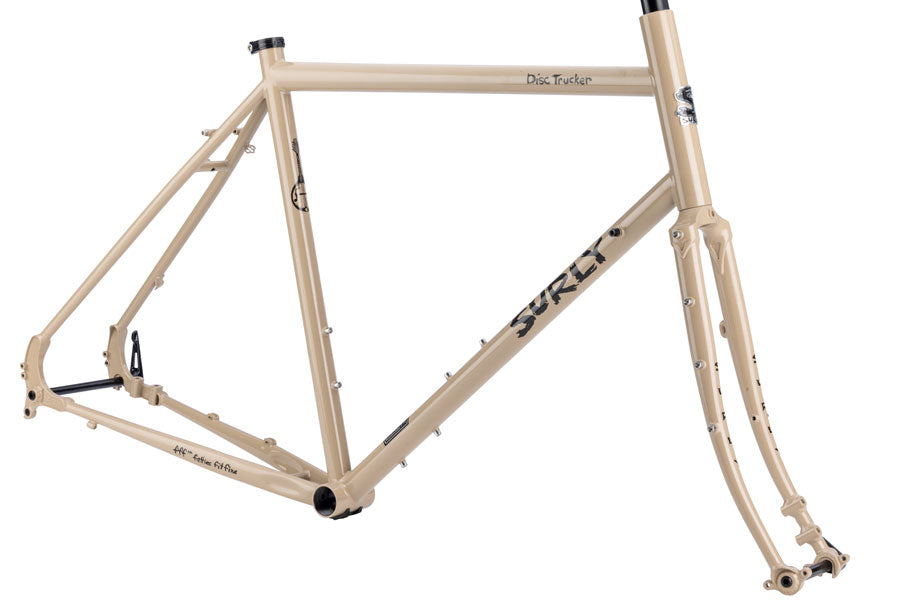

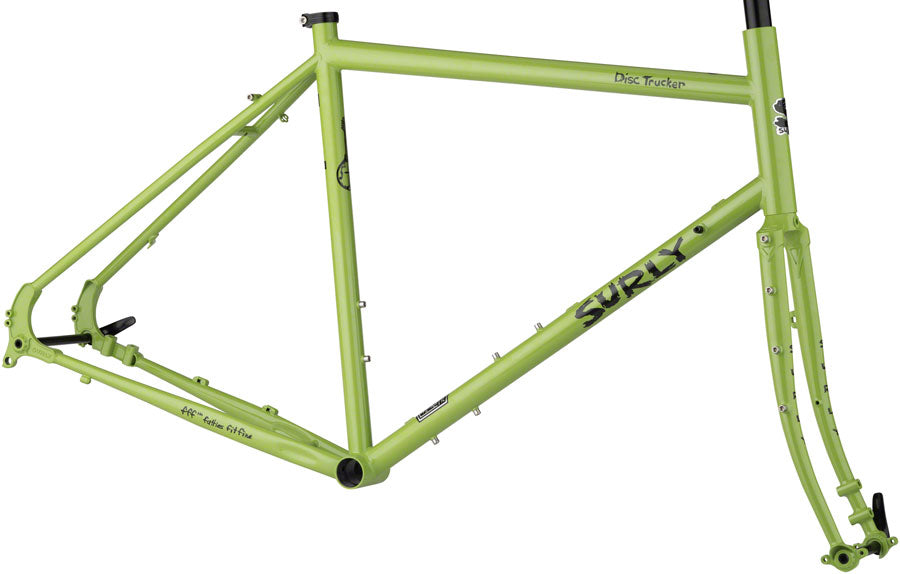

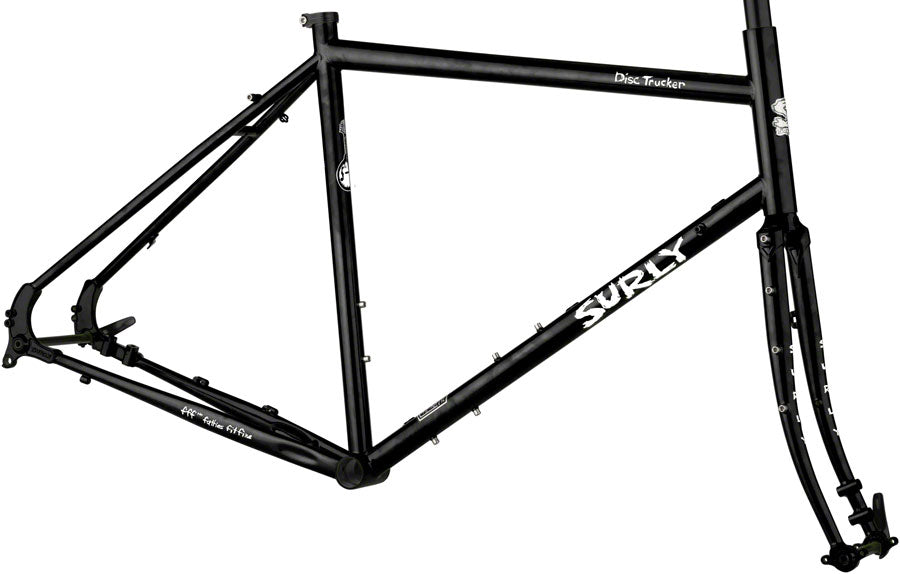

Surly Disc Trucker Frameset

From Surly
SKU: FM3417
Regular price $1,499.00
Size
Colour

Stock Locations:

St. Laurent:

Hintonburg:

Warehouse:

Special Order:

Description

Why Disc Brake Touring Bikes?

Disc Trucker enjoys the same reputation as Long Haul Trucker: It’s one of the best-riding and most value-packed drop bar touring bikes out there. Sometimes, however, a combination of load, climate, and terrain demands a bit more braking performance than a standard rim-brake LHT can provide.

That’s where the newly redesigned Disc Trucker comes in. Packing reliable stopping power and a horde of useful mounting points, shortened chainstays up the Disc Trucker’s stiffness and maneuverability around corners. Add in improved fit and handling under load, plus captured thru-axles for tool-free removal and installation, and the Disc Trucker is ready to help you meet — or dodge — your daily obligations.

  • Dynamo routing on the fork, plus three-pack mounts on the blade and every braze-on you’ll ever need for racks, fenders, water bottle cages, and more
  • 12mm thru-axles for a stiffer feel and increased stability when fully loaded
  • Shortened seat tube and slightly sloped top tube for improved stand-over clearance, plus increased stack height for a more upright and comfortable riding position on those long hauls
  • Spec’d with the Truck Stop Bar and tubeless ExtraTerrestrial tires for dependable handling and traction
  • Flat-mount disc brakes
  • Frame sizes 42–54cm are available with 26” diameter wheels, while frame sizes 56–64cm are available with 700c diameter wheels
  • Clearance for 26” x 2.1” tires with or without fenders, or 700c x 47mm with or without fenders

Frameset

  • Frame
    • Surly Disc Trucker: 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated
  • Fork
    • Surly Disc Trucker: 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated

Components

  • Seatpost Clamp
    • Surly Stainless 30.0mm

Frame Specs

  • Design Wheel/Tire Sizes
    • 26 x 2.0" (42–54cm sizes)
    • 700c x 47mm (56–64cm sizes)
  • Frame Construction
    • 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, E.D. coated
  • Fork Construction
    • 4130 Chromoly, Natch tubing, double-butted tapered fork blades, brazed lugs, E.D. coated
  • Rigid Fork Length
    • 26": 376mm (42-54cm)
    • 700c: 390mm (56-64cm)
  • Rear Spacing
    • 12x142 (Axle included)
  • Rear Brake (Rotor)
    • Disc - Flat Mount 140/160 (180mm max) – 25mm thick mount
  • Front Brake (Rotor)
    • Disc - Flat Mount 140/160 (180mm max) – 25mm thick mount
  • Headset - Upper
    • EC34/28.6
  • Headset - Lower
    • EC34/30
  • Front Spacing
    • 12x100 (Axle included)
  • Crankset (Max Ring)
    • 1x (Road): 47T
    • 2x (Road): 34/50T
    • 3x (Road): 33/47/56T
