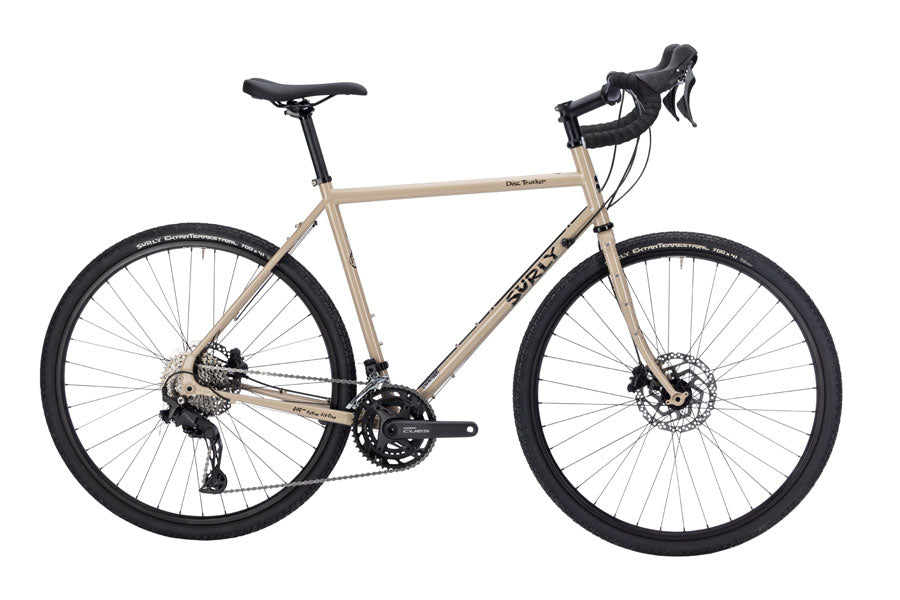

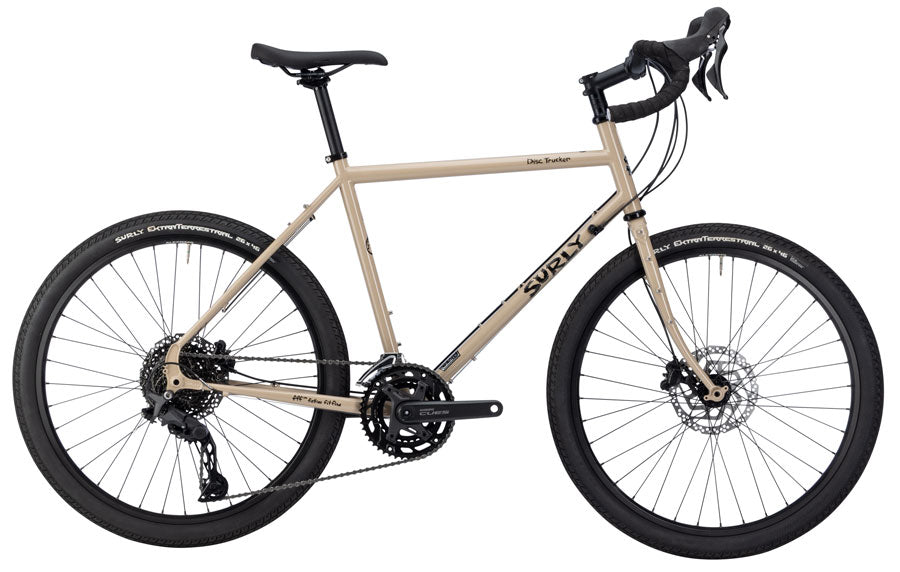

Surly Disc Trucker - CUES U6000
Stock Locations:
St. Laurent:
Hintonburg:
Warehouse:
Special Order:
Description
Why Disc Brake Touring Bikes?
Disc Trucker enjoys the same reputation as Long Haul Trucker: It’s one of the best-riding and most value-packed drop bar touring bikes out there. Sometimes, however, a combination of load, climate, and terrain demands a bit more braking performance than a standard rim-brake LHT can provide.
That’s where the newly redesigned Disc Trucker comes in. Packing reliable stopping power and a horde of useful mounting points, shortened chainstays up the Disc Trucker’s stiffness and maneuverability around corners. Add in improved fit and handling under load, plus captured thru-axles for tool-free removal and installation, and the Disc Trucker is ready to help you meet — or dodge — your daily obligations.
- Dynamo routing on the fork, plus three-pack mounts on the blade and every braze-on you’ll ever need for racks, fenders, water bottle cages, and more
- 12mm thru-axles for a stiffer feel and increased stability when fully loaded
- Shortened seat tube and slightly sloped top tube for improved stand-over clearance, plus increased stack height for a more upright and comfortable riding position on those long hauls
- Spec’d with the Truck Stop Bar and tubeless ExtraTerrestrial tires for dependable handling and traction
- Flat-mount disc brakes
- Frame sizes 42–54cm are available with 26” diameter wheels, while frame sizes 56–64cm are available with 700c diameter wheels
- Clearance for 26” x 2.1” tires with or without fenders, or 700c x 47mm with or without fenders
Frameset
-
Frame
- Surly Disc Trucker: 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated
-
Fork
- Surly Disc Trucker: 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated
Components
-
Headset
- FSA Orbit MX
-
Seatpost Clamp
- Surly Stainless 30.0mm
-
Seatpost
- Promax 27.2 x 350mm
-
Stem
- Promax DA-296, 31.8mm
-
Grips/Bar Tape
- Velo Black Cork
-
Saddle
- WTB Volt Wide OR WTB Rocket Medium Fusion
-
Handlebar
- Surly Truckstop
Drivetrain
-
Front Derailleur
- Shimano CUES U6010
-
Rear Derailleur
- Shimano CUES U6020 SGS
-
Cassette
- Shimano CUES LG400, 11-39t, 10-speed
-
Chain
- Shimano LG500
-
Crankset
- Shimano CUES U6000, 46/30T
-
Shifter
- Shimano CUES U6030
-
Brake Levers
- Shimano CUES U6030
-
Brake Calipers
- Shimano CUES U6030
-
Bottom Bracket
- Shimano UR400 BSA
-
Rotors
- Shimano RT26 180/180, 6-Bolt
Wheels
-
Front Tire
- Surly ExtraTerrestrial 26x46mm, 60tpi (42-54cm)
- Surly ExtraTerrestrial 700x41mm, 60tpi (56-64cm)
-
Rear Tire
- Surly ExtraTerrestrial 26x46mm, 60tpi(42-54cm)
- Surly ExtraTerrestrial 700x41mm, 60tpi (56-64cm)
-
Front Hub
- Novatec 12x100, 6 bolt, 36H
-
Rear Hub
- Novatec 12x142, 6 bolt, 36H
-
Rim
- Alex Adventurer 2, 36h
Surly Bikes Sizing Charts
Surly General Size Chart
| Rider Height (Inches) | Rider Height (Metric) | Frame Size |
|---|---|---|
| 5'0"-5'5" | 152-165cm | XS |
| 5'4"-5'8" | 162-173cm | Small |
| 5'7"-6'0" | 170-183cm | Medium |
| 5'11"-6'3" | 180-190cm | Large |
| 6'2"-6'6" | 188-198cm | XL |
| 6'5"-6'8" | 196-205cm | XXL |
