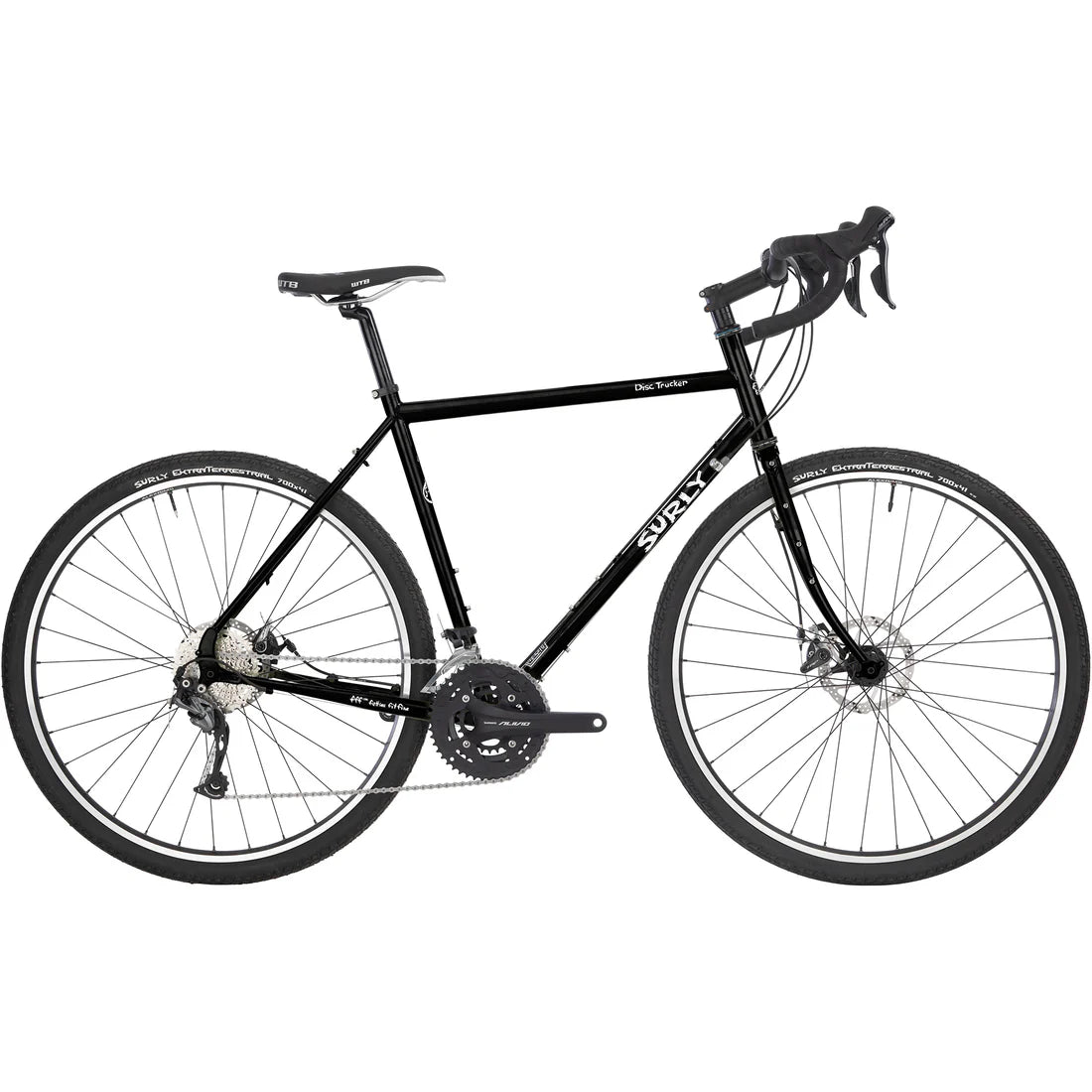

Surly Disc Trucker 700c - Hi-Viz Black
Stock Locations:
St. Laurent:
Hintonburg:
Warehouse:
Special Order:
Description
Why Disc Brake Touring Bikes?
Disc Trucker enjoys the same reputation as Long Haul Trucker: It’s one of the best-riding and most value-packed drop bar touring bikes out there. Sometimes, however, a combination of load, climate, and terrain demands a bit more braking performance than a standard rim-brake LHT can provide.
That’s where the newly redesigned Disc Trucker comes in. Packing reliable stopping power and a horde of useful mounting points, shortened chainstays up the Disc Trucker’s stiffness and maneuverability around corners. Add in improved fit and handling under load, plus captured thru-axles for tool-free removal and installation, and the Disc Trucker is ready to help you meet — or dodge — your daily obligations.
- Dynamo routing on the fork, plus three-pack mounts on the blade and every braze-on you’ll ever need for racks, fenders, water bottle cages, and more
- 12mm thru-axles for a stiffer feel and increased stability when fully loaded
- Shortened seat tube and slightly sloped top tube for improved stand-over clearance, plus increased stack height for a more upright and comfortable riding position on those long hauls
- Spec’d with the Truck Stop Bar and tubeless ExtraTerrestrial tires for dependable handling and traction
- Flat-mount disc brakes
- Frame sizes 42–56cm are available with 26” diameter wheels, while frame sizes 56–64cm are available with 700c diameter wheels
- Clearance for 26” x 2.1” tires with or without fenders, or 700c x 47mm with or without fenders
Build Kit:
Frameset
| Frame | Surly Disc Trucker – 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated |
| Fork | Surly Disc Trucker – 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated |
Components
| Headset | Cane Creek 40 |
| Seatpost Clamp | Surly Stainless, 30.0 mm |
| Seatpost | ProMax 27.2 × 350 mm, non-offset (42–50), offset (52–64) |
| Stem | ProMax 31.8 mm, 4-bolt |
| Bar Tape | Black Cork |
| Saddle | WTB Volt Sport |
| Handlebar | Surly Truckstop Bar |
Drivetrain
| Front Derailleur | Shimano Sora R3030 |
| Rear Derailleur | Shimano Alivio M4000 SGS |
| Shifter | Shimano Sora 3×9 |
| Cassette | Shimano Alivio, 11–34T, 9-speed |
| Chain | KMC X9 |
| Crankset | Shimano Alivio, 48/36/26T |
| Bottom Bracket | Shimano SM-BB52 |
Brakes
| Brake Levers | Shimano Sora |
| Brake Calipers | TRP Spyre C |
| Rotors | TRP 160 mm front and rear |
Wheels & Tires
| Front Tire | Surly ExtraTerrestrial, 700 × 41 |
| Rear Tire | Surly ExtraTerrestrial, 700 × 41 |
| Front Hub | Novatec, 12 × 100 mm, 6-bolt, 36H |
| Rear Hub | Novatec, 12 × 142 mm, 6-bolt, 36H |
| Rims | Alex Adventurer 2 |
Surly Bikes Sizing Charts
Surly General Size Chart
| Rider Height (Inches) | Rider Height (Metric) | Frame Size |
|---|---|---|
| 5'0"-5'5" | 152-165cm | XS |
| 5'4"-5'8" | 162-173cm | Small |
| 5'7"-6'0" | 170-183cm | Medium |
| 5'11"-6'3" | 180-190cm | Large |
| 6'2"-6'6" | 188-198cm | XL |
| 6'5"-6'8" | 196-205cm | XXL |
