All Road Touring Bike for Any Destination

Bridge Club is for those multi-surface outings — planned or unplanned. We've all run out the clock on a dirt tour and had to add in some paved shortcuts. Conversely, when you’re feeling a little zesty on your next road tour, Bridge Club is ready for reroutes through the woods.

Some people hear "bike touring" and immediately think of long-forgotten stretches of highway, small-town oddities, and roadside attractions. Some instantly recall desolate stretches of desert dirt roads or lush green forest trails. With Bridge Club, you can have your dessert and eat it too!

• Ultra-focused on simplicity, it only has the barnacles that matter most to the discerning bike tourist

• Run racks and panniers, framebags, or all of the above

• Disc brake-specific, single position vertical rear dropout makes it less intimidating than other bikes in the category

• Clearance for 700 x 47mm tires (with or without fenders), 27.5 x 2.8” tires (27.5 x 2.6” with fenders), and 26 x 3” tires (26 x 2.8” with fenders)

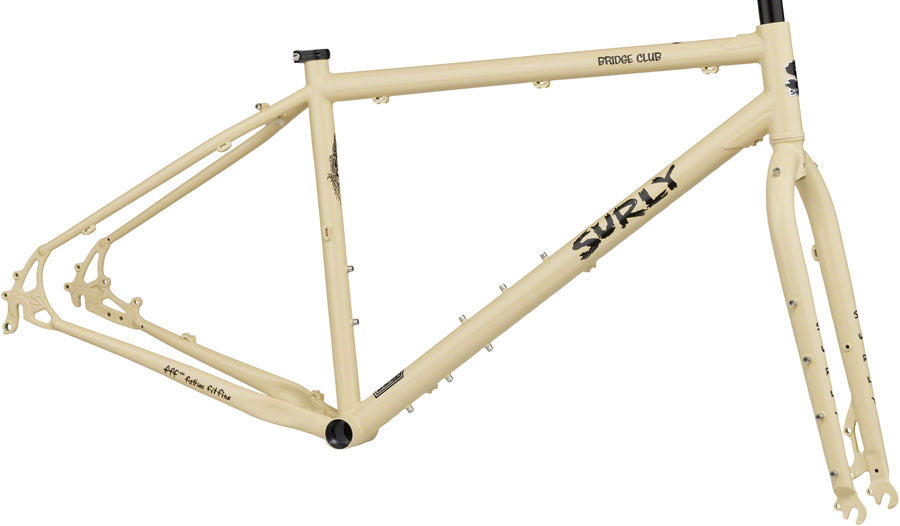

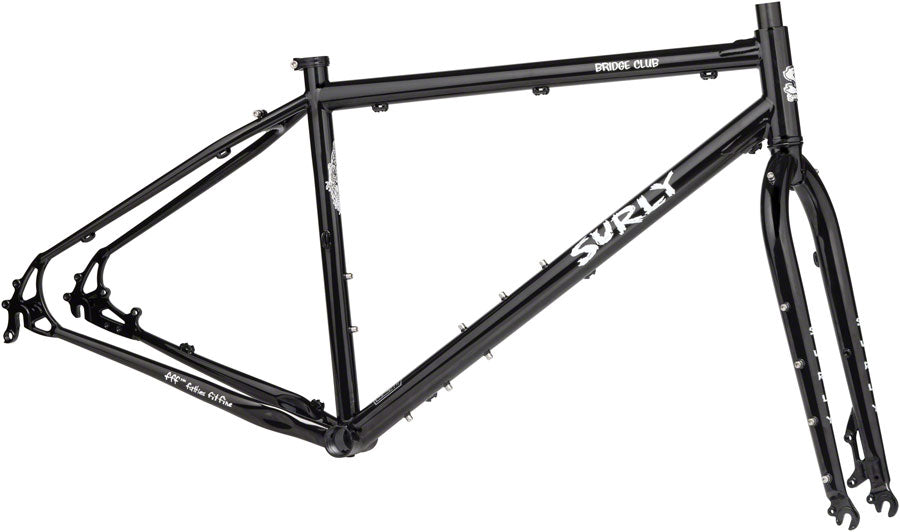

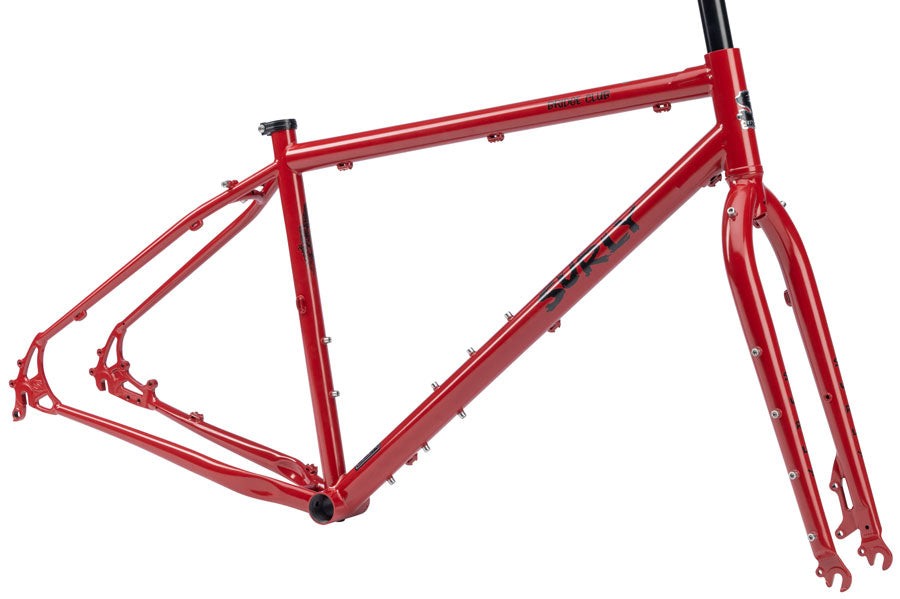

Frameset

• Frame

  • Surly Bridge Club - 100% Surly Chromoly steel, Natch tubing, double-butted main triangle, TIG welded, E.D. coated

• Fork

  • Surly Cocktail Fork - 100% Surly Chromoly steel, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated

Components

• Seatpost Clamp
  • Surly Stainless 30.0

Frame Specs

• Design Wheel/Tire Sizes
  • 27.5 x 2.4"

• Alternate Wheel/Tire Sizes

  • Frame clearance:
    • 26 x 3.0" (26 x 2.8" with fenders)
    • 27.5 x 2.8" (27.5 x 2.6" with fenders)
    • 700c x 47 with or without fenders
  • Fork clearance:
    • 26 x 3.0" (26 x 2.8" with fenders)
    • 27.5 x 2.8" (27.5 x 2.6" with fenders)
    • 700c x 47 with or without fenders

• Frame Construction
  • 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, E.D. coated

• Fork Construction
  • 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated

• Rear Spacing
  • "Gnot-Boost" 138mm

• Rear Brake (Rotor)
  • Disc - 51mm I.S. (180mm max rotor)

• Front Brake (Rotor)
  • Disc - 51mm I.S. (203mm max rotor)

• Headset - Upper
  • EC34/28.6
• Headset - Lower
  • EC34/30
• Front Spacing
  • 10 x 100mm

• Crankset (Max Ring)
  • 1x (Mtn): 34T
  • 2x (Mtn): 26/40T
  • 3x (Mtn): 22/36/44T
  • 1x (Boost): 40T
  • 2x (Boost): 32/42T
