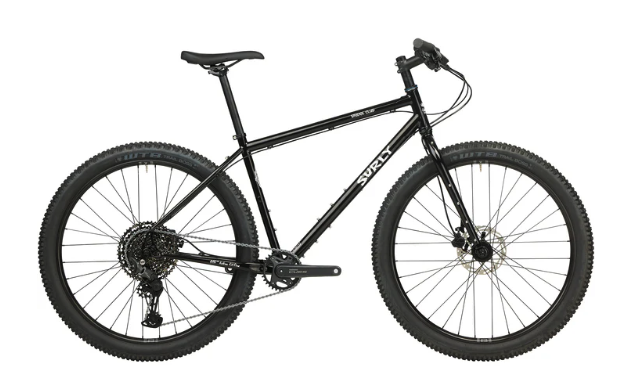

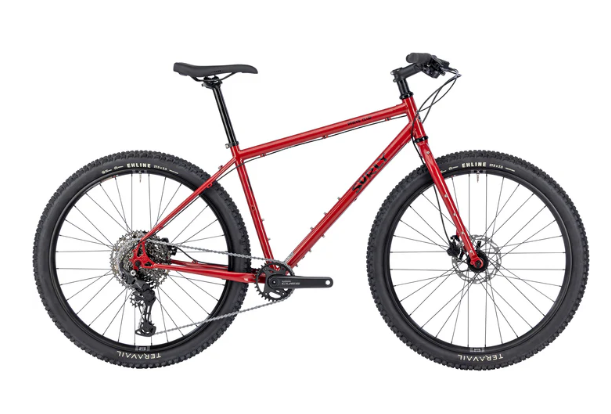

Surly Bridge Club 27.5"
Stock Locations:
St. Laurent:
Hintonburg:
Warehouse:
Special Order:
Description
All Road Touring Bike for Any Destination
Bridge Club is for those multi-surface outings — planned or unplanned. We've all run out the clock on a dirt tour and had to add in some paved shortcuts. Conversely, when you’re feeling a little zesty on your next road tour, Bridge Club is ready for reroutes through the woods.
Some people hear "bike touring" and immediately think of long-forgotten stretches of highway, small-town oddities, and roadside attractions. Some instantly recall desolate stretches of desert dirt roads or lush green forest trails. With Bridge Club, you can have your dessert and eat it too!
- Ultra-focused on simplicity, it only has the barnacles that matter most to the discerning bike tourist
- Run racks and panniers, framebags, or all of the above
- Disc brake-specific, single position vertical rear dropout makes it less intimidating than other bikes in the category
- Clearance for 700 x 47mm tires (with or without fenders), 27.5 x 2.8” tires (27.5 x 2.6” with fenders), and 26 x 3” tires (26 x 2.8” with fenders)
Frameset
| Frame | Surly Bridge Club – 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated |
| Fork | Surly Cocktail Fork – 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated |
Components
| Headset | Cane Creek 40 |
| Seatpost Clamp | Surly Stainless 30.0 |
| Seatpost | Promax 27.2 × 350 mm, 12 mm offset |
| Stem | Promax DA-296, 31.8 mm |
| Grips | Velo Black |
| Saddle | WTB Volt |
| Handlebar | Salsa Bend |
Drivetrain
| Front Derailleur | N/A (1× drivetrain) |
| Rear Derailleur | Shimano CUES U6000 GS |
| Shifter | Shimano CUES U6000 |
| Cassette | Shimano CUES LG400, 11–50T, 11-speed |
| Chain | KMC eGlide EPT |
| Crankset | Shimano CUES U6000, 32T |
| Bottom Bracket | Shimano BB-MT501 |
Brakes
| Brake Levers | Tektro HD-M275 / HD-M276 hydraulic disc |
| Rotors | Tektro 160 mm / 160 mm, 6-bolt |
Wheels & Tires
| Front Tire | WTB Trail Boss, 27.5 × 2.4", 27 TPI, wire bead |
| Rear Tire | WTB Trail Boss, 27.5 × 2.4", 27 TPI, wire bead |
| Front Hub | Novatec, QR 100 mm, 6-bolt, 32H |
| Rear Hub | Novatec, QR 141 mm, 6-bolt, 32H |
| Spokes | 14G Black |
| Rims | WTB ST i30 TCS 2.0, 27.5", 32H |
Surly Bikes Sizing Charts
Surly General Size Chart
| Rider Height (Inches) | Rider Height (Metric) | Frame Size |
|---|---|---|
| 5'0"-5'5" | 152-165cm | XS |
| 5'4"-5'8" | 162-173cm | Small |
| 5'7"-6'0" | 170-183cm | Medium |
| 5'11"-6'3" | 180-190cm | Large |
| 6'2"-6'6" | 188-198cm | XL |
| 6'5"-6'8" | 196-205cm | XXL |
