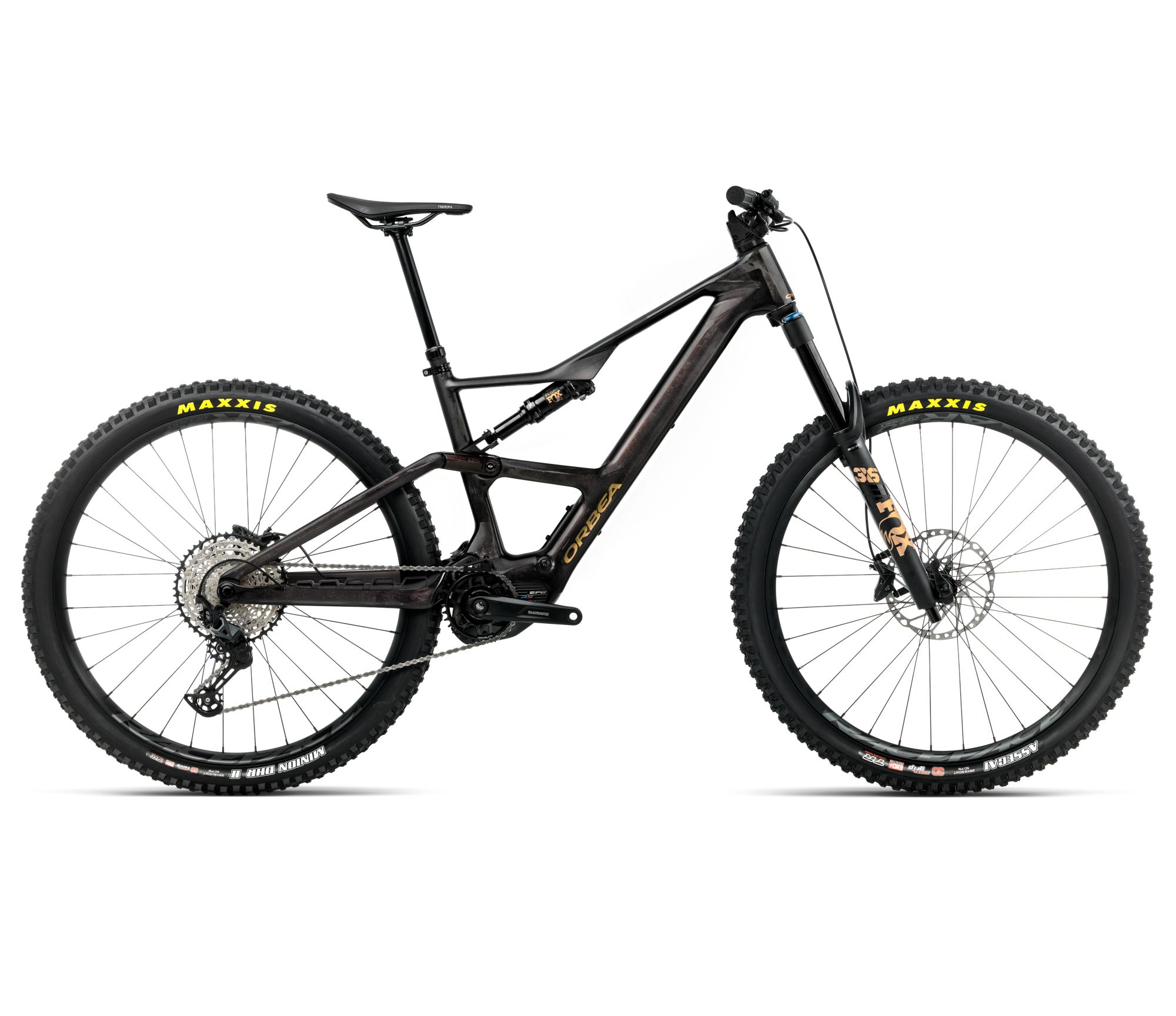

Orbea Rise LT M20
From Orbea
SKU:
Regular price
$9,699.00
More stock coming soon
Stock Locations:
St. Laurent:
Hintonburg:
Warehouse:
Special Order:
Description
It's all about balance. Handling this good is only possible when you consider power and range together. RS tuned assistance means more range from a smaller, lighter battery, which means lower weight and better handling
The Trail Shredder's eBike
Rise LT offers trail shredders a more aggressive geometry and extra travel for big adventures on rugged trails.
Light and Agile
Rise is designed to feel light and agile on the trail. Not only through lower weight, but through a carefully balanced approach. Suspension behaviour, frame stiffness, and geometry are tuned to deliver handling that feels capable, playful, and natural.
Power Where It Counts
Rise is built around a different idea of performance. One defined by how a bike feels on the trail, not by numbers alone. Instead of choosing a standard motor, we designed a complete system from the start, one that balances power, torque, and weight for the ultimate trail experience.
Control At Your Fingertips
Our RS Control System gives you more control, with less effort. A single, compact remote brings motor control, ride information and smart dropper functions together, so that every action feels immediate and natural. Stay focussed on the trail, not the technology.
Build Kit:
Frame: Orbea Rise LT OMR 2025, 150mm travel, 29" wheels, Concentric Boost 12x148
Fork: Fox 36 Float Performance 160, Grip 3-Pos, QR15x110
Rear Shock: Fox Float Performance 2-Pos Evol LV custom tune 210x55mm
Wheels: Race Face AR 30c Tubeless Ready
Tires: Maxxis Assegai 2.50" 60TPI 3CG/EXO+/TR MaxxGrip
Maxxis Minion DHR II 2.40" WT FB 120 TPI 3C MaxxTerra Exo+ TR
Crankset: Shimano Steps EM600
Chainrings: e*thirteen Helix Core e*spec Direct Mount 32T 55mm ChainLine
Shifters: Shimano SLX M7100 I-Spec EV
Rear Derailleur: Shimano SLX M7100 SGS Shadow Plus
Cassette: Shimano CS-M7100 10-51t 12-Speed
Chain: Shimano M6100
Brakes: Shimano M6120 Hydraulic Disc
Rotors: Shimano RT64 Rotors 203mm front / 180mm rear
Handlebars: OC Mountain Control MC31, Rise20, Width 800
Tape/Grips: OC Lock On
Stem: OC Mountain Control MC20, 0º
Headset: Alloy 1-1/2", Black Oxidated Bearing
Seatpost: OC Mountain Control MC22, 31.6mm, Dropper
Saddle: Fizik Terra Ridon X5 145mm
Motor: Shimano EP801 RS Gen2 MC
Battery: Orbea Internal 420Wh
Fork: Fox 36 Float Performance 160, Grip 3-Pos, QR15x110
Rear Shock: Fox Float Performance 2-Pos Evol LV custom tune 210x55mm
Wheels: Race Face AR 30c Tubeless Ready
Tires: Maxxis Assegai 2.50" 60TPI 3CG/EXO+/TR MaxxGrip
Maxxis Minion DHR II 2.40" WT FB 120 TPI 3C MaxxTerra Exo+ TR
Crankset: Shimano Steps EM600
Chainrings: e*thirteen Helix Core e*spec Direct Mount 32T 55mm ChainLine
Shifters: Shimano SLX M7100 I-Spec EV
Rear Derailleur: Shimano SLX M7100 SGS Shadow Plus
Cassette: Shimano CS-M7100 10-51t 12-Speed
Chain: Shimano M6100
Brakes: Shimano M6120 Hydraulic Disc
Rotors: Shimano RT64 Rotors 203mm front / 180mm rear
Handlebars: OC Mountain Control MC31, Rise20, Width 800
Tape/Grips: OC Lock On
Stem: OC Mountain Control MC20, 0º
Headset: Alloy 1-1/2", Black Oxidated Bearing
Seatpost: OC Mountain Control MC22, 31.6mm, Dropper
Saddle: Fizik Terra Ridon X5 145mm
Motor: Shimano EP801 RS Gen2 MC
Battery: Orbea Internal 420Wh
