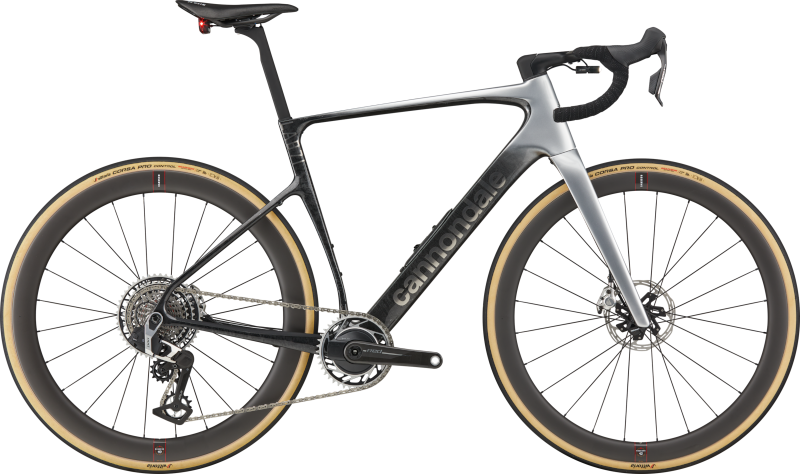

Road Reimagined

Go long, go short, go fast. This is WorldTour performance for real world rides.

What it's for

Comfortable high-performance road riding, long distance missions, fast group rides

Highlights

• LAB71 Hi-MOD carbon construction - Super light. Responsive. Beautiful.

• SmartSense Gen 2 - Enhanced visibility and awareness from the sleekly integrated system of lights and radar.

• SystemBar R-One - Our low drag, full carbon integrated bar/stem co-developed with MomoDesign

• SRAM's top-end road group - RED AXS XPLR - wide-range 1X wireless electronic shifting with a CeramicSpeed BB

• Reserve 42|49 Turbulent Aero carbon wheels with DT Swiss 180 Hubs - Top flight aero performance for all-day rides

• Fizik Vento Argo 00 Carbon saddle - Ultra lightweight comfort


Specs

Frameset

• Frame
  • LAB71 Synapse Hi-MOD Carbon, Proportional Response construction, integrated cable routing, downtube Stashport, 12x142 thru-axle, UDH, BSA 68mm threaded BB, flat mount disc, integrated seat binder, SmartSense Gen 2.0 equipped, fender mounts

• Fork
  • Lab71 Synapse Hi-MOD Carbon, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/5" Delta steerer, 55mm offset, fender mounts

• Headset
  • Integrated, 1-1/8" - 1-1/2"


Drivetrain

• Rear Derailleur
  • SRAM RED XPLR AXS, 13-speed
• Shifters
  • SRAM RED AXS, 13-speed

• Chain
  • SRAM RED, 13-speed

• Crank
  • SRAM RED AXS Power Meter, 44T: 165mm (44cm), 170mm (48-51cm), 172.5 (54-56cm), 175mm (58-61)

• Rear Cogs
  • SRAM XPLR XG-1391, 10-46, 13-speed

• Bottom Bracket
  • CeramicSpeed BSA for SRAM, Coated Version


Brakes

• Brakes
  • RED AXS hydraulic disc Brake, 160/160mm Paceline X centerlock rotors

• Brake Levers
  • SRAM RED AXS hydraulic disc


Wheels

• Rims
  • Reserve 42 | 49 Turbulent Aero, 24h, tubeless ready

• Spokes
  • Sapim CX-Ray Aero straight pull

• Tire Size
  • 32
• Wheel Size
  • 700
• Hubs
  • (F) DT Swiss 180, 12x100mm centerlock / (R) DT Swiss 180, 12x142mm centerlock

• Tires
  • Vittoria Corsa PRO Control, 700x32c, tubeless ready


Components

• Handlebar
  • Cannondale SystemBar R-One - low drag, full carbon integrated bar/stem, internal routing: 90x380mm (44m), 90x400mm (48-51cm), 100x420mm (54-56cm), 110x420mm (58-61cm)

• Stem
  • Cannondale SystemBar R-One - low drag, full carbon integrated bar/stem, internal routing

• Grips
  • Fizik Tempo Bondcush Soft, 3mm

• Saddle
  • Fizik Vento Argo 00 Carbon, 140mm

• Seatpost
  • Cannondale C1 Aero 27 Carbon, SmartSense compatible, 330mm length, 0mm offset (44-48cm), 15mm offset (51-61cm)


Extra

• Extra 1
  • SmartSense Gen 2.0 system (Bluetooth BLE and ANT+ compatible)
    • SmartSense LightSkin U1E ultra-compact 800 lumen variable output headlight
    • SmartSense Garmin Varia eRTL 615 rear-facing radar/taillight
    • SmartSense 43.2Wh removable internal battery w/integrated flashlight
    • SmartSense SRAM AXS charging cable
  • Large StashBag downtube storage bag
  • Fillmore tubeless valves
