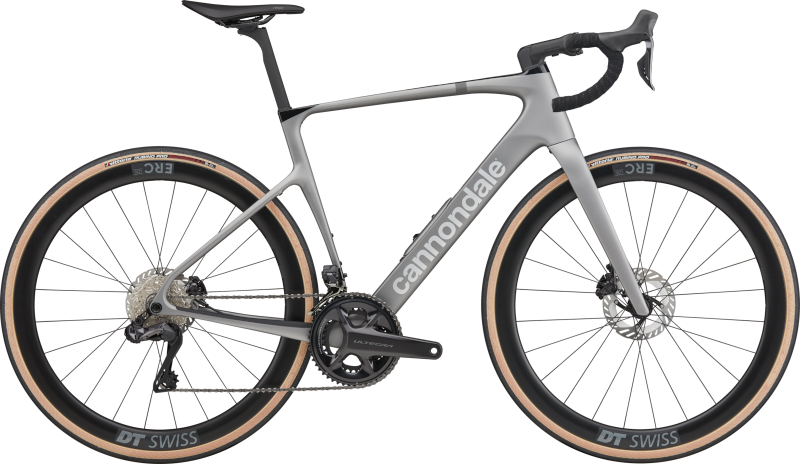

Road Reimagined

Go long, go short, go fast. This is WorldTour performance for real world rides.

What it's for

Comfortable high-performance road riding, long distance missions, fast group rides

Highlights

• Lightweight, smoothly compliant, sleekly aero Synapse carbon frameset with StashPort downtube storage

• Ultegra Di2 – Effortlessly accurate shifting from Shimano's penultimate electronic 12-speed drivetrain

• DT Swiss carbon road wheels - lightweight all-road capability

• Cannondale C1 Aero 27 Carbon seatpost - speed meets comfort

• Fizik Vento Argo R5 saddle - ergonomic comfort with pressure relieving cutout


Specs

Frameset

• Frame
  • Synapse Carbon, Proportional Response construction, integrated cable routing, downtube Stashport, 12x142 thru-axle, UDH, BSA 68mm threaded BB, flat mount disc, integrated seat binder, SmartSense Gen 2.0 compatible, fender mounts

• Fork
  • Synapse Carbon, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/5" Delta steerer, 55mm offset, fender mounts

• Headset
  • Integrated, 1-1/8" - 1-1/2"


Drivetrain

• Rear Derailleur
  • Shimano Ultegra Di2 R8150

• Front Derailleur
  • Shimano Ultegra Di2 R8150

• Shifters
  • Shimano Ultegra Di2 R8170, wireless, 12-speed

• Chain
  • Shimano Ultegra, 12-speed

• Crank
  • Shimano Ultegra R8100, 50/34: 165mm (44cm), 170mm (48-51cm), 172.5 (54-56cm), 175mm (58-61)

• Rear Cogs
  • Shimano Ultegra R8100, 11-34, 12-speed

• Bottom Bracket
  • Shimano BSA 68


Brakes

• Brakes
  • Shimano Ultegra R8170, 160/160mm CL800 rotors

• Brake Levers
  • Shimano Ultegra Di2 R8170 hydraulic disc


Wheels

• Rims
  • DT Swiss ERC 45, carbon, 24mm inner width, 45mm depth, 24h, tubeless ready

• Spokes
  • DT Swiss Competition

• Tire Size
  • 32
• Wheel Size
  • 700
• Hubs
  • (F) DT Swiss 370, 12x100mm centerlock / (R) DT Swiss 370 LN Ratchet System, 12x142mm centerlock

• Tires
  • Vittoria Rubino Pro IV, 700x32c


Components

• Handlebar
  • Vision Trimax Aero Alloy: 400mm (44-51cm), 420mm (54-61cm)

• Stem
  • Cannondale C1 Conceal, Alloy, 31.8, -6°: 80mm (44-48m), 90mm (51cm), 100mm (54-56cm), 110mm (58-61cm)

• Grips
  • Fizik Tempo Bondcush Soft, 3mm

• Saddle
  • Fizik Vento Argo X5, 140mm

• Seatpost
  • Cannondale C1 Aero 27 Carbon, SmartSense compatible, 330mm length, 0mm offset (44-48cm), 15mm offset (51-61cm)


Extra

• Extra 1
  • Large StashBag downtube storage bag
  • tubeless valves
