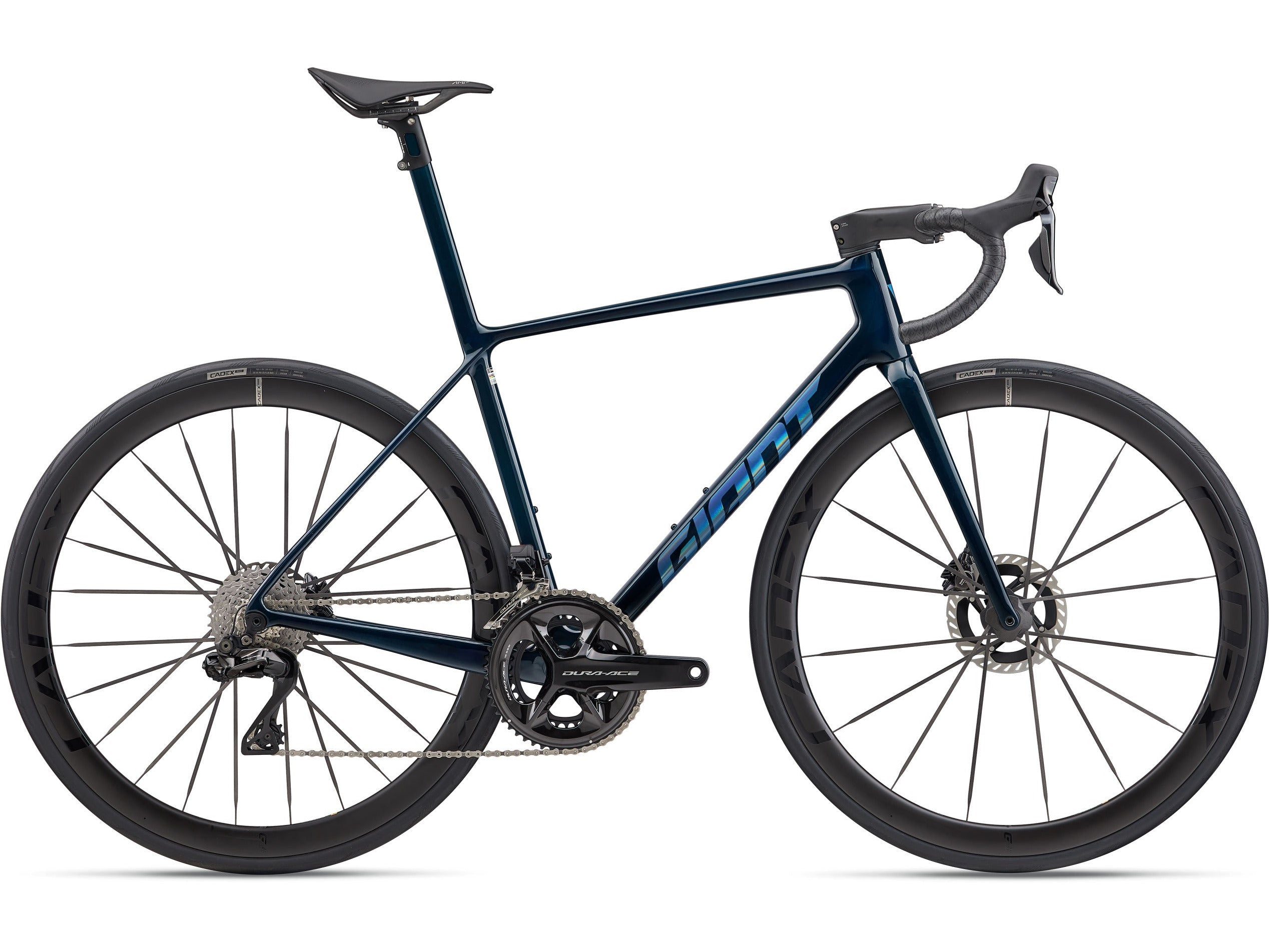

From hors categorie climbs to rollers and flats, this WorldTour level race bike is the pro’s choice for all-rounder performance. The all-new flagship TCR uses system integration and innovative construction methods to deliver a clear advantage on the road.

SYSTEM OPTIMIZATION

The frameset, wheels, cockpit and other parts are engineered, developed and tested together to perform best as a system. The all-new OverDrive Aero steerer tube technology is combined with a Contact SLR AeroLight stem and Contact SLR handlebar to incorporate internal cable routing that also integrates the top cap, cables and spacers in a more aerodynamic, user-friendly setup

WINNING EFFICIENCY

Featuring a greater stiffness-to-weight ratio than the previous generation, along with new aero tube shaping and a lighter overall weight, this uncompromising race bike delivers explosive acceleration and unyielding pedaling stiffness. The result is race-winning performance in the moments that count.

INTEGRATED AERODYNAMICS

From the truncated ellipse shape of frameset tubing to a new cockpit design and component integration, it all adds up to a more streamlined profile that helps give the flagship TCR Advanced SL 0 model a 4.19-watt advantage over the previous generation.

Specs

• Frame

  • Advanced SL-grade Composite, 12x142mm thru-axle, integrated seatpost, disc
• Fork

  • Advanced SL-grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc
• Handlebar

  • Giant Contact SLR XS:420/370mm, S:420/370mm, M:440/390mm, M/L:440/390mm, L:440/390mm, XL:440/390mm
• Grips

  • Stratus Lite 2.0

• Stem

  • Giant Contact SLR AeroLight XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
• Seatpost

  • Giant Integrated Seatpost, -5/+15mm offset
• Saddle

  • CADEX AMP
• Shifters

  • Shimano Dura-Ace Di2
• Front Derailleur

  • Shimano Dura-Ace Di2 FD-R9250
• Rear Derailleur

  • Shimano Dura-Ace Di2 RD-R9250
• Brakes

  • Shimano Dura-Ace Di2 hydraulic, Shimano RT-CL900 rotors [F]160mm, [R]140mm
• Brake Levers

  • Shimano Dura-Ace Di2
• Cassette

  • Shimano Dura-Ace, 12-speed, 11x34
• Chain

  • Shimano CN-M9100
• Crankset

  • Shimano Dura-Ace, 36/52 XS:165mm, S:165mm, M:170mm, M/L:170mm, L:172.5mm, XL:172.5mm
• Bottom Bracket

  • CEMA ceramic, press fit
• Rims

  • CADEX Max 40 WheelSystem, [F]40mm, [R]40mm
• Hubs

  • [F] CADEX R3 Aero Hub, CenterLock, 12mm thru-axle, [R] CADEX R3-C48 Aero Hub, 48t ratchet driver, CenterLock, 12mm thru-axle
• Spokes

  • CADEX Aero Carbon Spoke
• Tires

  • CADEX Race GC, tubeless, 700x30mm, folding
• Extras

  • computer mount , 33mm max tire size
• Max Tire Clearance

  • 33mm
