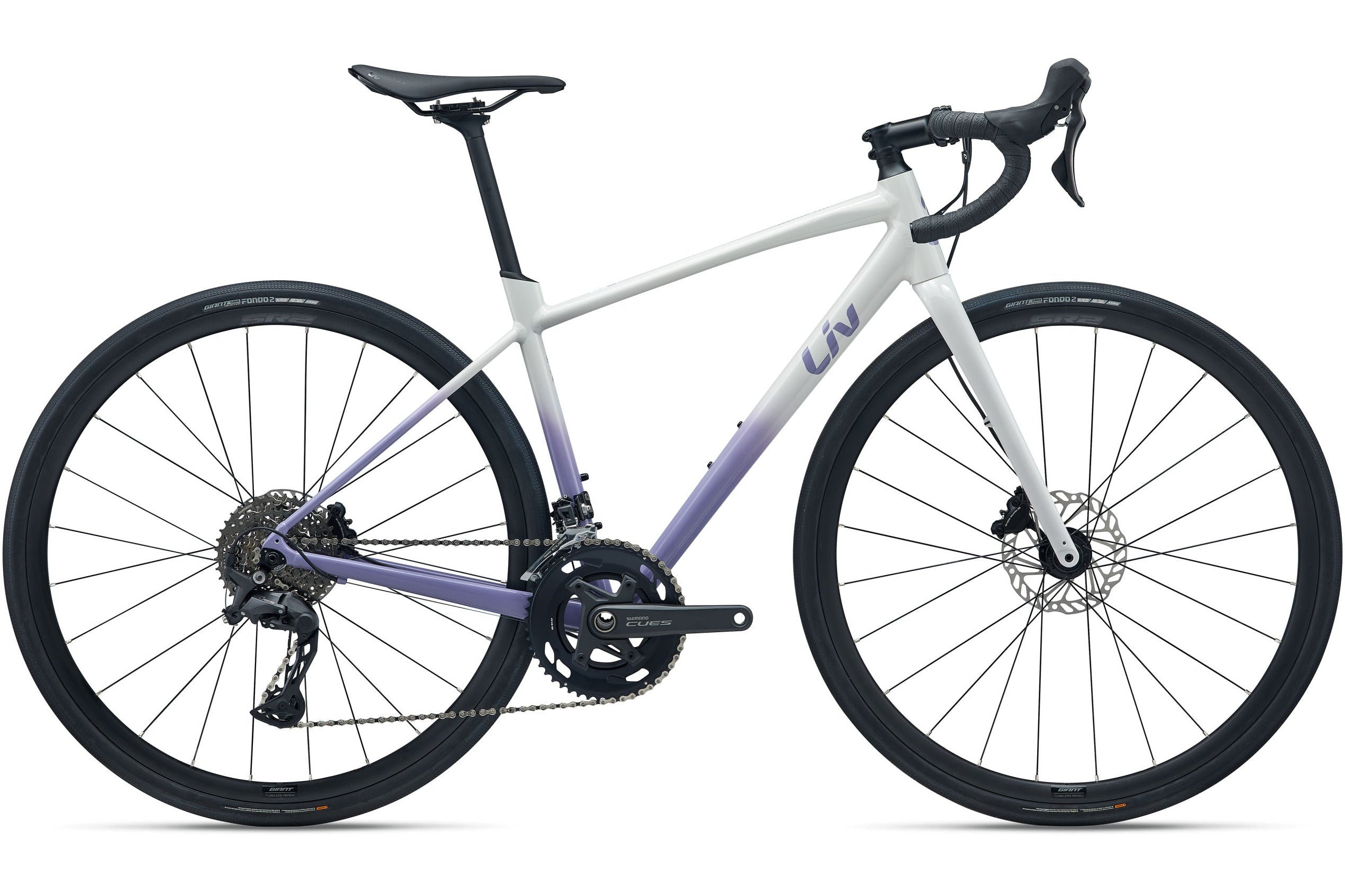

Whether it’s navigating asphalt or venturing through an unpaved short cut, the Avail AR is smooth on flats, spry on climbs and confident on descents.

Comfort

The lightweight ALUXX aluminum frame features the latest endurance geometry with an Advanced-grade composite fork and D-Fuse seatpost to diminish vibrations.

Control

The 32c tires provide stability on both road and off-road surfaces, with compatibility for tubeless tires up to 38c. The OverDrive steerer and powerful disc brakes ensure precise handling and reliable stopping power, giving you confidence on any terrain.

Carrying Capacity

Equipped with frame mounts for racks and fenders, the Avail AR ensures you're ready for longer journeys with all the necessary gear and protection.

Specs

• Frame
  • ALUXX-grade aluminum, 12x142mm thru-axle, disc
• Fork
  • Advanced-grade composite, full-composite OverDrive steerer, 12x100mm, disc
• Handlebar
  • Liv Connect, 31.8mm, XXS: 380mm, XS: 380mm, S: 400mm, M: 400mm, L: 420mm
• Grips
  • Liv All Condition
• Stem
  • Giant Sport, XXS: 70mm, XS: 70mm, S: 80mm, M: 90mm, L: 90mm
• Seatpost
  • Giant D-Fuse, composite, XXS: 350mm, XS: 350mm, S: 350mm, M: 350mm, L: 350mm
• Saddle
  • Liv Approach
• Shifters
  • Shimano CUES U6030
• Front Derailleur
  • Shimano CUES U6030F
• Rear Derailleur
  • Shimano CUES U6020-10
• Brakes
  • Shimano BR-U6030 hydraulic, Giant MPH rotors, [F] 160mm, [R] 160mm
• Brake Levers
  • Shimano CUES U6030
• Cassette
  • Shimano CS-LG400, 10-speed, 11x39
• Chain
  • KMC X11
• Crankset
  • Shimano FC-U6030-2, 34/50 XXS: 165mm, XS: 165mm, S: 170mm, M: 170mm, L: 172.5mm
• Bottom Bracket
  • Shimano BB-RS501
• Rims
  • Giant S-R2 Disc
• Hubs
  • Giant alloy, 12mm thru-axle
• Spokes
  • stainless
• Tires
  • Giant Gavia Fondo 2, 700x32c, tubeless
• Extras
  • tubeless prepared, 38mm max tire size
• Max Tire Clearance
  • 38mm
