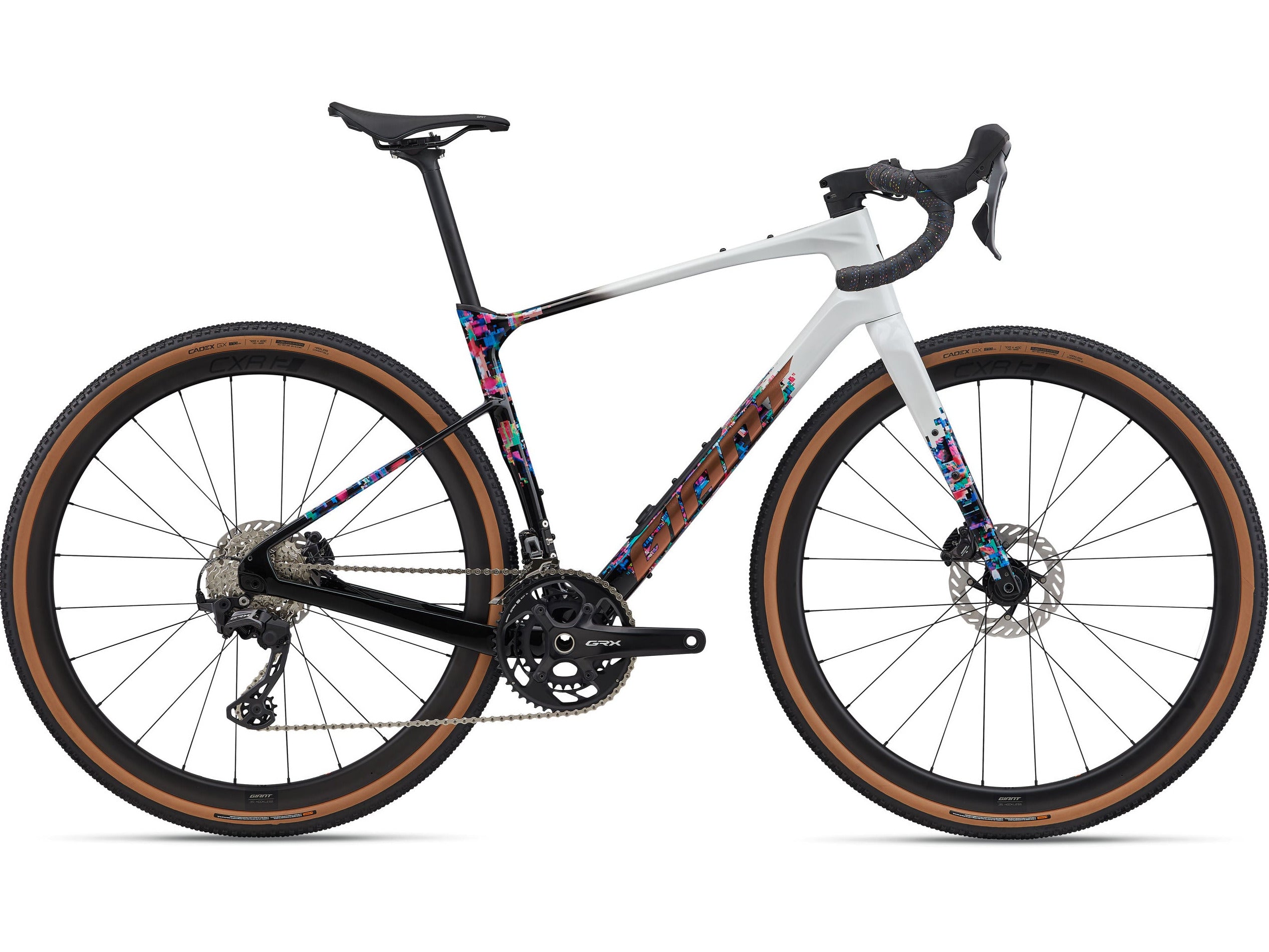

A light, smooth and adaptable to variable conditions and terrain, the special edition Revolt Advanced SE combines ultra-efficient performance, next-level control, and striking colors and graphics that make it stand out in the pack.

FAST AND VERSATILE

An Advanced-grade composite frame and fork combine for lightweight efficiency and smooth control. A two-position flip chip on the rear dropout lets you adjust the wheelbase: short for quicker handling, or long for added tire clearance (up to 53mm) and improved stability. You can use the included D-Fuse seatpost for more flex and compliance, or switch to a traditional 30.9mm round seatpost or dropper post.

TUNED COMPLIANCE

Dropped seatstays with small-diameter tubing absorb road shocks and vibrations on all types of gravel. The Contact SL D-Fuse carbon handlebar and D-Fuse seatpost help smooth out rough tracks, improving control and minimizing fatigue over long distances.

SMART INTEGRATION

Internally routed cables offer clean, uncluttered cockpit aesthetics and improved aero performance. An easily accessed storage compartment inside the top tube lets you securely carry tools, snacks and other essentials. And additional integrated mounts on the top tube, fork and rear dropout make it easy to modify with additional packs or fenders.

Specs

• Frame

  • Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage
• Fork

  • Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
• Handlebar

  • Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
• Grips

  • Stratus Lite 3.0
• Stem

  • Giant Contact AeroLight, -10 degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
• Seatpost

  • Giant D-Fuse SL, composite, -5/+15mm offset
• Saddle

  • Giant Grit
• Shifters

  • Shimano GRX RX-820, 2x12
• Front Derailleur

  • Shimano GRX RX-820
• Rear Derailleur

  • Shimano GRX RX-820
• Brakes

  • Shimano GRX RX-820 hydraulic, Shimano SM-RT70 rotors [F]160mm, [R]160mm
• Brake Levers

  • Shimano GRX RX-820 hydraulic
• Cassette

  • Shimano CS-HG710, 12-speed, 11x36
• Chain

  • KMC X12L-1
• Crankset

  • Shimano GRX RX-820, 31/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
• Bottom Bracket

  • Shimano, press fit
• Rims

  • Giant CXR 2 WheelSystem, [F] 35mm, [R] 35mm
• Hubs

  • [F] Giant alloy, CenterLock, 12mm thru-axle, [R] Giant alloy, 3-pawl 36t driver, CenterLock, 12mm thru-axle
• Spokes

  • Sapim Sprint
• Tires

  • CADEX GX, 700x40c, tubeless
• Extras

  • tubeless prepared, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position, in-frame storage bag
• Max Tire Clearance

  • 53mm
