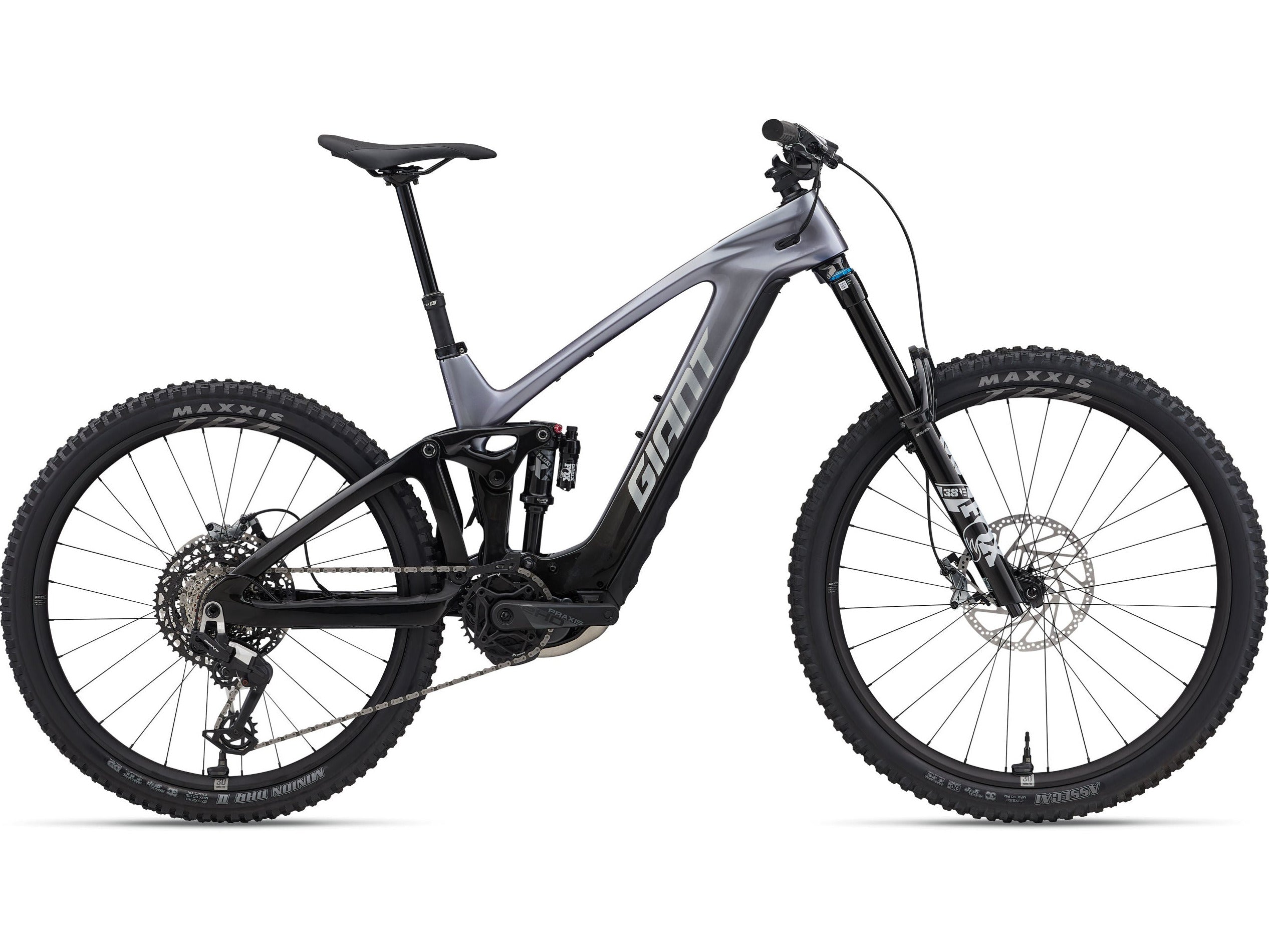

Everything about the new Reign Advanced E+ is designed to make it the best descending E-MTB ever. From the bottomless feeling Maestro suspension with 170mm of rear travel (and a 180mm fork) to the punchy new SyncDrive Pro 3 motor and its lightweight, stiff and ultra-adjustable composite frame. We added a titanium skid plate, robust frame protection, and an innovative bash-guard with an elastomer damper—so you can send it with confidence on the most rugged, technical terrain.

DOMINANT ON DESCENTS

Featuring a modified Maestro suspension system with a new integrated lower link and 170mm of rear travel paired with a 180mm fork, this is best descending E-bike ever from Giant. Maestro’s floating pivot design means it’s always active and efficient under pedaling. Its progressive leverage curve makes the rear shock is easy to compress at the top of the stroke and super-supportive near the end range, producing a plush, bottomless feel that uses every bit of its travel. The result is unmatched confidence and control for big hits, steep drops and technical rock gardens.

LIGHTWEIGHT YET POWERFUL

Upgrading from a 36-volt to 48-volt system results in better performance with reduced heat and energy loss. With 90Nm of torque and 800 watts of peak power, the new SyncDrive Pro 3 motor lets you sustain a high torque level, even at higher pedaling cadences—so you feel powerful, consistent support in any riding situation The added power combined with a lighter composite frame and overall weight of just 22.3kg (size medium) means the Reign E+ Advanced packs a punch when you need it most. And the 48-volt system also produces less stress on the EnergyPak 560 battery, which has a nearly endless lifespan of up to 2300 charge cycles.

PREMIUM PROTECTION

Designed to shred hard and take a beating, the Reign Advanced E+ features a tough, dual-density battery cover that doubles as a full-length protector on the underside of the down tube—perfect for chairlifts, trailers or pickup truck shuttles. A new integrated skid plate protects the motor with corrosion resistant titanium that’s twice as strong as aluminum. And with less friction, the skid plate also helps keep you from getting hung up on rocks, roots, or other obstacles. Finally, a unique MRP active bash-guard, with an elastomer damper and suspended design, gives you unmatched chain and chainring protection.

Specs

• Motor
  • Giant SyncDrive Pro 3, 90Nm PedalPlus 6-sensor technology
• Controller
  • Giant RideControl Ergo 4
• Display
  • Giant RideControl GO Lux
• Battery
  • Giant EnergyPak Smart 560Wh, integrated, 48V
• Charger
  • Giant EnergyPak smart charger 4A, 48V
• Connectivity
  • Aegis Tire Checker included in RideControl display
• Frame
  • Advanced-grade composite frame, Advanced forged composite upper rocker, 170mm Maestro suspension system
• Fork
  • Fox 38 Performance Elite, 29", 180mm travel, Grip X2 damper, 44mm offset, KaboltX 110x15mm Boost axle
• Shock

  • Fox Float X Performance, EVOL Large Volume sleeve, 205x65mm Trunnion mount, custom tuned
• Handlebar
  • Giant Contact SL TR35, 35x800mm, 35mm rize, Up: 5⁰ Back: 9⁰
• Grips
  • Giant Tactal Pro-E, tapered design, 135mm Ø28~30mm (S/M) 142mm Ø29~32mm (L/XL)
• Stem
  • Giant Contact SL 35
• Seatpost
  • Giant Contact Switch adjustable dropper, 30,9mm (S:110~140, M:140~170,L/XL: 170~200) MMX remote
• Saddle
  • Giant Romero, Neutral
• Shifters
  • SRAM Eagle 90 Transmission Single Click
• Front Derailleur
  • N/A
• Rear Derailleur
  • SRAM 90 Eagle Transmission
• Brakes
  • TRP DH-R EVO, hydraulic disc, E2.3 caliper, 4-piston, 220mm [F/R]
• Brake Levers
  • TRP DH-R EVO
• Cassette
  • SRAM Eagle Transmission, 10-52T, 12-speed
• Chain
  • SRAM 70 Eagle Transmission Flattop Powerlink 12-speed
• Crankset
  • SRAM Eagle Transmission 36T chainring Praxis e-HD forged crankarm set (Q-Factor:168mm, Length: 160mm)
• Rims
  • Giant e-TRA, Hookless, 30mm inner width, Hollow Side-Wall Design for improved strength and flat protection, 2~4psi lower air pressure recommended
• Hubs

  • Giant e-TRA, E-Drive 260Nm 6-Pawl Driver, 72T engagement, 15x110mm [F] 12x148mm [R], e-bike optimized
• Tires
  • Maxxis Assagai 29x2.5" foldable, tubeless, EXO+ 3C MaxxGrip[F] Maxxis MINION DHR II 27.5x2.4" WT foldable, Tubeless, DoubleDown, 3C MaxxGrip Compound [R]
• Extras

  • Aegis Tire Checker
• Lighting
  • Optional: - Giant Recon series e-bike lights available and direct connectable
