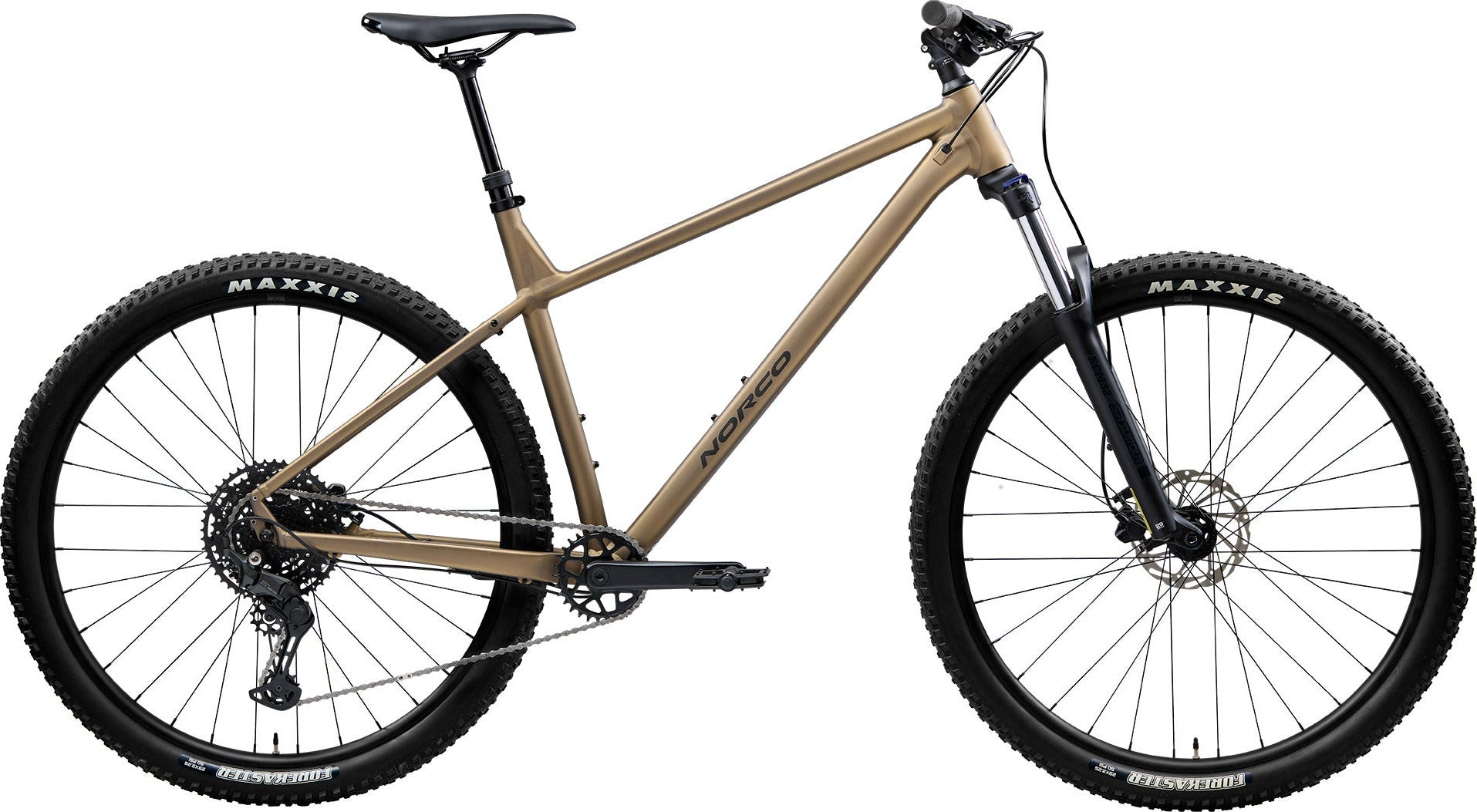

The Storm 120 features a progressive off-road design and features that’ll help you discover your favourite way to ride.
| Frame |
Aluminum, Smooth Welding, 12x148mm Boost, Tapered HT |
| Fork |
SR Suntour XCM32LO w/ lockout, 120mm, 46mm offset, 15x110mm Boost |
| Rear Shifter |
Shimano Cues SL-U6000-10R, 10sp |
| Rear Derailleur |
Shimano Cues RD-U6000, 10sp, GS |
| Crankset |
Prowheel Alloy, 30T, 170mm (S-M), 175mm (L - XXL) |
| Bottom Bracket |
Cartridge, ST 73mm, 113mm axle length |
| Cassette |
Shimano Cues CS-LG300-10, 11-48T, 10sp |
| Chain |
KMC Z10 |
| Front Brake |
Tektro HD-M275, Resin pads |
| Front Brake Rotor |
Tektro. 160mm rotor, 6-bolt |
| Rear Brake |
Tektro HD-M275, Resin pads |
| Rear Brake Rotor |
Tektro. 160mm rotor, 6-bolt |
| Brake Levers |
Tektro HD-M275 |
| Handlebar |
6061 Alloy DB, 750mm (S) / 780mm (M,L,XL,XXL) 30mm rise |
| Stem |
Alloy 50mm Length, 31.8mm Clamp |
| Seatpost |
X-Fusion Manic LC, 31.6mm, 100mm (S), 125mm (M,L/XL/XXL) |
| Headset |
Sealed Cartridge Bearings, Tapered 1-1/8" - 1.5" ( IS42/28.6 | IS52/40 ) |
| Headset Spacer |
3x10mm |
| Saddle |
Norco XC, Steel Rail |
| Grips |
DDK lock-On, 139mm length |
| Pedals |
Nylon Flat Pedal |
| Seatpost Clamp |
Norco Alloy QR, 34.9mm ID |
| Front Hub |
Formula DC51 , 15x100mm, 32h, 6-bolt |
| Rear Hub |
Formula DC-1422,10x135mm QR, HG, 32h, 6-bolt |
| Rims |
DP 27 Rims, 27mm ID, 32H |
| Front Tire |
Maxxis Forekaster, 29x2.25" (27.5X2.25"size S), Wire |
| Rear Tire |
Maxxis Forekaster, 29x2.25" (27.5X2.25"size S), Wire |
| Spokes/Nipples |
Stainless Steel, 14g |
