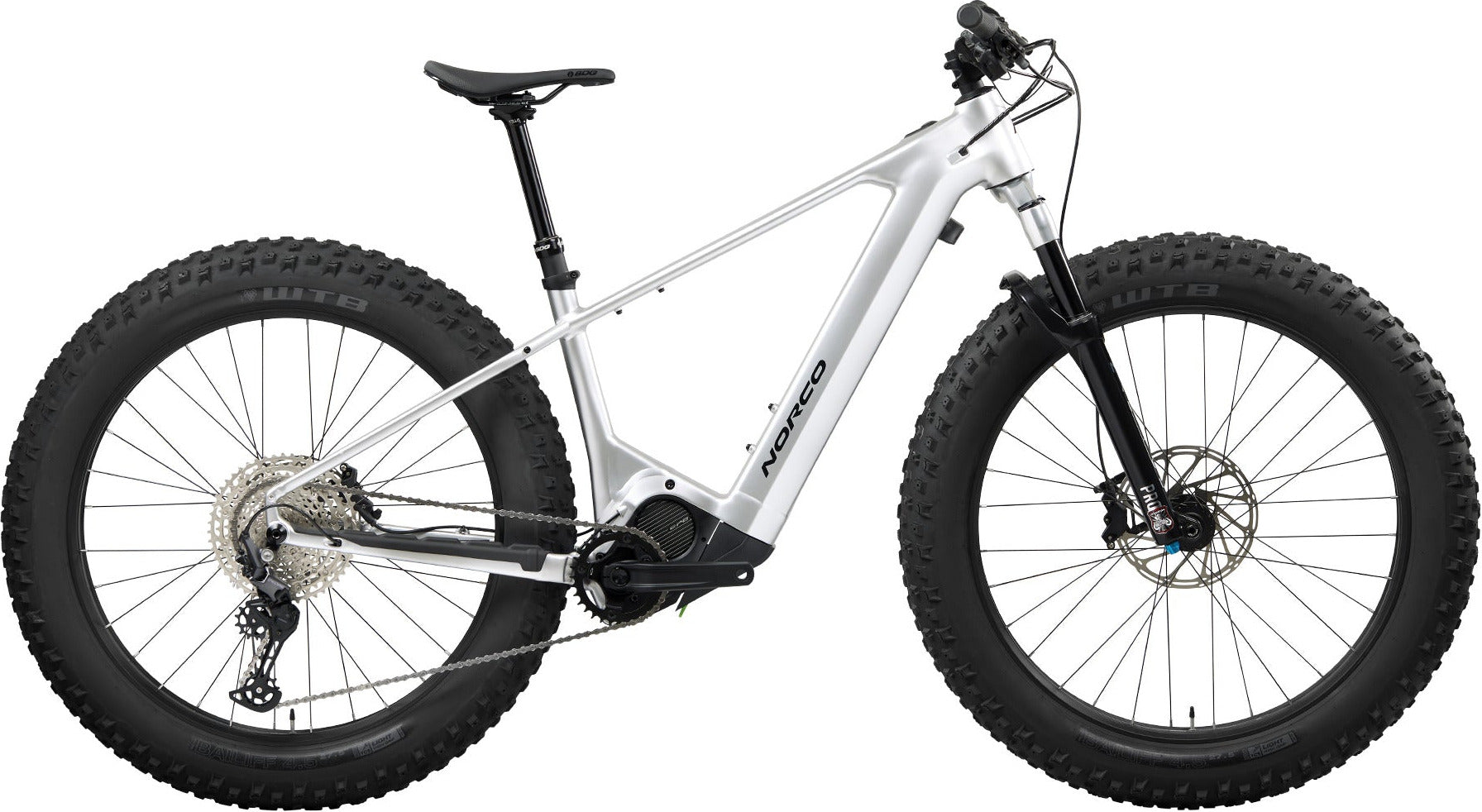

2025 Norco Bigfoot VLT A1 - Battery Sold Separately
By
Norco
SKU:
0240015714
$5,999.00
Unit price
/
Inquire for Availability
Description
From top to chonky bottom, the Bigfoot VLT A1 is engineered with all the unique performance and features that serious Fat Bikers demand.
Key Features:
- Progressive MTB handling through treacherous terrain.
- Studdable 27.5 x 4.5” rubber for max grip and cush.
- All the power you need with Shimano’s EP8 drive system.
- Choose your juice of 540Wh, 720Wh or 900Wh for those all day epics.
- All VLT batteries are easily removable with one tool.
- No Other Way Limited Lifetime Warranty.
Specs:
-
Frame
- Butted X6 Aluminum
-
Fork
- Manitou Mastodon Pro EXT, 100mm. 51mm Offset, 15x150mm
-
Rear Shifter
- Shimano SLX SL-M7100-IR, 12sp
-
Rear Derailleur
- Shimano XT RD-M8100, 12sp, SGS
-
Crankset
- Samox Alloy, 32T, CL72, 165mm
-
Cassette
- Shimano SLX CS-M6100, 10-51T, 12sp
-
Chain
- Shimano Deore CN-M6100, 12spd
-
Front Brake
- SRAM DB8, Sintered Pads
-
Front Brake Rotor
- SRAM Centreline, 200mm, 1.85mm Thickness, 6-bolt
-
Rear Brake
- SRAM DB8, Sintered Pads
-
Rear Brake Rotor
- SRAM Centreline, 180mm, 1.85mm Thickness, 6-bolt
-
Brake Levers
- SRAM DB8
-
Handlebar
- Norco 6061 Alloy, 780mm, 20mm Rise
-
Stem
- Norco 6061 Alloy, 50mm Length, 35mm Clamp
-
Seatpost
- TranzX YSI22PLQ Dropper, 34.9mm, 150mm (S) - 170mm (M, L) -200mm (XL)
-
Headset
- FSA No. 55 Sealed Bearing, 1 1/8” - 1.8” Tapered, Internal alloy cup, Internal Alloy lower 1.8R” ACB
-
Saddle
- SDG Bel-Air V3
-
Grips
- WTB Waffle, 132mm Length
-
Front Hub
- Bear Pawls BMB-013, 15x150 Boost, 32H, 6 Bolt
-
Rear Hub
- Bear Pawls BFB-004, 197x12mm FAT, Micro Spline, 6 Bolt
-
Rims
- Sun Ringle Mulefut SL V2, 27.5”, 32H
-
Front Tire
- Vee Snow Avalanche, TLR 120 TPI, 27.5”x4.5”, Studdable
-
Rear Tire
- Vee Snow Avalanche, TLR 120 TPI, 27.5”x4.5”, Studdable
-
Spokes/Nipples
- Stainless Steel 14g - Black
-
Drive Unit
- Shimano EP8
-
Battery
- 540Wh, 630Wh, 900Wh Options - Sold Separately
Norco Bikes Sizing Charts
Fat Bikes (Ithaqua / Bigfoot / Bigfoot VLT / Sasquatch)
| Rider Height (Inches) | Rider Height (Metric) | Frame Size |
|---|---|---|
| 5'1"-5'5" | 155-165cm | Small |
| 5'4"-5'9" | 164-174cm | Medium |
| 5'8"-6'0" | 172-182cm | Large |
| 5'11"-6'3" | 181-191cm | XL |
Enduro / All Mountain / Trail / XC (Revolver / Optic / Torrent / Sight / Sight VLT / Range / Range VLT / Fluid / Fluid VLT)
| Rider Height (Inches) | Rider Height (Metric) | Frame Size |
|---|---|---|
| 4'9"-5'2" | 146-156cm | XS |
| 5'1"-5'5" | 155-165cm | Small |
| 5'4"-5'9" | 164-174cm | Medium |
| 5'8"-6'0" | 172-182cm | Large |
| 5'11"-6'4" | 181-191cm | XL |
| 6'3""-6'7" | 190-200cm | XXL |
Cross Country (Charger / Charger VLT / Storm)
| Rider Height (Inches) | Rider Height (Metric) | Frame Size |
|---|---|---|
| 4'6"-4'10" | 137-147cm | XXS |
| 4'9"-5'2" | 146-156cm | XS |
| 5'1"-5'5" | 155-165cm | Small |
| 5'4"-5'9" | 164-174cm | Medium |
| 5'8"-6'0" | 172-182cm | Large |
| 5'11"-6'4" | 181-191cm | XL |
Dirt Jump (Rampage)
| Rider Height (Inches) | Rider Height (Metric) | Frame Size |
|---|---|---|
| 5'1"-5'5" | 155-165cm | Small |
| 5'4"-5'9" | 164-174cm | Medium |
| 5'8"-6'0" | 172-182cm | Large |
Free Ride (Shore)
| Rider Height (Inches) | Rider Height (Metric) | Frame Size |
|---|---|---|
| 5'1"-5'5" | 155-165cm | Small |
| 5'4"-5'9" | 164-174cm | Medium |
| 5'8"-6'0" | 172-182cm | Large |
| 5'11"-6'4" | 181-191cm | XL |
