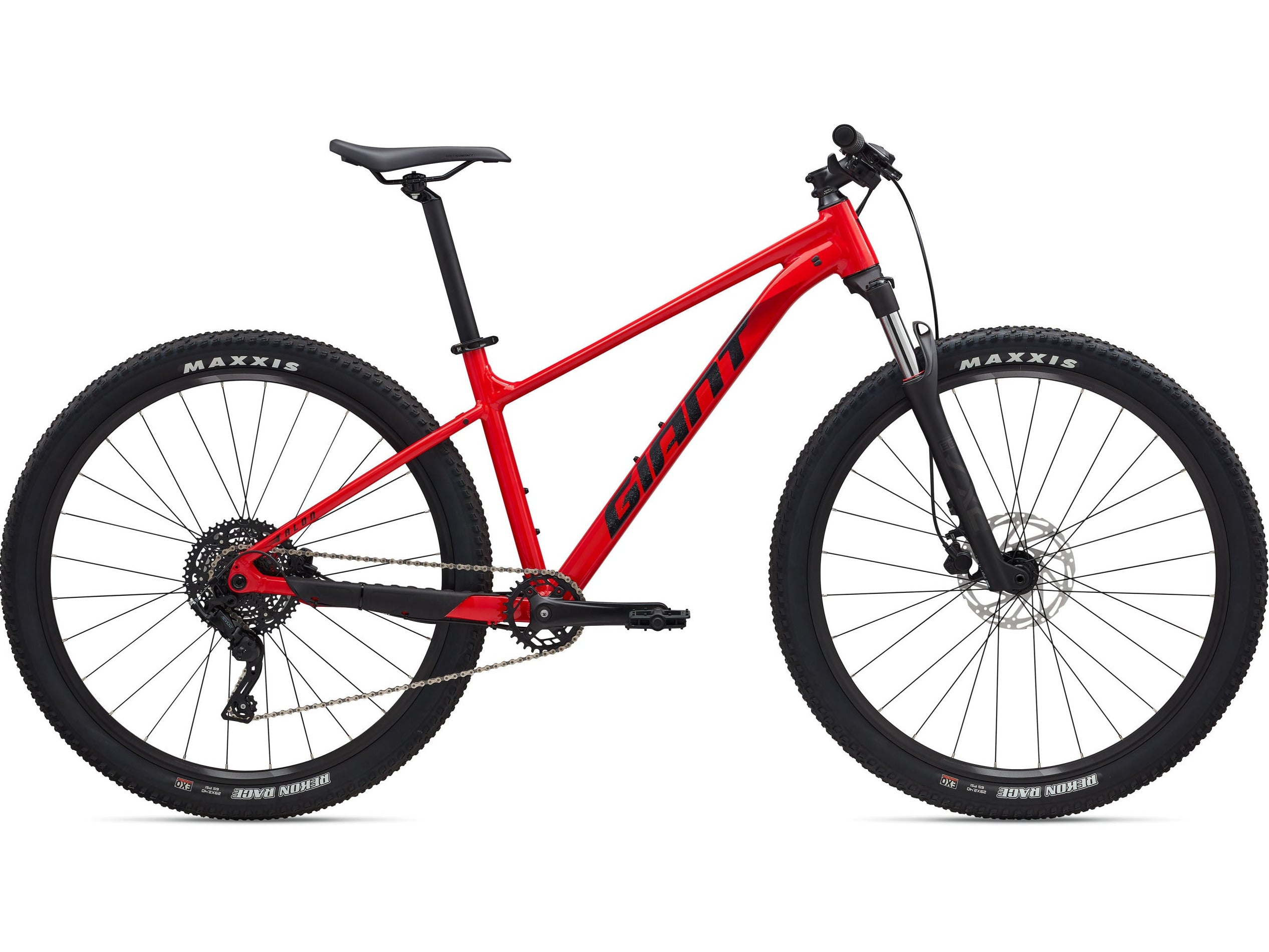

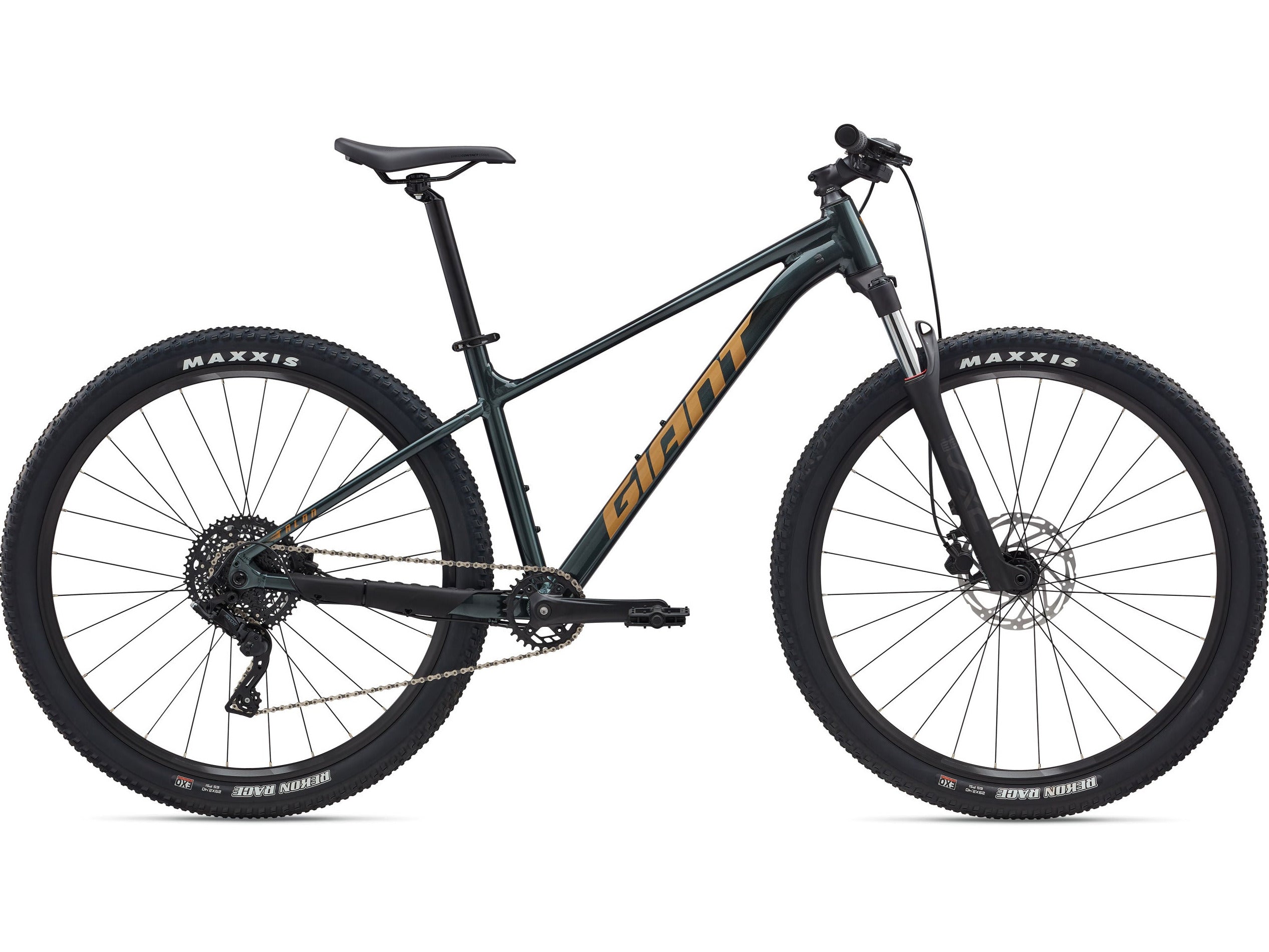

The mountain bike experience starts here. With a redesigned frame that’s now lighter and more durable, along with a smooth-riding suspension fork, thru-axle hubs*, and a 1x drivetrain*, this aluminum hardtail is everything an aspiring MTB rider needs to evolve and advance. *on select models

Modern MTB Design

Tapered fork steerer tubes*, quality components including a 1x drivetrain* with clutch-equipped rear derailleurs, thru-axle hubs*, internal cable routing (including dropper seatpost) and an integrated chainstay protector give aspiring trail riders room to grow. *on select models

Off-Road Control

New geometry is optimized for confident trail riding and two different wheel sizes (27.5 or 29-inch) depending on frame size. The geometry is also designed for front suspension with either an 80mm or 100mm fork depending on frame size. All models have clearance for high-volume tires (up to 2.4-inch) for traction and grip on technical terrain.

Light and Durable

All-new ALUXX aluminum frame features updated shaping and a lighter overall weight for improved performance on off-road terrain.

Specs

• Frame

  • ALUXX-grade aluminum, disc
• Fork

  • Giant SXC32-3 RL, coil spring, 1.5" tapered alloy steerer, 15x110mm thru-axle, XS,S: 80mm (27.5), S, M, L, XL, XXL: 100mm (29)
• Shock
  • N/A
• Handlebar

  • Giant Connect Trail, 31.8mm
• Grips

  • Giant Sole-O
• Stem

  • Giant Sport, 7-degree
• Seatpost

  • Giant Sport, 30.9
• Saddle

  • Giant ErgoContact Trail
• Shifters

  • microSHIFT Advent, 1x9
• Front Derailleur

  • N/A
• Rear Derailleur

  • microSHIFT Advent RD-M6195M with clutch
• Brakes

  • Tektro HDC M275, hydraulic, Tektro rotors [F]180mm, [R]160mm
• Brake Levers

  • Tektro HDC M275
• Cassette

  • microSHIFT Advent, 9-speed, 11x46
• Chain

  • KMC X9
• Crankset

  • ProWheel Charm, [27.5] 32t, [29] 30t, 52.5mm chainline 32t
• Bottom Bracket

  • cartridge
• Rims

  • Giant GX03V 27.5 or 29, alloy, double wall, 21mm IW
• Hubs

  • alloy, sealed bearing, [F] 9mm QR, [R] 12x142 thru-axle
• Spokes

  • stainless
• Tires

  • Maxxis Rekon 27.5x2.4" or Maxxis Rekon Race 29x2.4", 60 TPI, wire bead
• Extras

  • 2.4" max tire size, max chainring 32t
• Max Tire Clearance

  • 2.4"
