Name: 2025 Cannondale Moterra S3
Brand: Cannondale
SKU: C65233U10LG
Price: 4050.0 CAD
Availability: OutOfStock

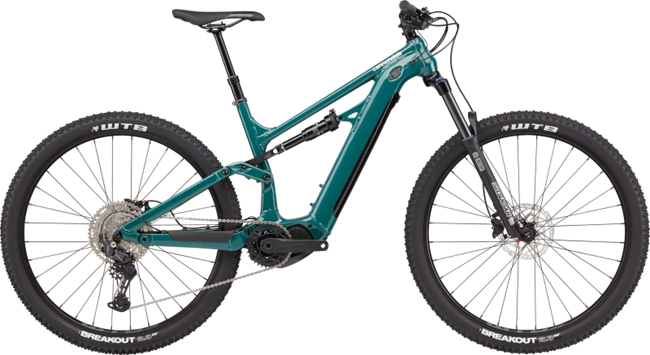

2025 Cannondale Moterra S3

By Cannondale

SKU: C65233U10LG

$4,050.00

Size

S M L XL

Colour

Pine

Wheel Size

29"

Product variants

Description

Pure Power Metal.

A trail-slaying aluminum e-mountain bike, ready to crank up the fun factor on any terrain, anywhere.

Where it thrives

In the mountains

What it's built for

Trail-riding fun

Highlights

SmartForm C2 Alloy Frame / SR Suntour Zeron 36 fork / 140mm travel
Shimano Steps EP6 drive system with 630Wh battery
Shimano CUES 6000 11-speed shifting with hydraulic brakes

Specs

Frame
150mm travel, SmartForm C2 Alloy, Cannondale Tuned Suspension, removable downtube battery, internal cable routing, 148x12mm thru-axle, post mount brake, tapered headtube
Fork
SR Suntour Zeron 36 Boost, 140mm, Air, rebound adjust,tapered steerer, 44 mm offset
Headset
Integrated, 1-1/8 to 1.5", sealed bearings
Rear Shock
X-Fusion O2 Pro Air, adjustable rebound, lock-out

E-System

Drive Unit
Shimano EP6
Battery
Shimano BT-EN8036, 630Wh
Charger
Shimano Battery Charger 2A
Display
Shimano SC-EN500

Drivetrain

Rear Derailleur
Shimano CUES U6000, 11-speed
Shifters
Shimano CUES U6000, trigger style, 11-speed
Chain
Shimano LG500 Linkglide, 11-speed
Crank
FSA E-Bike for Shimano, 165mm, 34T
Rear Cogs
Shimano CUES LG400, 11-50, 11-speed

Brakes

Brakes
Shimano MT200 hydraulic disc, 180/180mm RT10 rotors
Brake Levers
Shimano MT200 hydraulic disc

Wheels

Rims
WTB STX i25 TCS, 32h
Spokes
Stainless Steel, 14g
Tire Size
2.3
Wheel Size
29
Hubs
(F) Shimano TC500, 15x110mm thru-axle, centerlock / (R) Shimano TC500, 12x148mm thru-axle, centerlock
Tires
WTB Breakout Comp, 29x2.3", DNA compound

Components

Handlebar
Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
Stem
Cannondale 3, 3D Forged 6061 Alloy, 1-1/8", 31.8, 6°
Grips
Cannondale Locking Grips
Saddle
Cannondale Stage 3
Seatpost
TranzX dropper, internal routing, 31.6, 120mm (S), 130mm (M-XL)

Ask A Question

View details

Cannondale Bikes Sizing Charts

CAAD Optimo

Rider Height (Inches)	Rider Height (Metric)	Frame Size
5'2"-5'5"	157-165cm	44cm
5'3"-5'7"	160-170cm	48cm
5'5"-5'9"	165-175cm	51cm
5'7"-5'11"	170-180cm	54cm
5'10"-6'1"	177-185cm	56cm
6'0"-6'4"	182-193cm	58cm

CAAD13

Rider Height (Inches)	Rider Height (Metric)	Frame Size
5'2"-5'5"	157-165cm	44cm
5'3"-5'7"	160-170cm	48cm
5'5"-5'9"	165-175cm	51cm
5'7"-5'11"	170-180cm	54cm
5'10"-6'1"	177-185cm	56cm
6'0"-6'4"	182-193cm	58cm
6'0"-6'4"	187-198cm	60cm
6'0"-6'4"	195-205cm	62cm

SuperSix EVO

Rider Height (Inches)	Rider Height (Metric)	Frame Size
5'3"-5'7"	160-170cm	48cm
5'5"-5'9"	165-175cm	51cm
5'7"-5'11"	170-180cm	54cm
5'10"-6'1"	177-185cm	56cm
6'0"-6'4"	182-193cm	58cm
6'0"-6'4"	190-200cm	61cm

SuperSix EVO CX

Rider Height (Inches)	Rider Height (Metric)	Frame Size
5'0"-5'4"	152-162cm	46cm
5'5"-5'9"	165-175cm	51cm
5'7"-5'11"	170-180cm	54cm
5'10"-6'1"	177-185cm	56cm
6'0"-6'4"	182-193cm	58cm

SuperSix EVO SE

Rider Height (Inches)	Rider Height (Metric)	Frame Size
5'0"-5'4"	152-162cm	46cm
5'5"-5'9"	165-175cm	51cm
5'7"-5'11"	170-180cm	54cm
5'10"-6'1"	177-185cm	56cm

SuperX

Rider Height (Inches)	Rider Height (Metric)	Frame Size
5'0"-5'4"	152-162cm	46cm
5'5"-5'9"	165-175cm	51cm
5'7"-5'11"	170-180cm	54cm
5'10"-6'1"	177-185cm	56cm
6'0"-6'4"	182-193cm	58cm
6'0"-6'4"	190-200cm	61cm

Synapse

Rider Height (Inches)	Rider Height (Metric)	Frame Size
5'0"-5'4"	152-162cm	44cm
5'2"-5'6"	157-167cm	48cm
5'5"-5'9"	165-175cm	51cm
5'7"-5'11"	170-180cm	54cm
5'9"-6'1"	175-185cm	56cm
6'0"-6'4"	182-193cm	58cm
6'3"-6'8"	190-203cm	61cm
6'0"-6'4"	195-205cm	62cm

Topstone Alloy / Topstone Carbon

Rider Height (Inches)	Rider Height (Metric)	Frame Size
4'10"-5'5"	147-165cm	XS
5'3"-5'9"	160-175cm	Small
5'7"-6'1"	170-185cm	Medium
5'10"-6'4"	177-193cm	Large
6'3"-6'8"	190-203cm	XL

Habit / Habit LT / Habit Carbon

Rider Height (Inches)	Rider Height (Metric)	Frame Size
5'0"-5'2"	152-157cm	XS
5'1"-5'5"	154-165cm	Small
5'4"-5'9"	162-175cm	Medium
5'8"-6'0"	172-182cm	Large
5'11"-6'5"	180-195cm	XL

Habit HT

Rider Height (Inches)	Rider Height (Metric)	Frame Size
5'1"-5'5"	154-165cm	Small
5'4"-5'9"	162-175cm	Medium
5'8"-6'0"	172-182cm	Large
5'11"-6'5"	180-195cm	XL

Moterra / Moterra Carbon / Moterra LT / Moterra SL / Scalpel / Scalpel HT / Scalpel Carbon SE

Rider Height (Inches)	Rider Height (Metric)	Frame Size
5'1"-5'5"	154-165cm	Small
5'4"-5'9"	162-175cm	Medium
5'8"-6'1"	172-185cm	Large
6'0"-6'5"	182-195cm	XL

Trail

Rider Height (Inches)	Rider Height (Metric)	Frame Size
4'6"-5'2"	137-157cm	XS
5'1"-5'4"	154-162cm	Small
5'4"-5'8"	162-172cm	Medium
5'7"-6'0"	170-182cm	Large
6'0"-6'3"	182-190cm	XL

Adventure

Rider Height (Inches)	Rider Height (Metric)	Frame Size
4'11"-5'6"	149-157cm	Small
5'6"-5'10"	165-177cm	Medium
5'9"-6'2"	175-187cm	Large

Adventure Neo

Rider Height (Inches)	Rider Height (Metric)	Frame Size
4'11"-5'7"	149-170cm	Small
5'7"-6'6"	170-198cm	Large

Adventure Neo Allroad

Rider Height (Inches)	Rider Height (Metric)	Frame Size
5'5"-5'10"	165-177cm	Medium
5'9"-6'5"	175-195cm	Large

Adventure Neo Allroad ST

Rider Height (Inches)	Rider Height (Metric)	Frame Size
5'0"-5'7"	152-170cm	Small
5'5"-5'10"	165-177cm	Medium

Bad Boy

Rider Height (Inches)	Rider Height (Metric)	Frame Size
5'2"-5'7"	157-170cm	Small
5'5"-5'10"	165-177cm	Medium
5'9"-6'2"	175-187cm	Large
6'0"-6'5"	182-195cm	XL

Cargowagen Neo

Rider Height (Inches)	Rider Height (Metric)	Frame Size
4'11"-6'3"	149-190cm	One Size

Compact Neo

Rider Height (Inches)	Rider Height (Metric)	Frame Size
4'5"-6'1"	134-185cm	One Size

Mavaro StepThru

Rider Height (Inches)	Rider Height (Metric)	Frame Size
4'11"-5'7"	149-170cm	Small
5'5"-6'1"	165-185cm	Medium
5'11"-6'7"	180-200cm	Large

Quick Womens / Quick Remixte

Rider Height (Inches)	Rider Height (Metric)	Frame Size
4'10"-5'3"	147-160cm	XS
5'2"-5'7"	157-170cm	Small
5'5"-5'10"	165-177cm	Medium
5'9"-6'2"	175-187cm	Large

Quick

Rider Height (Inches)	Rider Height (Metric)	Frame Size
5'2"-5'7"	157-170cm	Small
5'5"-5'10"	165-177cm	Medium
5'9"-6'2"	175-187cm	Large
6'0"-6'5"	182-195cm	XL
6'4"-6'9"	193-205cm	XXL

Quick CX

Rider Height (Inches)	Rider Height (Metric)	Frame Size
4'10"-5'3"	147-160cm	XS
5'2"-5'7"	157-170cm	Small
5'5"-5'10"	165-177cm	Medium
5'9"-6'2"	175-187cm	Large
6'0"-6'5"	182-195cm	XL

Tesoro X StepThru

Rider Height (Inches)	Rider Height (Metric)	Frame Size
4'11"-5'7"	149-170cm	Small
5'5"-5'11"	165-180cm	Medium
5'9"-6'3"	175-190cm	Large

Treadwell / Treadwell Neo / Treadwell Neo EQ / Treadwell LTD / Treadwell EQ DLX

Rider Height (Inches)	Rider Height (Metric)	Frame Size
4'11"-5'6"	149-167cm	Small
5'4"-6'0"	162-182cm	Medium
5'10"-6'5"	177-195cm	Large

Treadwell Remixte / Treadwell Neo Remixte / Treadwell EQ DLX Remixte

Rider Height (Inches)	Rider Height (Metric)	Frame Size
4'11"-5'6"	149-167cm	Small
5'4"-6'0"	162-182cm	Large
