Name: 2025 Cannondale Moterra Carbon 2
Brand: Cannondale
SKU: C25272U10SM
Price: 9165.0 CAD
Availability: OutOfStock

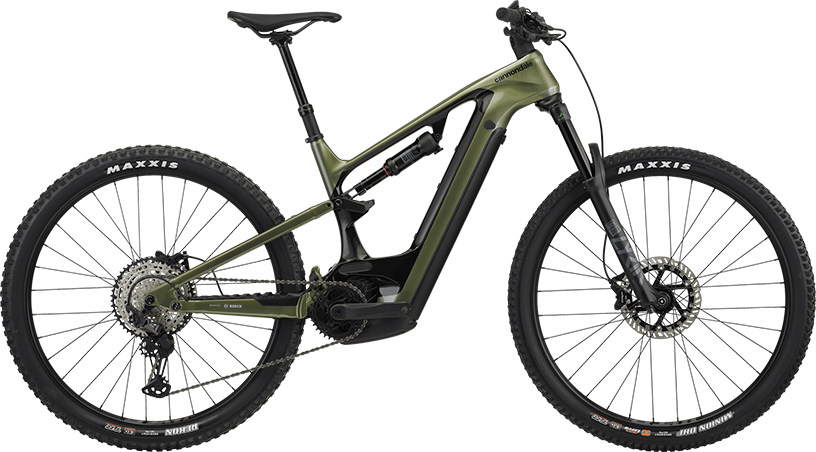

2025 Cannondale Moterra Carbon 2

By Cannondale

SKU: C25272U10SM

$9,165.00

Size

S M L XL

Colour

Mantis

Wheel Size

27.5" 29"

Product variants

Description

Breaking Boundaries

A dual-suspension e-mountain bike built to crush boundaries. With its intuitive handling & the power and range of the Bosch 750Wh system, nothing is out of reach.

Where it thrives

Challenging trails, Up and down hills, Out in the elements

What it's built for

Handling, Traction, Efficiency, Durability

Highlights

Proportional Response Tuned carbon frame / RockShox Lyrik Select+ fork, 150mm travel
Bosch SmartSystem - 750wh battery & Performance CX motor
Shimano XT/SLX 12-speed drivetrain

Frame
Moterra Carbon Front Triangle, SmartForm C1 Alloy Swingarm, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH hanger, post mount brake, 1.5” – 1.8” tapered headtube, 18mm two-bolt kickstand mount
Fork
RockShox Lyrik Select, 150mm, DebonAir, 15x110mm thru-axle, tapered steered, 44mm offset
Headset
Acros integrated sealed bearing, tapered
Rear Shock
RockShox Deluxe Select+, DebonAir, 2-Pos mode adjust, adjustable rebound

E-System

Drive Unit
Bosch Performance Line CX 250W
Battery
Bosch PowerTube, 750Wh
Charger
Bosch 4A
Display
Bosch Kiox 300 w/ LED remote
Certifications
UL 2849

Drivetrain

Rear Derailleur
Shimano XT
Shifters
Shimano SLX, 12-speed
Chain
Shimano SLX, 12-speed
Crank
FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T
Rear Cogs
Shimano SLX, 10-51, 12-speed

Brakes

Brakes
Shimano MT520 4-piston hydraulic disc, 203/203mm RT64 rotors
Brake Levers
Shimano MT501 hydraulic disc

Wheels

Rims
WTB ST i30 TCS, 32h, tubeless ready
Spokes
DT Swiss Champion
Tire Size
2.6
Wheel Size
29
Hubs
(F) Formula 15x110mm thru-axle / (R) Shimano MT410, 12x148mm thru-axle
Tires
(F) Maxxis Minion DHF, 29x2.6", EXO, tubeless ready / (R) Maxxis Rekon, 29x2.6" (27.5x2.6" - size Small), EXO, tubeless ready
Front Tire
Maxxis Minion DHF, 29x2.6", EXO, tubeless ready
Rear Tire
Maxxis Rekon, 29x2.6" (27.5x2.6" - size Small), EXO, tubeless ready

Components

Handlebar
Cannondale 3 Riser, 6061 Alloy, 25mm rise, 8° sweep, 5° rise, 800mm
Stem
Cannondale 2, 6061 Alloy, 35mm, 0°
Grips
Fabric FunGuy
Saddle
Fabric Scoop Shallow Sport, steel rails
Seatpost
Cannondale DownLow Dropper, internal routing, 31.6, 125mm (S), 150mm (M), 170mm (L-XL)
