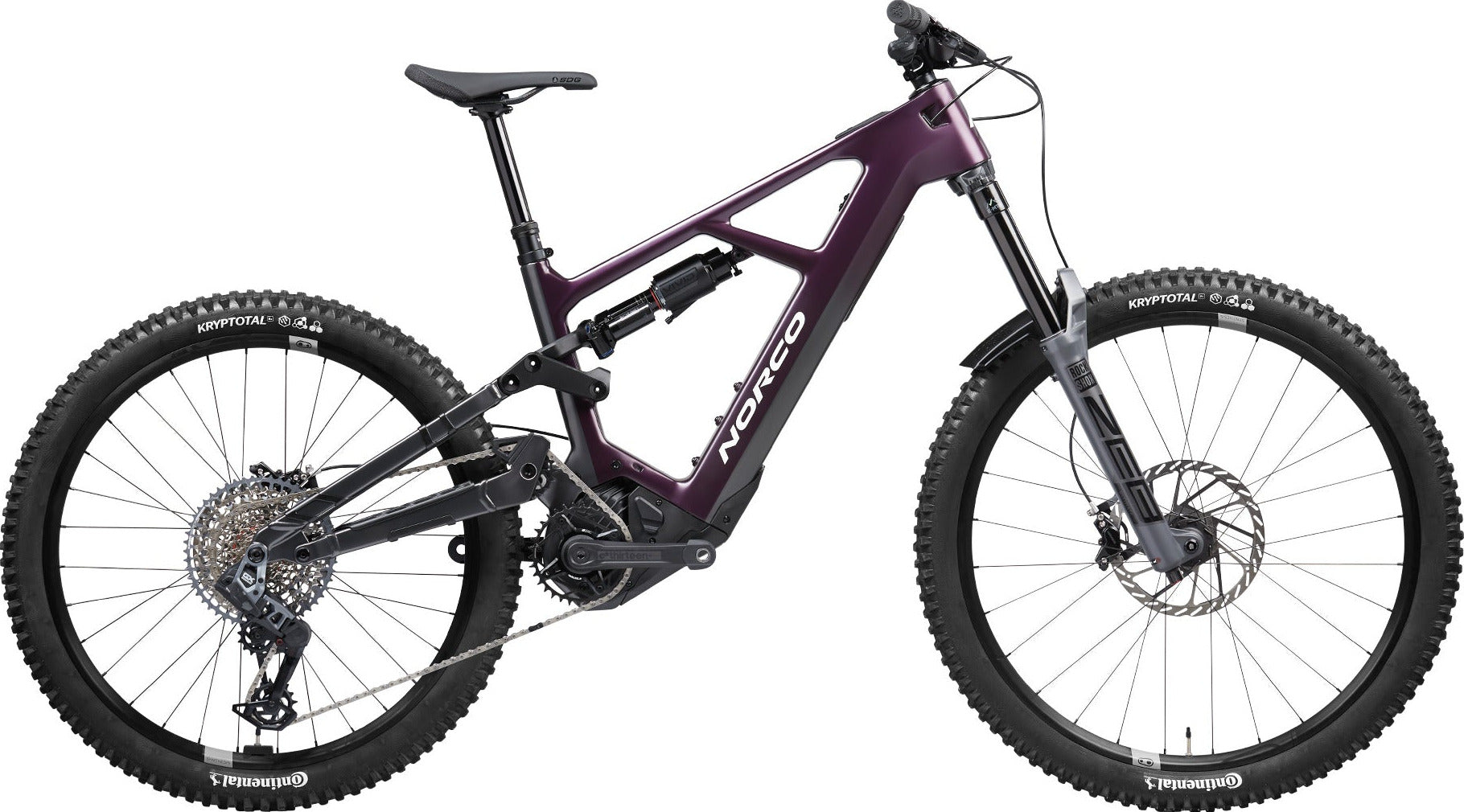

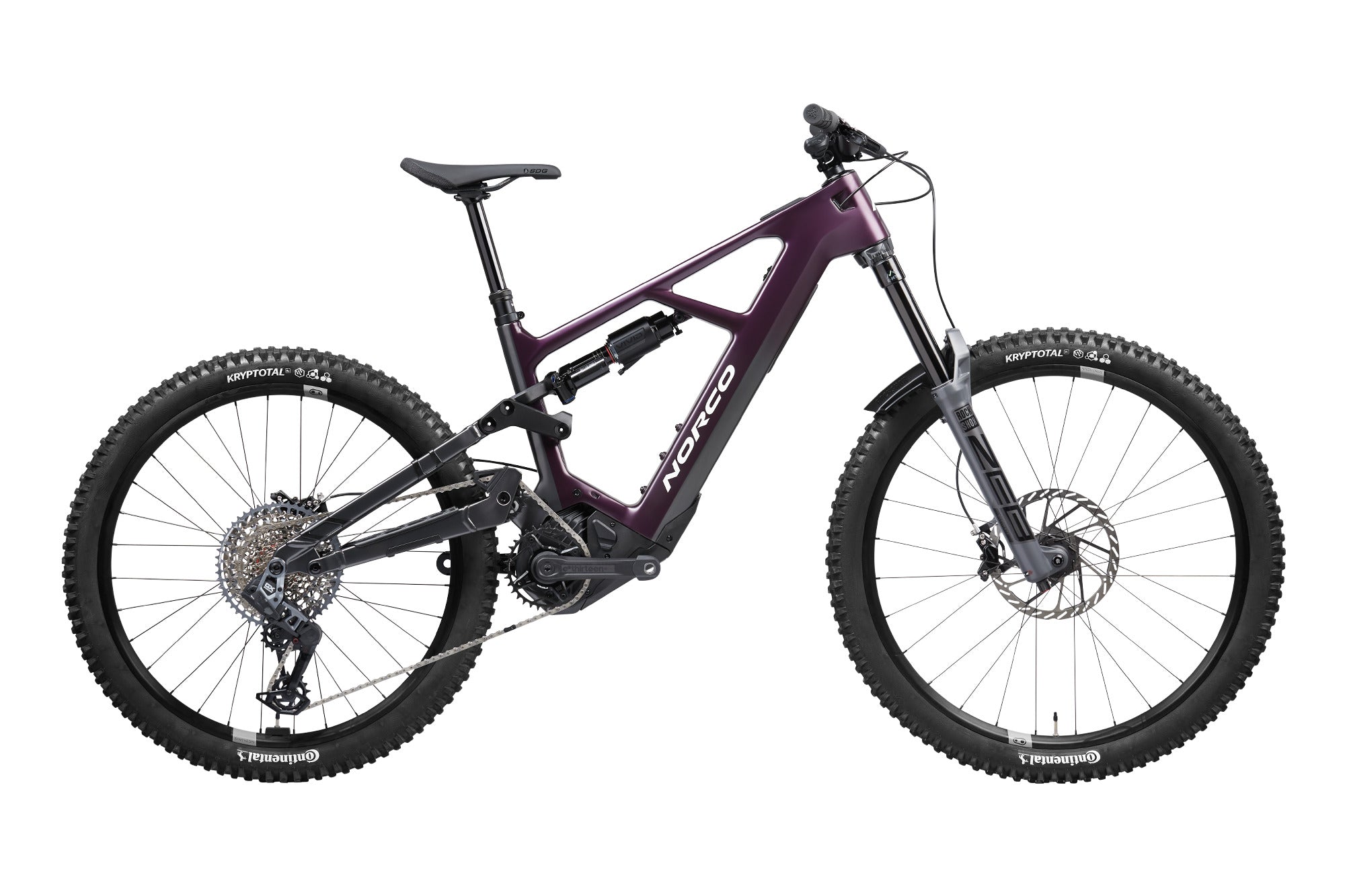

Meet the Range VLT C1, with 180/170 mm of travel, made for riders who are into tackling rowdy terrain and then taking it up another notch into absolute beast mode. Whether riding up or down, the all-day battery means you don’t need to pick one trail; you can take them all.
| Frame |
Carbon Front Triangle, Aluminum CS & SS, High Pivot Horst Suspension, 170mm Travel, UDH, Hangerless Interface Compatible, Ride Aligned™ |
| Fork |
RockShox Zeb Ultimate, 180mm Travel, E-MTB Rated, Fender Included |
| Rear Shock |
RockShox Vivid Select+, 230x65mm |
| Rear Shifter |
SRAM AXS POD Controller, Discrete Clamp |
| Rear Derailleur |
SRAM GX Eagle AXS T-Type |
| Crankset |
e*Thirteen e*Plus 165mm |
| Bottom Bracket |
Bosch BES3 DU |
| Cassette |
SRAM 1275 T-Type 10-52T |
| Chain |
SRAM GX Eagle T-Type |
| Front Brake |
SRAM Code RSC 4 Piston, Sintered Pads |
| Front Brake Rotor |
SRAM HS2 220mm |
| Rear Brake |
SRAM Code RSC 4 Piston, Sintered Pads |
| Rear Brake Rotor |
SRAM HS2 200mm |
| Brake Levers |
SRAM Code RSC |
| Handlebar |
Butted 6061 Alloy, 800mm, 25mm Rise |
| Stem |
6061 Alloy, 40mm Length, 35mm Clamp |
| Seatpost |
TranzX YSI08FL RAD+ Travel Adjust Dropper, 34.9mm, 125mm (S1), 150mm (S2),170mm (S3), 200mm (S4, S5) |
| Headset |
FSA No. 55 Sealed Bearing, 1 1/8" - 1.8" Tapered |
| Headset Spacer |
2 x 10mm, 1x 5mm |
| Saddle |
SDG Bel Air V3 Lux Alloy |
| Grips |
WTB Wavelength |
| Seatpost Clamp |
Norco Alloy Nutted Clamp, 38.5mm |
| Front Hub |
Crank Brothers Synthesis E-Bike, 15x110mm Boost, 6 Bolt |
| Rear Hub |
Crank Brothers Synthesis E-Bike, 12x148mm, XD, 6 Bolt |
| Rims |
Crank Brothers Synthesis E-Bike, 32H, 27.5"/29" |
| Front Tire |
Continental Kryptotal-F Enduro 29" x 2.4", Foldable |
| Rear Tire |
Continental Kryptotal Enduro 27.5" x 2.4", Foldable |
| Rear Hub Skewer |
Axle Assembly. L174, TL13, M12x1.0 |
| Front Hub Skewer |
RockShox Maxle Stealth 110x15 |
| Spokes/Nipples |
Crank Brothers Synthesis |
| Drive Unit |
Bosch Performance Line CX, 85Nm |
| Battery |
Bosch PowerTube 750Wh |
| Feature 1 |
Bosch Smart System Rim Magnet |
| Feature 2 |
Bosch PowerMore 250 Range Extender* (Not Included) * Compatible with S3-5 |
