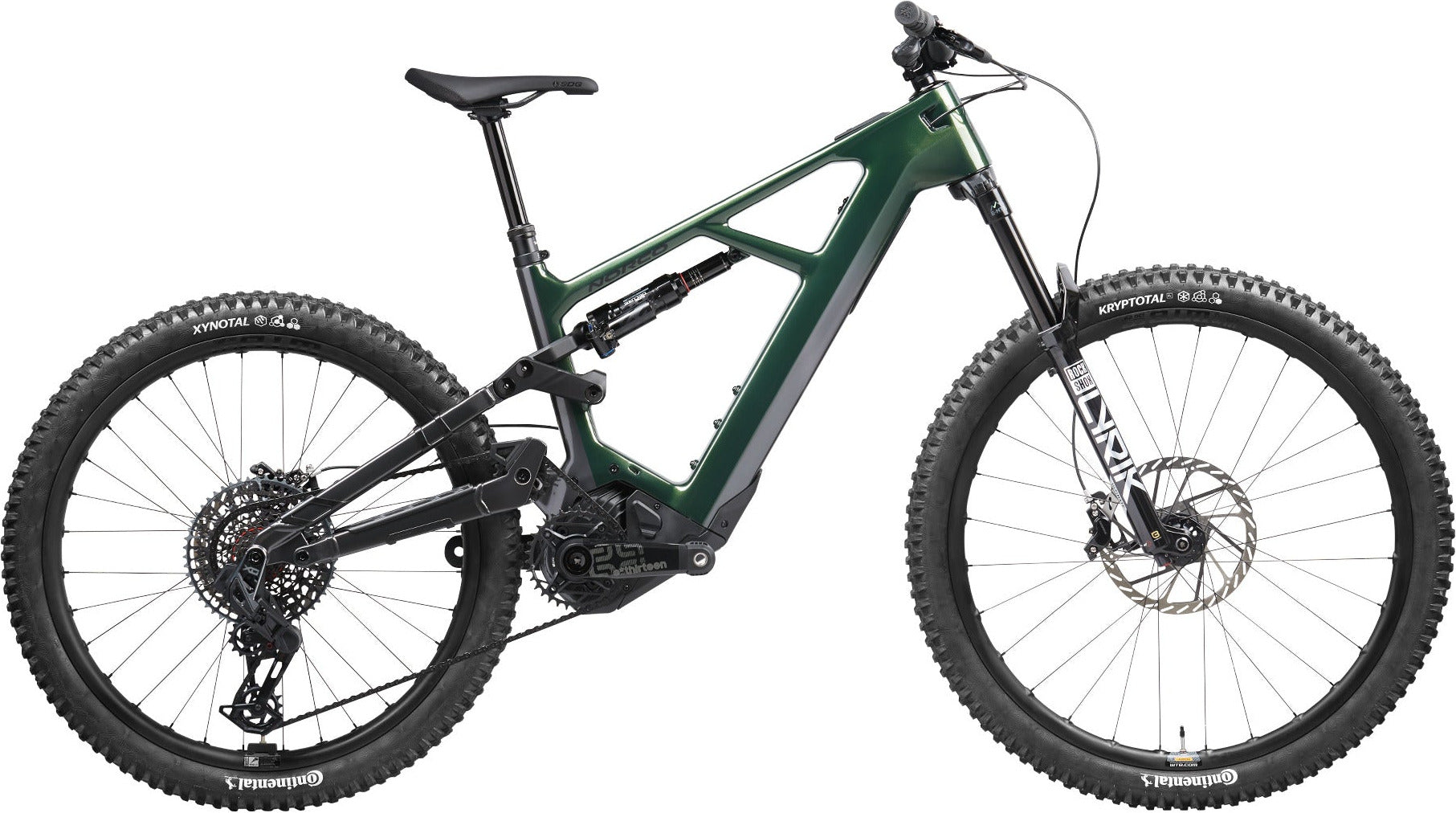

2024 Norco Sight VLT C1
By
Norco
SKU:
0281814154
$13,999.00
Unit price
/
Inquire for Availability
Description
For those who regularly seek out diverse technical trails, up and down, with a need for unwavering confidence and an unmatched e-MTB performance. A full power, all-mountain machine with 160mm/150mm of travel that allows you to dig deeper, commit harder and climb higher than ever without consequence. Sight VLT eliminates the downside to going up - crush every technical climb and traverse every trail; tackle your own epic excursion through the backwoods.
Key Features:
- The latest in integrated e‑MTB technology from Bosch.
- Reactive pedal-efficiency, and stability.
- Size-specific geometry, available in carbon.
- VPSHP Suspension Platform.
- The Bosch Performance Line CX motor with Smart System and 750Wh battery.
- Control your assist and range with the Bosch eBike Flow App
- Set up like a Pro – features the Ride Aligned™ Setup Guide.
- No Other Way Limited Lifetime Warranty.
Specs:
-
Frame
- Carbon Front Triangle & Seatstay, Aluminum Chainstay, High Pivot Horst Suspension, 150mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™
-
Fork
- RockShox Lyrik Ultimate RC2,160mm Travel, 44mm Offset, E-MTB Rated, Fender Included
-
Rear Shock
- RockShox Super Deluxe Ultimate, 230x60mm
-
Rear Shifter
- SRAM AXS POD Controller, Discrete Clamp
-
Rear Derailleur
- SRAM X0 Eagle AXS T-Type
-
Crankset
- e*Thirteen e*Race Carbon, 165mm
-
Bottom Bracket
- Bosch BES3 DU
-
Cassette
- SRAM 1295 Eagle T-Type, 10-52T
-
Chain
- SRAM XO Eagle T-Type
-
Front Brake
- SRAM Code RSC 4 Piston, Sintered Pads
-
Front Brake Rotor
- SRAM HS2 220mm
-
Rear Brake
- SRAM Code RSC 4 Piston, Sintered Pads
-
Rear Brake Rotor
- SRAM HS2 200mm
-
Brake Levers
- SRAM Code RSC
-
Handlebar
- One Up Carbon, 800mm, 20mm Rise
-
Stem
- 6061 Alloy, 40mm Length, 35mm Clamp
-
Seatpost
- TranzX YSI08FL RAD+ Travel Adjust Dropper, 34.9mm, 125mm (S1), 150mm (S2),170mm (S3), 200mm (S4, S5)
-
Headset
- FSA No.55 Sealed Bearing, 1 1/8" - 1.5" Tapered, ( ZS44/28.6 | ZS56/40 )
-
Saddle
- SDG Bel Air V3 Lux Alloy
-
Grips
- WTB Wavelength
-
Seatpost Clamp
- Norco Alloy Nutted Clamp, 38.5mm
-
Front Hub
- WTB CZR, 15x110mm Boost, 6 Bolt
-
Rear Hub
- WTB CZR, 12x148mm Boost, XD, 6 Bolt
-
Rims
- WTB CZR i30 Carbon, 27.5"/32H Rr, 29"/28H Ft
-
Front Tire
- Continental Kryptotal-F Trail Endurance 29" x 2.4", Foldable
-
Rear Tire
- Continental Xynotal Enduro 27.5" x 2.4", Foldable
-
Spokes/Nipples
- WTB CZR
-
Drive Unit
- Bosch Performance Line CX, 85Nm
-
Battery
- Bosch PowerTube 750Wh
Norco Bikes Sizing Charts
Fat Bikes (Ithaqua / Bigfoot / Bigfoot VLT / Sasquatch)
| Rider Height (Inches) | Rider Height (Metric) | Frame Size |
|---|---|---|
| 5'1"-5'5" | 155-165cm | Small |
| 5'4"-5'9" | 164-174cm | Medium |
| 5'8"-6'0" | 172-182cm | Large |
| 5'11"-6'3" | 181-191cm | XL |
Enduro / All Mountain / Trail / XC (Revolver / Optic / Torrent / Sight / Sight VLT / Range / Range VLT / Fluid / Fluid VLT)
| Rider Height (Inches) | Rider Height (Metric) | Frame Size |
|---|---|---|
| 4'9"-5'2" | 146-156cm | XS |
| 5'1"-5'5" | 155-165cm | Small |
| 5'4"-5'9" | 164-174cm | Medium |
| 5'8"-6'0" | 172-182cm | Large |
| 5'11"-6'4" | 181-191cm | XL |
| 6'3""-6'7" | 190-200cm | XXL |
Cross Country (Charger / Charger VLT / Storm)
| Rider Height (Inches) | Rider Height (Metric) | Frame Size |
|---|---|---|
| 4'6"-4'10" | 137-147cm | XXS |
| 4'9"-5'2" | 146-156cm | XS |
| 5'1"-5'5" | 155-165cm | Small |
| 5'4"-5'9" | 164-174cm | Medium |
| 5'8"-6'0" | 172-182cm | Large |
| 5'11"-6'4" | 181-191cm | XL |
Dirt Jump (Rampage)
| Rider Height (Inches) | Rider Height (Metric) | Frame Size |
|---|---|---|
| 5'1"-5'5" | 155-165cm | Small |
| 5'4"-5'9" | 164-174cm | Medium |
| 5'8"-6'0" | 172-182cm | Large |
Free Ride (Shore)
| Rider Height (Inches) | Rider Height (Metric) | Frame Size |
|---|---|---|
| 5'1"-5'5" | 155-165cm | Small |
| 5'4"-5'9" | 164-174cm | Medium |
| 5'8"-6'0" | 172-182cm | Large |
| 5'11"-6'4" | 181-191cm | XL |
