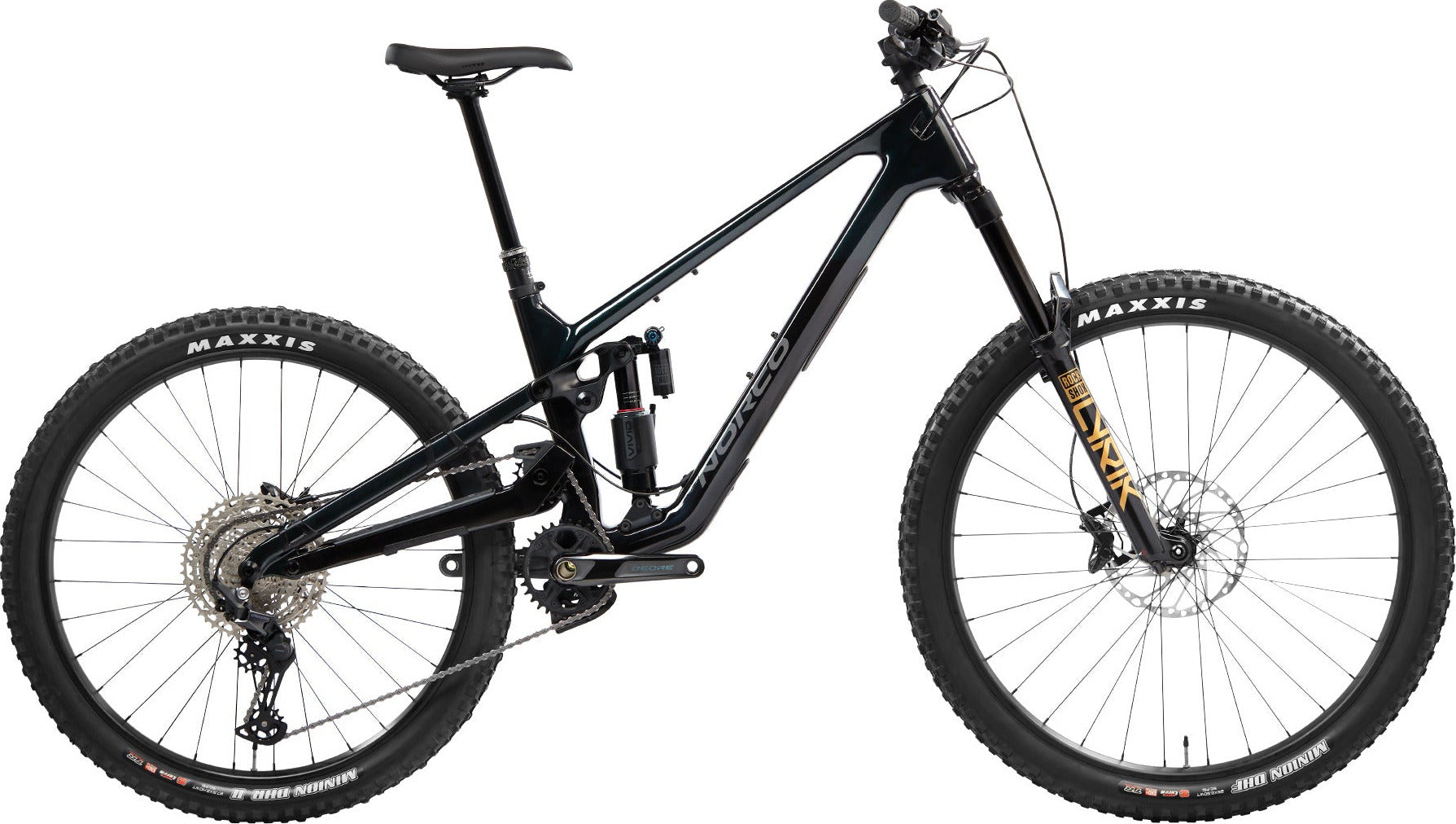

Whether you’re carving down a steep loam line, dropping in for an enduro stage, or heading into the backcountry for an all-day epic, this bike performs. With increased rearward axle path, idler, and the innovative VPSHP suspension layout, this new design gives the Sight next level confidence and capability, up or down the mountain. With 160/150mm of travel, the 2024 Sight takes the best of the Range platform and has tightened it up into a light, pedal friendly, maneuverable, high-pivot package.
VPSHP Suspension Platform
Designed around Norco’s VPSHP (Virtual Pivot Suspension | High Pivot) suspension layout, it increases rearward axle path to improve suspension performance in technical terrain, while retaining the dynamic and responsive feel that riders expect from a do-it-all All-Mountain bike.
With 160/150mm of travel, the 2024 Sight takes the best of the Range platform and has tightened it up into a light, pedal friendly, maneuverable, high-pivot package.
Through extensive testing using an i-track configured idler location, anti-squat has been tuned for efficiency and responsive feel under power. The idler mounted to the chainstay manages chain growth and pedal-kickback.
Swapping the linkarm and lower shock mount with our “Missing Link Kit” converts between 29” and 27.5” to let you pick the wheelsize that suits you best, while maintaining geometry and kinematics to ensure consistent fit and bike setup.
Frame |
Sight Carbon, VPS HP, 150mm Travel, UDH Compatible |
Fork |
RockShox Lyrik Select, Charger RC, DebonAir+, 160mm, 44mm Offset |
Rear Shock |
RockShox Vivid Select+ Air, 205x60mm Trunnion |
Rear Shifter |
Shimano Deore SL-M6100-R RapidFire Plus |
Rear Derailleur |
Shimano Deore RD-M6100 |
Crankset |
Shimano Deore FC-MT6120-1, 30T, 170mm |
Bottom Bracket |
Shimano Sealed Bearing BSA Threaded |
Cassette |
Shimano Deore CS-M6100-12, 12 Speed, 10-51T |
Chain |
Shimano Deore CN-M6100 |
Chain Guide |
Norco Idler Guide and Lower Guide |
Front Brake |
Shimano Deore MT520 4-Piston, Metallic Pads |
Front Brake Rotor |
Shimano RT-64, 203mm |
Rear Brake |
Shimano Deore MT520 4-Piston, Metallic Pads |
Rear Brake Rotor |
Shimano RT-64, 180mm |
Brake Levers |
Shimano Deore MT-520 |
Handlebar |
6061 Alloy, 800mm, 25mm Rise |
Stem |
Alloy 40mm Length, 35mm Clamp |
Seatpost |
TranzX YS105 Dropper, 34.9mm, 150mm (1), 170mm (2), 200 (3, 4), 230mm (5) |
Headset |
FSA #57 E, Sealed Bearing |
Saddle |
WTB Volt 250 Sport |
Grips |
WTB Waffle |
Seatpost Clamp |
Norco Alloy Nutted Clamp |
Front Hub |
Shimano HB-TC500 15x110mm Boost, Center Lock |
Rear Hub |
Shimano FH-TC500, 12x148mm Boost, Micro Spline, Center Lock |
Rims |
Stan's Flow D, Black 32H, 29"/29" |
Front Tire |
Maxxis Minion DHF 2.5", 3C, MaxxTerra / EXO+ / TR, Folding |
Rear Tire |
Maxxis Minion DHR II 2.4" WT, 3C, MaxxTerra / EXO+ / TR, Folding |
Spokes/Nipples |
Stainless Steel, Black |
Weight |
16.1 kg (35.5 lbs) |
Weight Size |
S3 |
