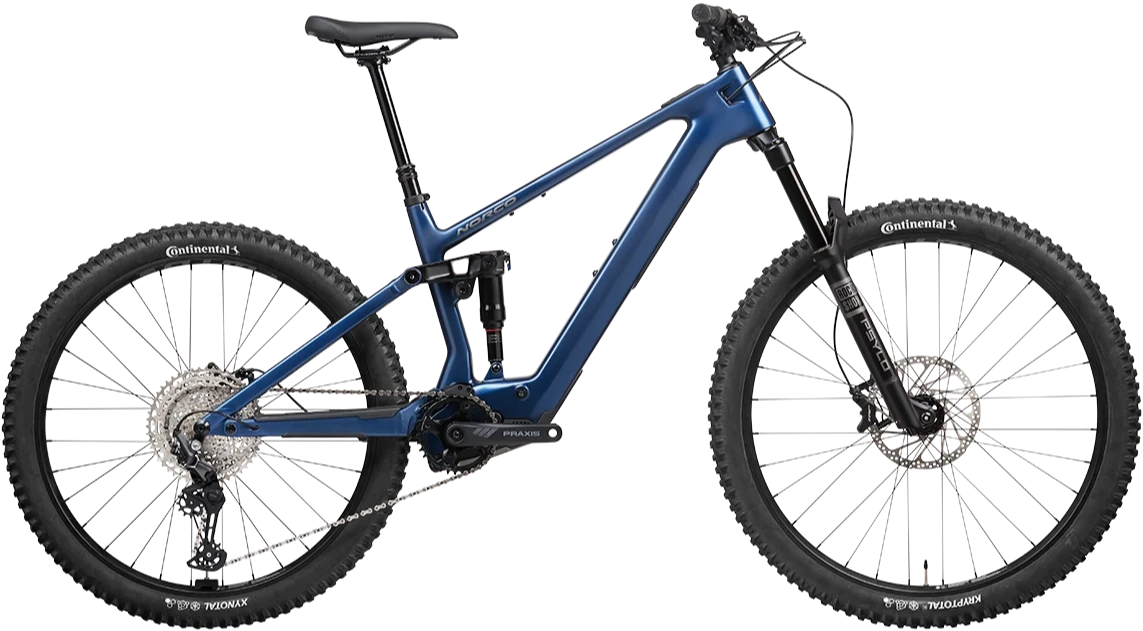

Get more rides in and make the most of every minute of the lightweight Fluid VLT C3 140. Featuring the next-level Bosch Performance Line SX drive system, and 140mm of precision-tuned suspension, integrating mixed wheels across all 5 frame sizes for optimum weight balance & handling.
| Frame |
Fluid VLT Carbon Front Triangle, Alloy SS and CS, 27.5" Wheel, 140mm Travel, UDH, Hangerless Interface Compatible, Ride Aligned™ |
| Fork |
RockShox Psylo Gold RC, 150mm Travel, 44mm Offset |
| Rear Shock |
RockShox Deluxe Select+, 185x55mm Trunion |
| Rear Shifter |
Shimano Deore SL-M6100 |
| Rear Derailleur |
Shimano Deore RD-M6100 |
| Crankset |
Praxis Alloy HD eMTB, 165mm |
| Cassette |
Shimano Deore CS-M6100-12 11-51T, 12 Speed |
| Chain |
KMC e12 |
| Front Brake |
TRP Slate EVO, 4 Piston |
| Front Brake Rotor |
TRP TR203, 203mm, 2.3mm Thick |
| Rear Brake |
TRP Slate EVO, 4 Piston |
| Rear Brake Rotor |
TRP TR180, 180mm, 2.3mm Thick |
| Brake Levers |
TRP Slate EVO for Shimano I-Spec |
| Handlebar |
6061 Butted Alloy, 800mm, 25mm Rise |
| Stem |
6061 Alloy 40mm Length, 35mm Clamp |
| Seatpost |
TranzX YSI34 Dropper, 125mm (S1), 150mm (S2), 170mm (S3), 200mm (S4, S5) |
| Headset |
Sealed ZS |
| Headset Spacer |
Carbon, 2x10mm, 1x5mm |
| Saddle |
WTB Volt Med |
| Grips |
WTB Wavelength |
| Front Hub |
Bear Pawls 110x15mm Boost, 6 Bolt |
| Rear Hub |
Bear Pawls, 6 Pawl 3 Sealed Bearing, Steel Driver Body, 6-Bolt, Micro Spline |
| Rims |
WTB ST Tough 32H, 27.5" Rear, 29" Front, 30mm ID |
| Front Tire |
Continental Kryptotal 29" x 2.4" Trail |
| Rear Tire |
Continental Xynotal 27.5" x 2.4" Trail |
| Drive Unit |
Bosch Performance Line SX |
| Battery |
Bosch CPT 400Wh |
| Weight |
20.3 kg (44.7 lbs) |
| Weight Size |
S3 |
