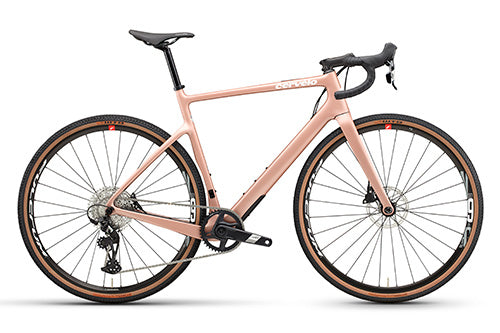

2024 Cervelo Aspero Apex XPLR 1 SC
Description
MULTIPLE CONFIGURATIONS
We designed Aspero with clearance for up to 700c x 40mm tires or 650b x 49mm tires. Of course, there are variables—rim width, tire casing, and tread depth—which will affect final clearance. We always recommend 4mm of clearance between the tire and frame.
**New Shimano road (not gravel) 12 speed front derailleurs reduce tire clearance in the rear of the frame to 700 x 38c or 650b x 45c.
TWO-POSITION ADJUSTMENT
Trail—front-wheel response to rider input—is the most critical factor in high-velocity handling. Flipping the two-position "Trail Mixer" to compensate for the difference in circumference between a 650b and 700c tire maintains consistent handling by maintaining consistent trail figures.
BALANCED HANDLING
Stiffness and handling work together to ensure the bike tracks predictably and responds immediately to critical pedal and bracing inputs.
| Fork | Cervélo All-Carbon, Tapered Aspero Fork |
| Headset | FSA IS2 1-1/4 x 1-1/2 |
| Stem | Cervélo ST36 Alloy, w Cable Management |
| Handlebar | Zipp Service Course 70 XPLR Alloy, 31.8mm clamp, 5 degree flare, 11 degree outsweep |
| Seatpost | Cervélo Alloy 27.2 15mm Offset |
| Saddle | Cervélo Saddle |
| Brake Calipers | SRAM Apex |
| Brake Rotor | SRAM Centerline 6-Bolt |
| Rear Derailleur | SRAM Apex XPLR, 12 speed |
| Cassette | SRAM Apex XLPR, 11-44, 12 speed |
| Chain | SRAM Apex, 12 speed |
| Crankset | SRAM Apex 1, 40T, DUB Wide |
| Bottom Bracket | SRAM DUB Wide, T47 BBright |
| Wheels | Front: Alexrims Boondocks 7D, 12x100mm, 28H, 23mm IW, 6 bolt, tubeless compatible Rear: Alexrims Boondocks 7D, 12x142mm, 28H, 23mm IW, HG freehub, 6 bolt, tubeless compatible |
| Thru Axles | Cervelo Aero Thru-Axles, 12x100/142 |
| Tires | WTB Vulpine TCS Light Fast Rolling Dual DNA 60tpi 700x40c |
| Accessories | Smartpak 400A Top Tube Storage Bag |
