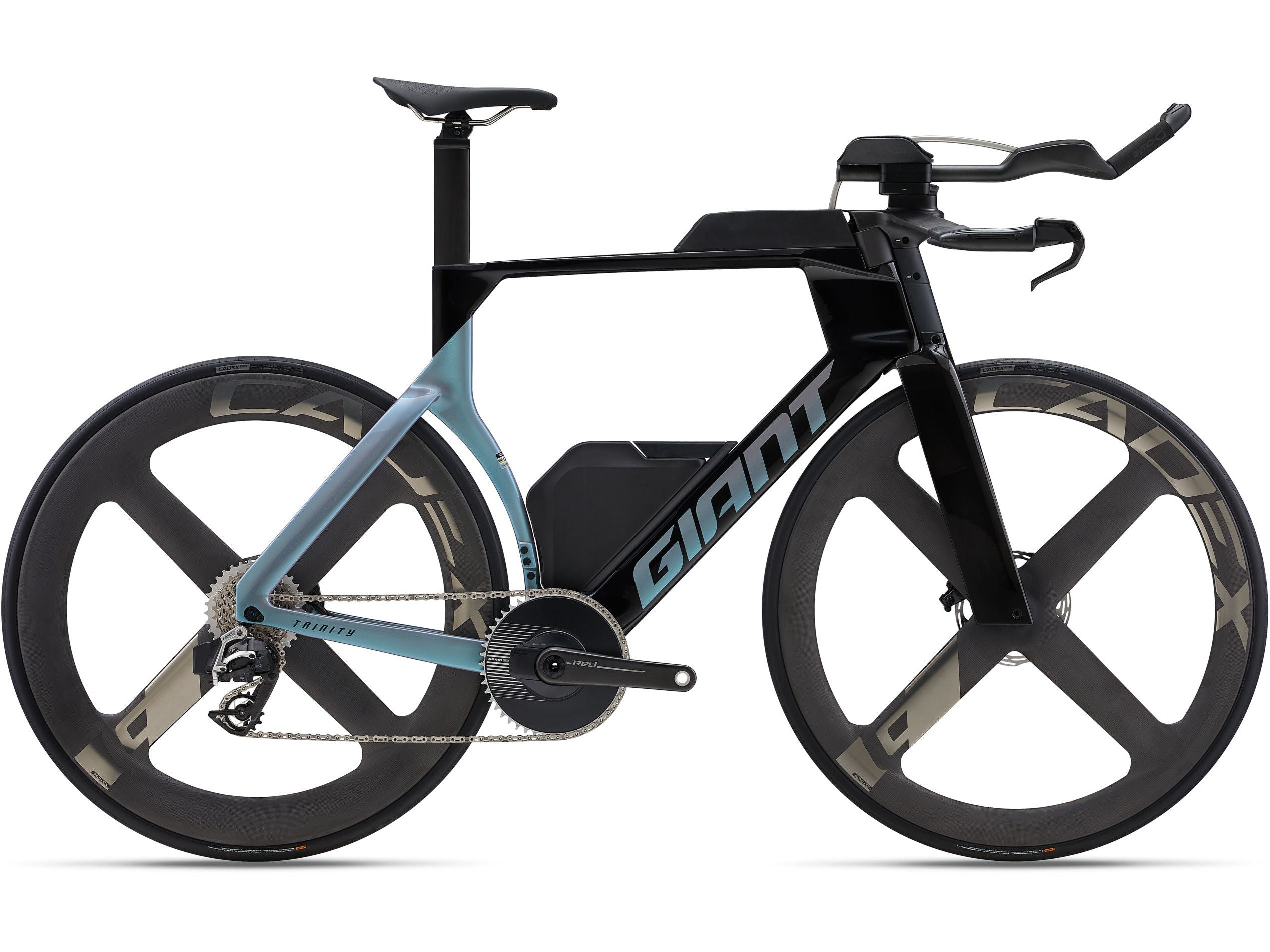

From windswept flats to climbs, corners and descents, the new Trinity Advanced SL delivers dynamic speed and control when every second counts. Easily adaptable to triathlon or TT, and featuring aero-integrated hydration and fueling systems, it’s lighter, more aerodynamic and smoother riding than the previous generation, with greater adjustability to dial in position and fit.

FULL-SPEED DYNAMICS

All-new composite frameset designed for flat-out speed and pinpoint control when racing against the clock. 558g less weight for faster climbing, integrated disc brakes for confident cornering and descending, added compliance for smoother ride performance, plus an integrated bento box and hydration straw to help riders produce full power without disturbing their riding position.

ULTIMATE AERO EFFICIENCY

AeroSystem Shaping Technology with truncated ellipse tubing for a 5.9-watt aero advantage and greater stiffness-to-weight ratio over previous generation Trinity. In addition, the hydration reservoir, bottles and bento box form an aero-optimized, integrated fueling system.

PERSONALIZED FIT

With a far greater range of adjustability compared to previous Trinity models—including four seatpost offset positions (51mm range) and 24x more armrest positioning options (stack, reach, angle and width)—it’s easier than ever to dial in fit for all body types and any riding position using simple two-bolt mechanisms.

Specs

• Frame

  • Advanced SL-Grade Composite, 12x142mm thru-axle, disc
• Fork

  • Advanced SL-Grade Composite, full-composite steerer, 12x100mm thru-axle, disc
• Handlebar

  • AeroDrive base bar
• Grips

  • Giant ErgoContact
• Stem

  • AeroDrive integrated stem
• Seatpost

  • Trinity Composite
• Saddle

  • Giant Contact SL Tri
• Arm Rest Kit

  • Sync rest armset

• Extension Bars

  • 10 and 15-degree extension wedge
• Shifters

  • SRAM eTap AXS WireBlips - extension and basebar mounted
• Front Derailleur

  • N/A
• Rear Derailleur

  • SRAM RED AXS E1
• Brakes

  • SRAM S-900 Aero hydraulic, SRAM PaceLine X rotors [F]160mm, [R]140mm
• Brake Levers

  • SRAM S-900 Aero
• Cassette

  • SRAM RED E1, 12-speed, 10x33
• Chain

  • SRAM RED E1
• Crankset

  • SRAM RED 1 E1 AXS, 48t with SRAM power meter XS:160mm, S:165mm, M:170mm, L:172.5mm
• Bottom Bracket

  • SRAM DUB, press fit
• Rims

  • CADEX 4-Spoke Disc WheelSystem
• Hubs

  • [F] Giant Low Friction Hub, CenterLock, 12mm thru-axle [R] Giant Low Friction Hub, 40t ratchet driver, CenterLock, 12mm thru-axle
• Spokes

  • CADEX 4-Spoke Disc WheelSystem
• Tires

  • CADEX Aero, tubeless, 700x25c (26.5mm), folding
• Extras

  • TT storage, hydration kit, computer mount, tubeless prepared, 30mm max tire size
• Max Tire Clearance

  • 30mm
