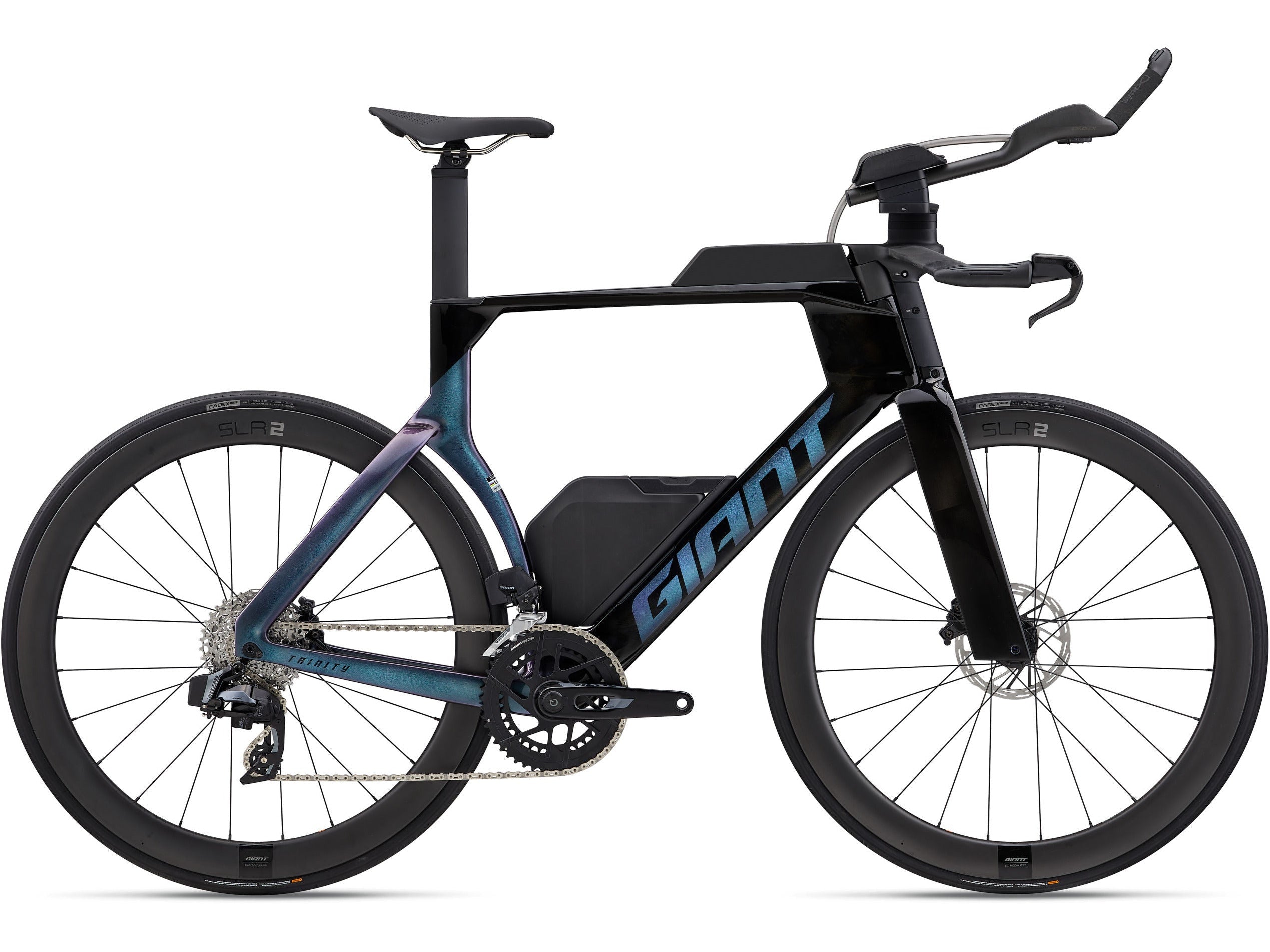

From windswept flats to climbs, corners and descents, the new Trinity Advanced SL delivers dynamic speed and control when every second counts. Easily adaptable to triathlon or TT, and featuring aero-integrated hydration and fueling systems, it’s lighter, more aerodynamic and smoother riding than the previous generation, with greater adjustability to dial in position and fit.

FULL-SPEED DYNAMICS

All-new composite frameset designed for flat-out speed and pinpoint control when racing against the clock. 558g less weight for faster climbing, integrated disc brakes for confident cornering and descending, added compliance for smoother ride performance, plus an integrated bento box and hydration straw to help riders produce full power without disturbing their riding position.

ULTIMATE AERO EFFICIENCY

AeroSystem Shaping Technology with truncated ellipse tubing for a 5.9-watt aero advantage and greater stiffness-to-weight ratio over previous generation Trinity. In addition, the hydration reservoir, bottles and bento box form an aero-optimized, integrated fueling system.

PERSONALIZED FIT

With a far greater range of adjustability compared to previous Trinity models—including four seatpost offset positions (51mm range) and 24x more armrest positioning options (stack, reach, angle and width)—it’s easier than ever to dial in fit for all body types and any riding position using simple two-bolt mechanisms.

Specs

• Frame

  • Advanced SL-Grade Composite, 12x142mm thru-axle, disc
• Fork

  • Advanced SL-Grade Composite, full-composite steerer, 12x100mm thru-axle, disc
• Handlebar

  • AeroDrive base bar with Sync armrest set, 10 and 15-degree extension wedge
• Stem

  • Giant base bar with integrated stem combination with Sync rest set, 10 and 15-degree extension wedge
• Seatpost

  • Trinity Composite
• Saddle

  • Giant Contact SL Tri
• Arm Rest Kit

  • Sync rest armset
• Shifters

  • SRAM eTap Clics - extension mounted, SRAM eTap Blips - basebar mounted
• Front Derailleur

  • SRAM Rival AXS
• Rear Derailleur

  • SRAM Rival AXS D2
• Brakes

  • SRAM S-900 Aero hydraulic, SRAM PaceLine X rotors [F]160mm, [R]140mm
• Brake Levers

  • SRAM S-900 Aero AXS
• Cassette

  • SRAM Rival, 12-speed, 10x36
• Chain

  • SRAM Force D1
• Crankset

  • SRAM Rival AXS, 35/48 with power meter XS:160mm, S:165mm, M:170mm, L:172.5mm
• Bottom Bracket

  • SRAM DUB, press fit
• Rims

  • Giant SLR 2 50 WheelSystem, [F]40mm, [R]40mm
• Hubs

  • [F] Giant Low Friction Hub, CenterLock, 12mm thru-axle [R] Giant Low Friction Hub, 30t ratchet driver, CenterLock, 12mm thru-axle
• Spokes

  • Giant Aero Carbon Spoke
• Tires

  • CADEX Aero, tubeless, 700x25c (26.5mm), folding
• Extras

  • TT storage, hydration kit, computer mount, tubeless prepared, 30mm max tire size
• Max Tire Clearance

  • 30mm
