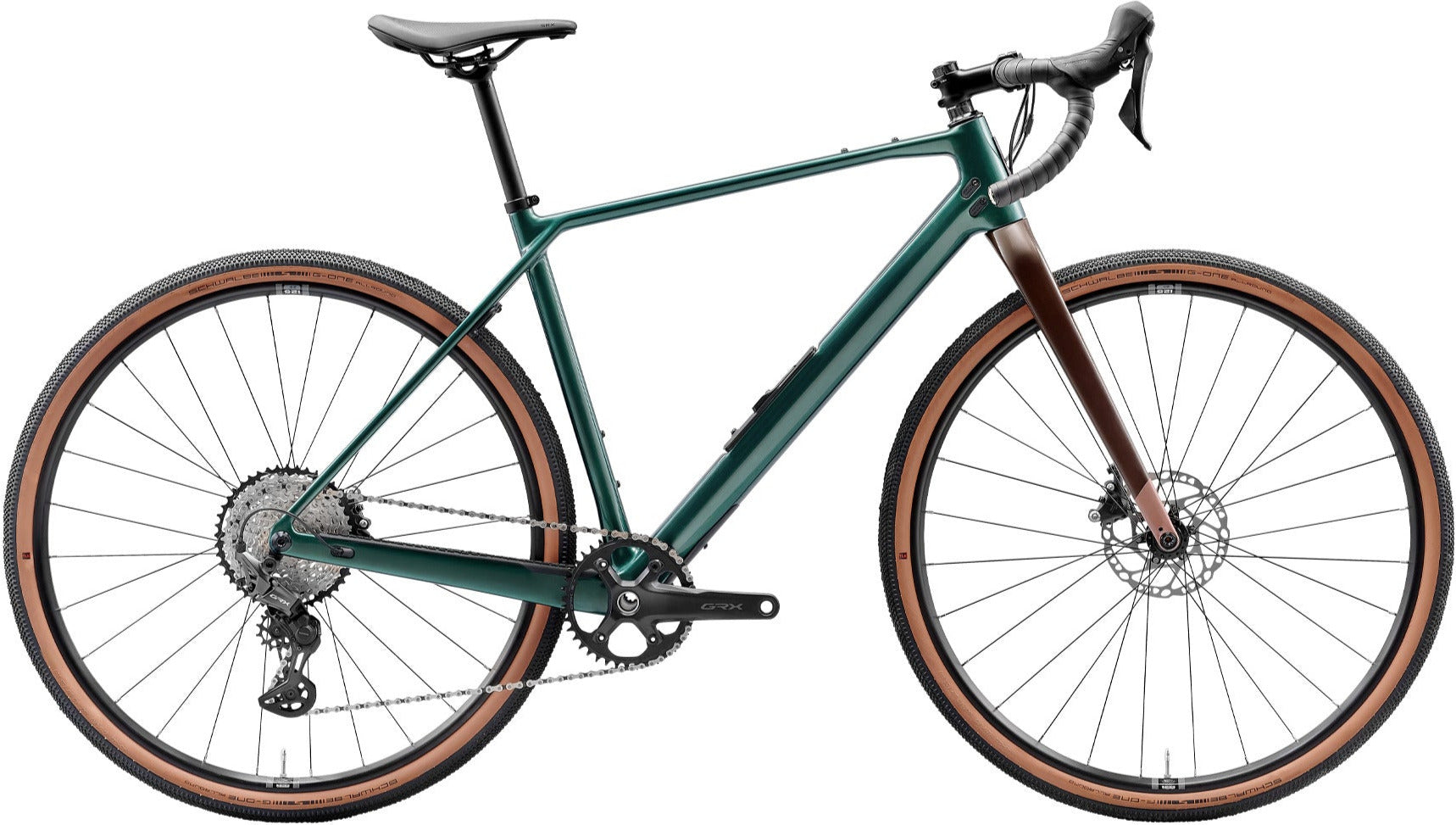

Singletrack, dirt roads, city parks, even the most remote backcountry trails – are you roaming or racing? Search C GRX is ready for your next gravel adventure with modern gravel geo, a lightweight full carbon frame featuring Norco's proprietary downtube storage, tire clearance up to 50c, and full-coverage fender and toptube bag mounts.
| Frame |
Search Carbon w/ DT Storage, UDH Compatible |
| Fork |
Search Carbon, 51mm Offset, 12x100mm TA |
| Rear Shifter |
Shimano GRX ST610, 12sp |
| Rear Derailleur |
Shimano GRX RD-RX822, 10-45T, 12sp, GS |
| Front Shifter |
Shimano GRX ST610, 1x |
| Crankset |
Shimano GRX FC-RX610 40T, 47CL, 165mm (S1,S2) - 170mm (S3,S4) - 172.5mm (S5) |
| Bottom Bracket |
Shimano BSA 68mm |
| Cassette |
Shimano CS-M7100, 10-45T, 12sp |
| Chain |
KMC X12 |
| Front Brake |
Shimano BR-RX400, Resin w/o Fin |
| Front Brake Rotor |
Shimano SM-RT64, 160mm, c-lock |
| Rear Brake |
Shimano BR-RX400, Resin w/o Fin |
| Rear Brake Rotor |
Shimano SM-RT64, 160mm, c-lock |
| Brake Levers |
Shimano GRX ST610 |
| Handlebar |
Norco Super Flare Aluminum Compact, 40cm (S1,S2) - 42cm (S3) - 44cm (S4) - 46cm (S5), 16 Degree |
| Stem |
Norco SL Alloy 70mm Length, 31.8mm Clamp |
| Seatpost |
Norco Alloy, 27.2mm, 0Deg Offset, 350mm length |
| Headset |
FSA Integrated Sealed Bearings No. 42 ; Tapered 1-1/8" - 1.5" ( IS42/28.6 | IS52/40 ) |
| Saddle |
Selle Royale SRX Gravel, 148mm |
| Grips |
Griptacular Shockproof Tape 3mm |
| Seatpost Clamp |
Norco Aluminum, 31.8mm ID |
| Front Hub |
Shimano HB-TC500 Sealed Bearing, 12x100mm, 28H, C-lock |
| Rear Hub |
Shimano FH-TC500 Sealed Bearing, 12x142mm, Micro Spline, 28H, C-lock |
| Rims |
WTB ST i25 2.0, 28h, 25mm ID |
| Front Tire |
Schwalbe G-One All Round, Race Guard, 700x45c |
| Rear Tire |
Schwalbe G-One All Round, Race Guard, 700x45c |
| Spokes/Nipples |
Double Butted, Black Alloy |
| Valves |
WTB TCS Tubeless Valve, Brass |
| Sealant |
WTB TCS Tubeless Tire Sealant, 8oz/236ml |
| Rim Tape |
WTB TCS 2.0 Solid Strip |
| Weight |
9.5 kg (20.9 lbs) |
| Weight Size |
S3 |
