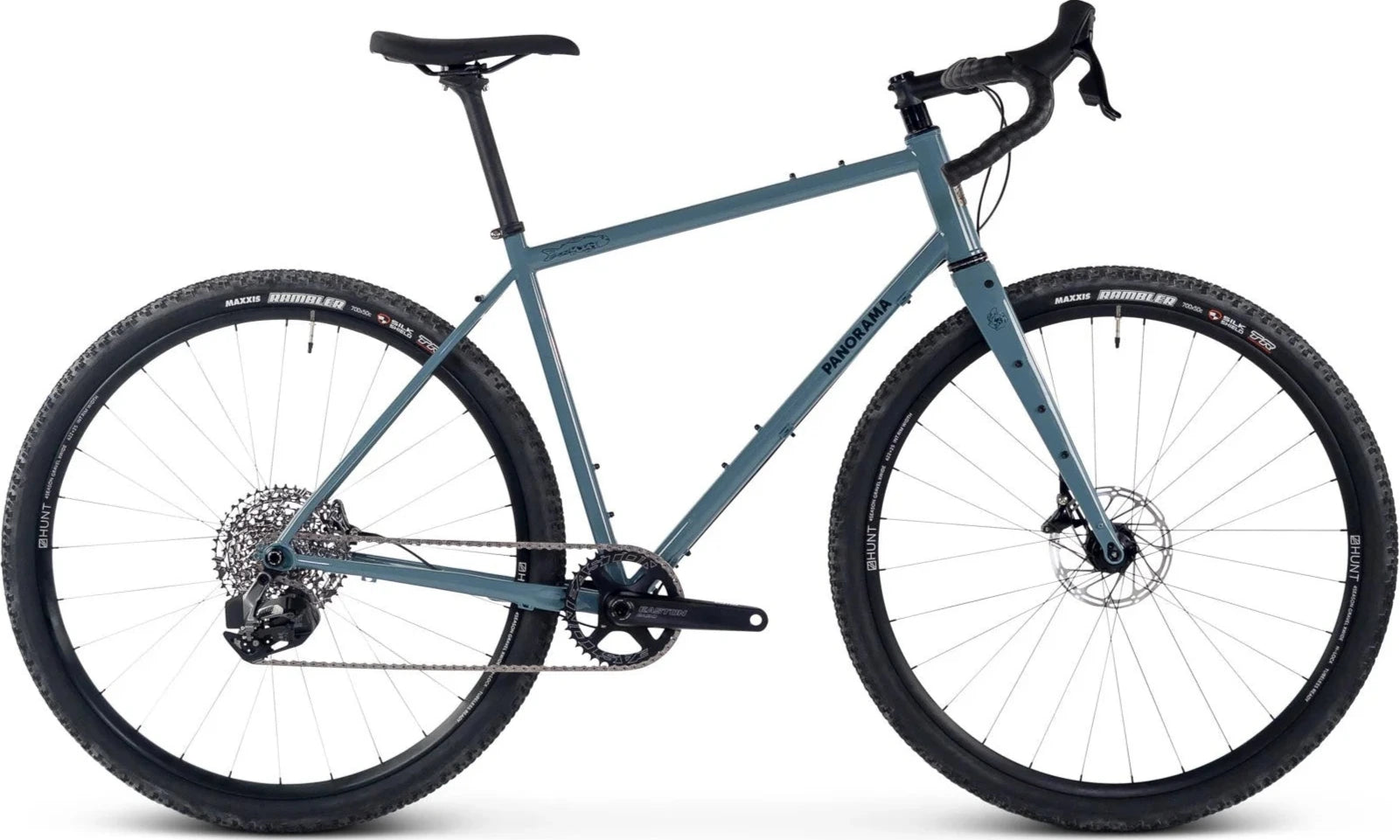

2025 Panorama Cycles Anticosti RX610 2x 700C

By Panorama Cycles
$4,099.00
Size
Colour
Wheel Size
Description

Thanks to its comfortable geometry, lightweight tubing selection and excellent tire clearance, the Anticosti is created for long outings on backcountry roads, and for bikepacking or light touring missions.

With a custom selection of Reynolds 725 steel tubing for each frame size, the balance is struck between weight, comfort and performance. For this new generation, tire clearance is increased to 29x2.1¨, internal cable routing for dropper is added and the UDH standard makes it easy to replace the derailleur hanger or use T-Type drivetrains.

Do you want to optimize your bike's weight and performance, or would you prefer a fork that can adapt to every style of rack on the market? The Anticosti is now available in carbon or steel fork configurations.

*The frameset comes complete with wheel axles, installed headset, seatpost collar and frame protectors.

Frame:
SIZE-SPECIFIC BUTTED REYNOLDS 725 TUBESET
ELECTRODEPOSITION SURFACE TREATMENT (CORROSION PROTECTION)
12MMX142MM THRU AXLE
BSA 68mm BOTTOM BRACKET
UDH - T-TYPE TRANSMISSION COMPATIBLE
INTERNAL CABLE ROUTING FOR DROPPER SEAT POST
FLAT MOUNT DISC BRAKE
REAR RACK MOUNTS
WATER BOTTLE MOUNTS UNDER AND OVER THE DOWNTUBE
WATER BOTTLE MOUNTS ON SEAT TUBE
GAS TANK MOUNT ON TOP OF TOP TUBE
FENDER MOUNTS
29.8MM SEAT CLAMP
27.2MM SEATPOST
28.6MM FRONT DERAILLEUR CLAMP
HEADSET: TOP ZS44 LOWER EC44
MAX CHAINRING: 46T
TIRE CLEARANCE: 29X2.1¨
COLOUR: MUTED BLUE

Build Options

T1: SHIMANO CUES 1X11 / EASTON

T2: SHIMANO GRX 1×12

T3: SHIMANO GRX 2×12

T4: SRAM RIVAL AXS XPLR

Wheels

T1-T4: EASTON AR 25 OFFSET / PANORAMA SPEC SEALED HUBS, STAR RATCHET, 32 HOLES, CENTERLOCK

Tires

T1-T4: MAXXIS RAMBLER, 700X45, EXO/TR, 60TPI, BLACK

Shift/brakes levers

T1: SHIMANO CUES 6030

T2 & T3: SHIMANO GRX RX610 (left lever is 2x compatible)

T4: SRAM RIVAL ETAP AXS HRD

Crankset

T1 & T4: EASTON EA90, 38T

T2: SHIMANO GRX RX610 38T 1X12, 165/170/ 172.5mm

T3: SHIMANO GRX RX610 46-30T 2×12, 165/170/ 172.5mm

Bottom Bracket

T1 & T4: EASTON 30MM, BSA

T2 & T3: SHIMANO BBR60 ULTEGRA

Cassette

T1: SHIMANO LG400, 11-50T

T2: SHIMANO M7100-12, DEORE SLX, 10-51T, 12-SPEED

T3: SHIMANO HG710-12, 11-36T, 12 SPEED

T4: SRAM PG-1231 XPLR 11-44T

Chain

T1: SHIMANO LG500, 11s

T2 AND T3: SHIMANO M7100, DEORE SLX, 12 SPEED

T4: SRAM RIVAL FLATTOP 12-SPEED

Derailleur

T1: SHIMANO CUES 6000, 11SP

T2: SHIMANO RX822, GRX, SGS 12-SPEED

T3: SHIMANO RX820, GRX 12-SPEED, FRONT: SHIMANO RX820

T4: SRAM RIVAL ETAP AXS XPLR

Saddle

T1-T4: WTB VOLT MEDIUM

Rotors

T1: SHIMANO RT54 160MM CENTERLOCK

T2 & T3: SHIMANO RT64 160MM CENTERLOCK

T4: SRAM CENTERLINE 160MM CENTERLOCK

Handlebar

T1-T4: RITCHEY COMP VENTURE MAX II, 46CM

Stem

T1-T4: PROMAX DA-281, 31.8MM, 6DEG

OPTIONAL UPGRADE:
REDSHIFT SHOCKSTOP 6DEG

Headset

T1-T4: CANE CREEK 40-SERIES

Seatpost

T1-T4: KALLOY SP-3D2

OPTIONAL UPGRADE:
ONEUP 27.2MM / 90MM(XS-S)/120MM (M-L-XL), WITH ONEUP 31.8MM LEVER
OR
REDSHIFT SHOCKSTOP ENDURANCE

Pedals

NOT INCLUDED
