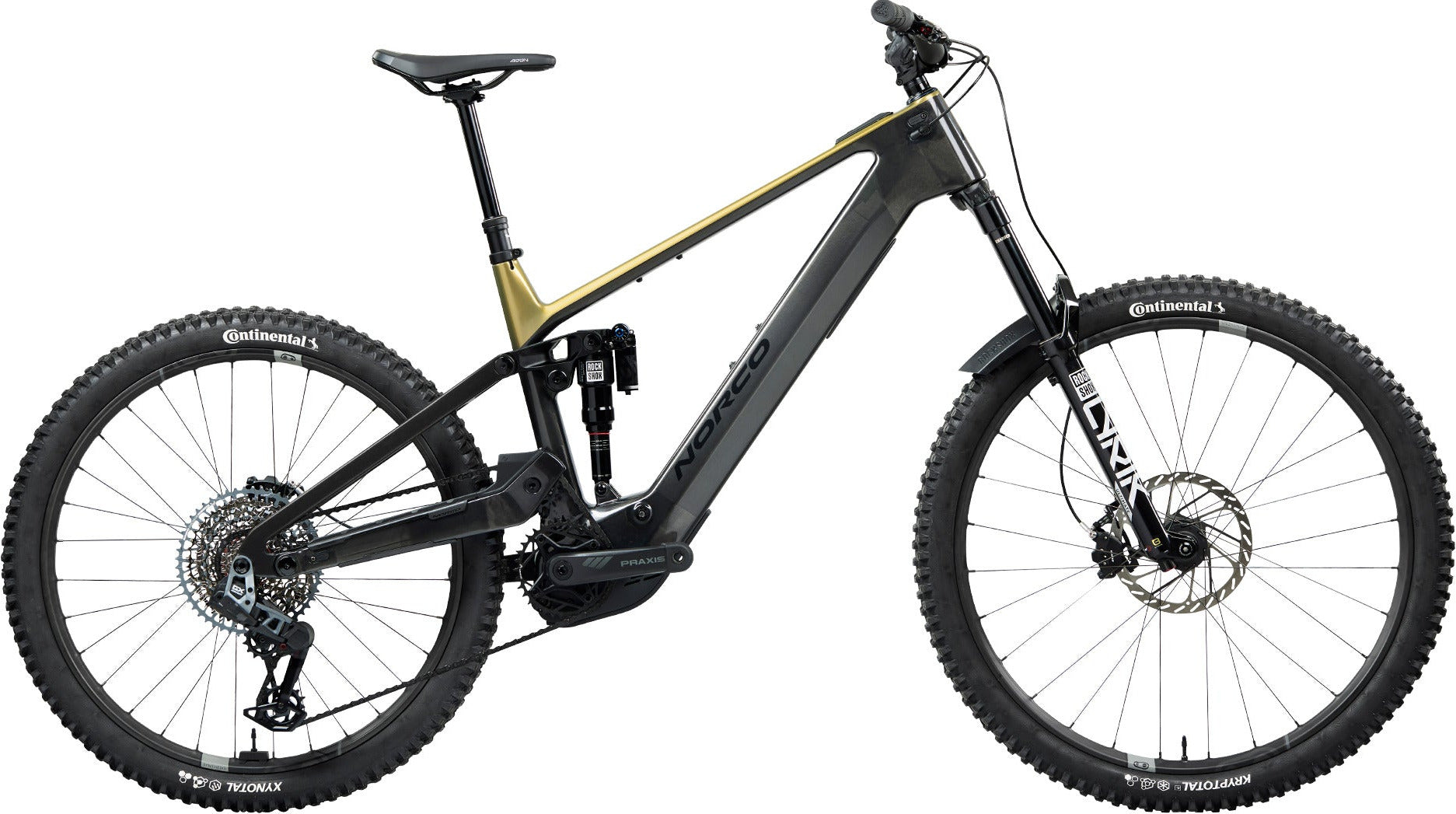

Start fast and finish strong on the new Sight VLT CX. Now with the new Bosch Performance Line CX motor, it’s almost 20% lighter than our previous generation, so you can commit harder and ride longer than ever before. The high pivot suspension layout with 160/150mm travel provides smooth, confident handling through rough terrain; this bike punches above its weight without losing playfulness.
| Frame |
Carbon Frame, 150mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™ |
| Fork |
RockShox Lyrik Ultimate RC2,160mm Travel, 44mm Offset, E-MTB Rated, Fender Included |
| Rear Shock |
RockShox Super Deluxe Ultimate, 205x60mm TR |
| Rear Shifter |
SRAM AXS POD Controller, Discrete Clamp |
| Rear Derailleur |
SRAM GX Eagle AXS T-Type, 12sp |
| Crankset |
Praxis Carbon Bosch, 34T, 165mm |
| Bottom Bracket |
Bosch BES3 DU |
| Cassette |
SRAM 1275 Eagle T-Type, 10-52T, 12sp |
| Chain |
SRAM GX Eagle T-Type, 12sp |
| Front Brake Rotor |
SRAM HS2, 200mm, 2mm thickness, 6 bolt |
| Rear Brake |
SRAM Maven Silver, Organic Pads |
| Rear Brake Rotor |
SRAM HS2, 180mm, 2mm thickness, 6 bolt |
| Brake Levers |
SRAM Maven Silver |
| Handlebar |
One Up Carbon, 800mm, 35mm Rise |
| Stem |
Norco Alloy, 40mm Length, 35mm Clamp |
| Seatpost |
TranzX YSI08FL RAD+ Travel Adjust Dropper, 31.6mm, 125mm (S1) -150mm (S2) -170mm (S3) -200mm (S4, S5) |
| Headset |
FSA No.55 Sealed Bearing, 1 1/8" - 1.5" Tapered, ( ZS44/28.6 | ZS56/40 ) |
| Saddle |
Fizik Terra Aidon X5 |
| Grips |
WTB Wavelength, 130mm Length |
| Seatpost Clamp |
Norco Alloy Nutted Clamp, 34.9mm ID |
| Front Hub |
Crank Bros. Synthesis Carbon Enduro, 15x110mm Boost, 32h, 6 Bolt |
| Rear Hub |
Crank Bros. Synthesis Carbon Enduro, 12x148mm Boost, XD, 32h, 6 Bolt |
| Rims |
Crank Bros. Synthesis Carbon Enduro, F- 31.5mm 28h, R- 29.5mm 32h, 29"-27.5 F/R |
| Front Tire |
Continental Kryptotal-F, Enduro, Soft, 29" x 2.4", Foldable |
| Rear Tire |
Continental Xynotal, Enduro, Soft, 27.5" x 2.4", Foldable |
| Spokes/Nipples |
Sapim D-Light (front), Sapim Race (rear) |
| Drive Unit |
Bosch Performance Line CX |
| Battery |
Bosch PowerTube 800 Wh |
| Switch |
Bosch BRC 3300 Mini Remote 22.2mm |
| Power Button |
Bosch BRC 3100 System Controller |
| Weight |
21.7 kg (48 lbs) |
| Weight Size |
S3 |
| Feature 1 |
Bosch Smart System Rim Magnet |
| Feature 2 |
Bosch PowerMore 250 Range Extender (Not Included) |
