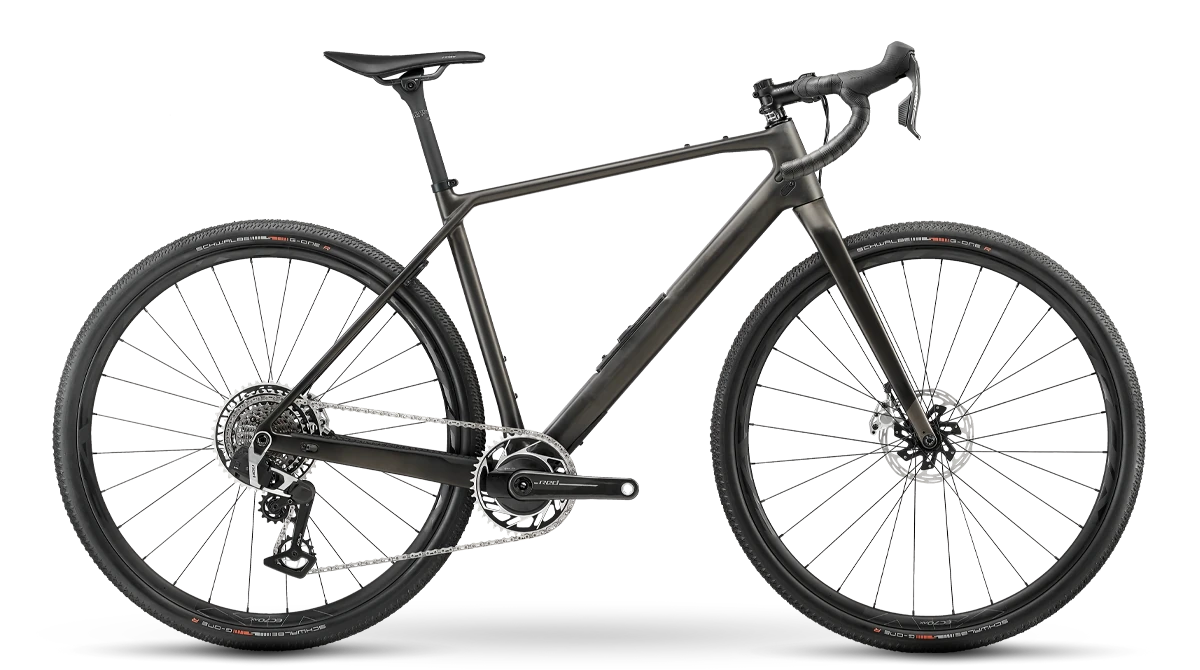

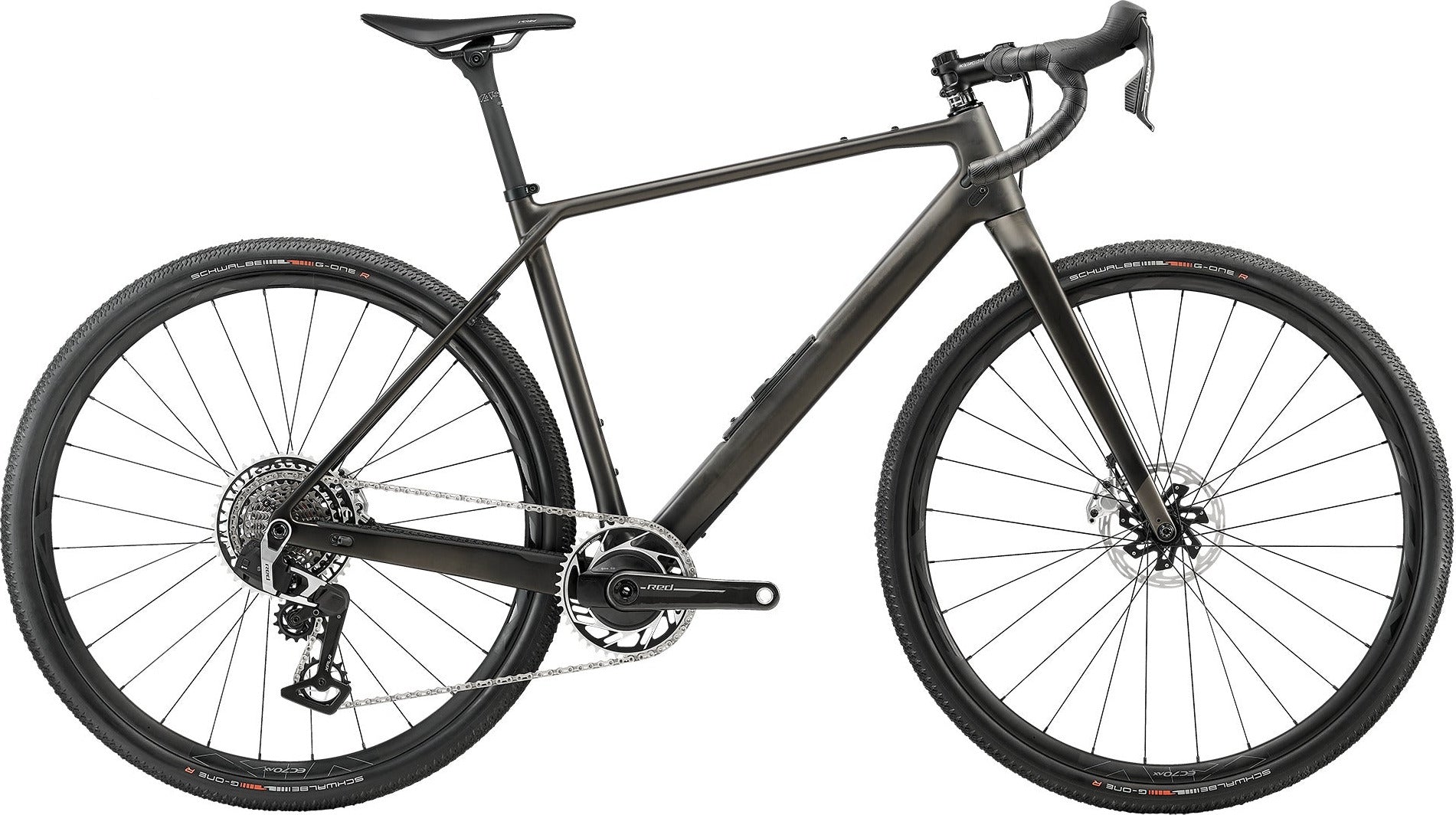

Singletrack, dirt roads, city parks, even the most remote backcountry trails – are you roaming or racing? Search C Red XPLR is ready for your next gravel adventure with modern gravel geo, a lightweight full carbon frame featuring Norco's proprietary downtube storage, SRAM Red AXS XPLR drivetrain, carbon wheelset, tire clearance up to 50c, and full-coverage fender and toptube bag mounts.
| Frame |
Search Carbon w/ DT Storage, UDH Compatible |
| Fork |
Search Carbon, 51mm Offset, 12x100mm TA |
| Rear Shifter |
SRAM Red AXS HRD Shift-Brake System |
| Rear Derailleur |
SRAM Red XPLR AXS Rear Derailleur, 13sp |
| Front Shifter |
SRAM Red AXS HRD Shift-Brake System |
| Crankset |
SRAM RED AXS Wide Power Meter 42T, 49CL, 165cm (S1,S2) - 170cm (S3,S4) - 172.5cm (S5) |
| Bottom Bracket |
SRAM Dub BSA 68 Road Wide |
| Cassette |
SRAM XPLR XG-1391, 10-46T, 13sp |
| Chain |
SRAM Red Flat Top, 118L |
| Front Brake |
SRAM Red AXS HRD Shift-Brake System |
| Front Brake Rotor |
SRAM Paceline X, 160mm, C-lock |
| Rear Brake |
SRAM Red AXS HRD Shift-Brake System |
| Rear Brake Rotor |
SRAM Paceline X, 160mm, C-lock |
| Brake Levers |
SRAM Red AXS HRD Shift-Brake System |
| Handlebar |
Easton EC90 AX, 42cm (S1,S2,S3) - 44cm (S4) - 46cm (S5), 16Deg |
| Stem |
Easton EA90, 70mm, 31.8mm clamp, +/- 7Deg |
| Seatpost |
Easton EC90, 27.2mm, 0Deg Offset, 350mm length |
| Headset |
FSA Integrated Sealed Bearings No. 42 ; Tapered 1-1/8" - 1.5" ( IS42/28.6 | IS52/40 ) |
| Saddle |
Fizik Vento Argo X1 |
| Grips |
Griptacular Shockproof Tape 3mm |
| Seatpost Clamp |
Norco Aluminum, 31.8mm ID |
| Front Hub |
Easton X5, 12x100mm, 28H, C-lock |
| Rear Hub |
Easton X5, 12x142mm, XDR, 28H, C-lock |
| Rims |
Easton EC70 AX, 24mm ID, 21mm depth |
| Front Tire |
Schwalbe G-One R Evo, Super Race, 700x45c |
| Rear Tire |
Schwalbe G-One R Evo, Super Race, 700x45c |
| Spokes/Nipples |
Double Butted, Sapim Straight-Pull |
| Valves |
WTB TCS Tubeless Valve, Brass |
| Sealant |
WTB TCS Tubeless Tire Sealant, 8oz/236ml |
| Rim Tape |
WTB TCS 2.0 Solid Strip |
| Accessories |
Norco Storage Bag - Ocean-X Water Resistant |
