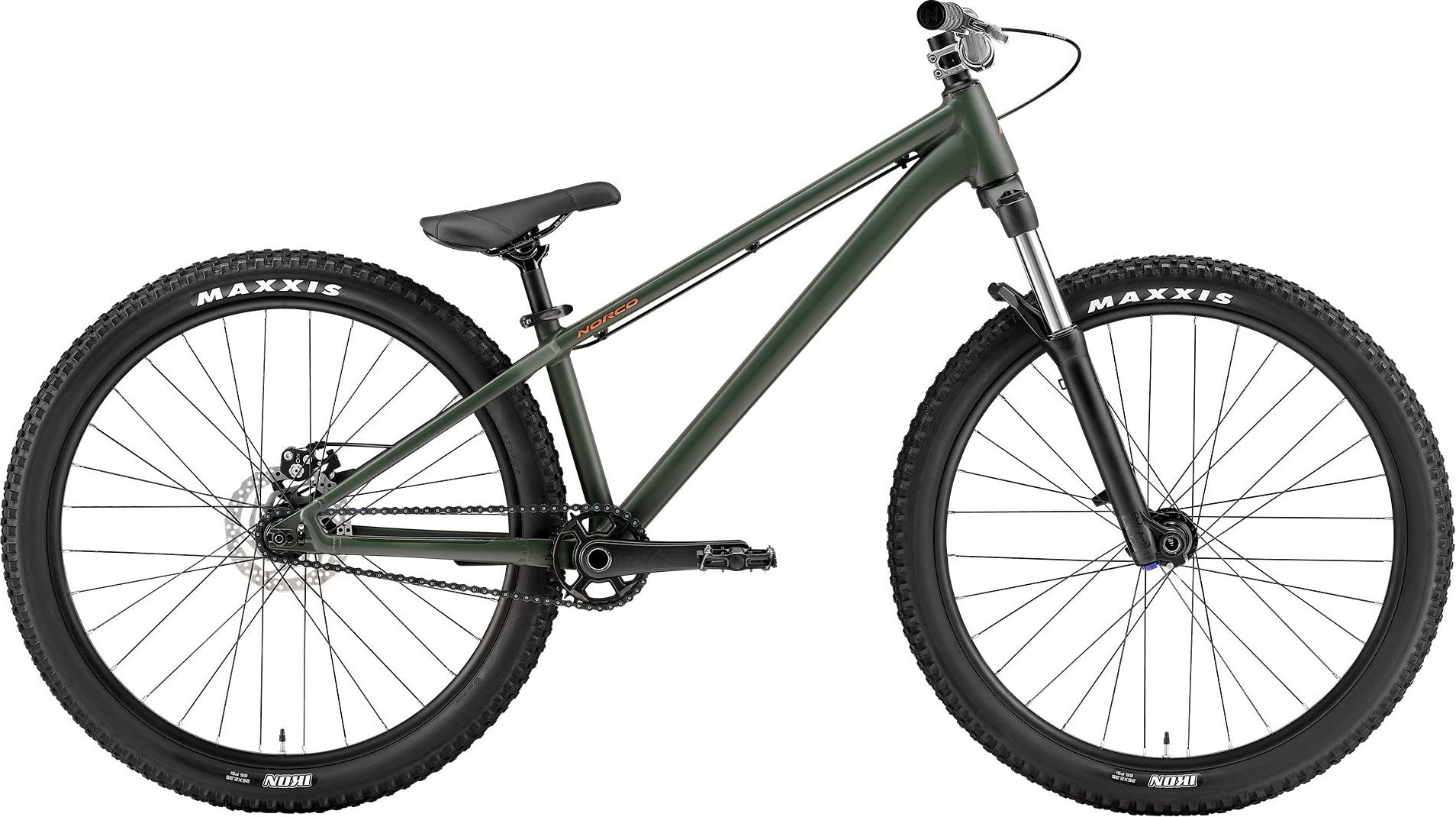

The Rampage 1 is purpose-built for big air, taking inspiration from two decades of riding and building dirt jumpers with a light but strong frame and balanced, agile geometry for finding your flow.
| Frame |
Aluminum DJ 26" |
| Fork |
Manitou Circus Comp, 100mm, 20x110mm |
| Crankset |
Prowheel Forged 2pc, 30T, 165mm |
| Bottom Bracket |
Sealed Cartridge, ISIS 73mm |
| Cassette |
Single speed, 14T |
| Chain |
KMC Z1, 1/2 x 3/32" |
| Front Brake |
Tektro MD-280, Mechanical, Resin pads (not pictured) |
| Front Brake Rotor |
160mm 6 bolt |
| Rear Brake |
Shimano Sora BR-R317 mechanical caliper |
| Rear Brake Rotor |
Shimano SM-RT26, 160mm, 6 bolt |
| Brake Levers |
Title G1 brake lever |
| Handlebar |
Title AH1, 800mm, 38mm rise |
| Stem |
Norco, 40mm Length, 31.8 Clamp |
| Seatpost |
Alloy, 27.2mm ID, 200mm Length |
| Headset |
Tapered 1-1/8"- 1.5",(ZS44/28.6 | ZS56/40) |
| Headset Spacer |
2x10mm , 1 x 5mm |
| Saddle |
Title JS1 |
| Grips |
Norco w/small flange, 130mm length |
| Pedals |
FP 870ZP resin BMX flat pedal with metal pins |
| Seatpost Clamp |
Norco Alloy QR, 31.8mm ID |
| Front Hub |
KT sealed bearing, 20x110, 32H, 6 bolt |
| Rear Hub |
KT sealed bearing, 3/8" nutted axle, 32H, 14T SS sproket, 6 bolt |
| Rims |
XD-155 DW, 32h, F/R-26" |
| Front Tire |
Maxxis Ikon, 3C Maxx Speed, 26"x 2.35, Folding |
| Rear Tire |
Maxxis Ikon, 3C Maxx Speed, 26"x 2.35, Folding |
| Spokes/Nipples |
Stainless Steel, 14g |
| Weight |
12.36 kg (27.2 lbs) |
| Weight Size |
Medium |
