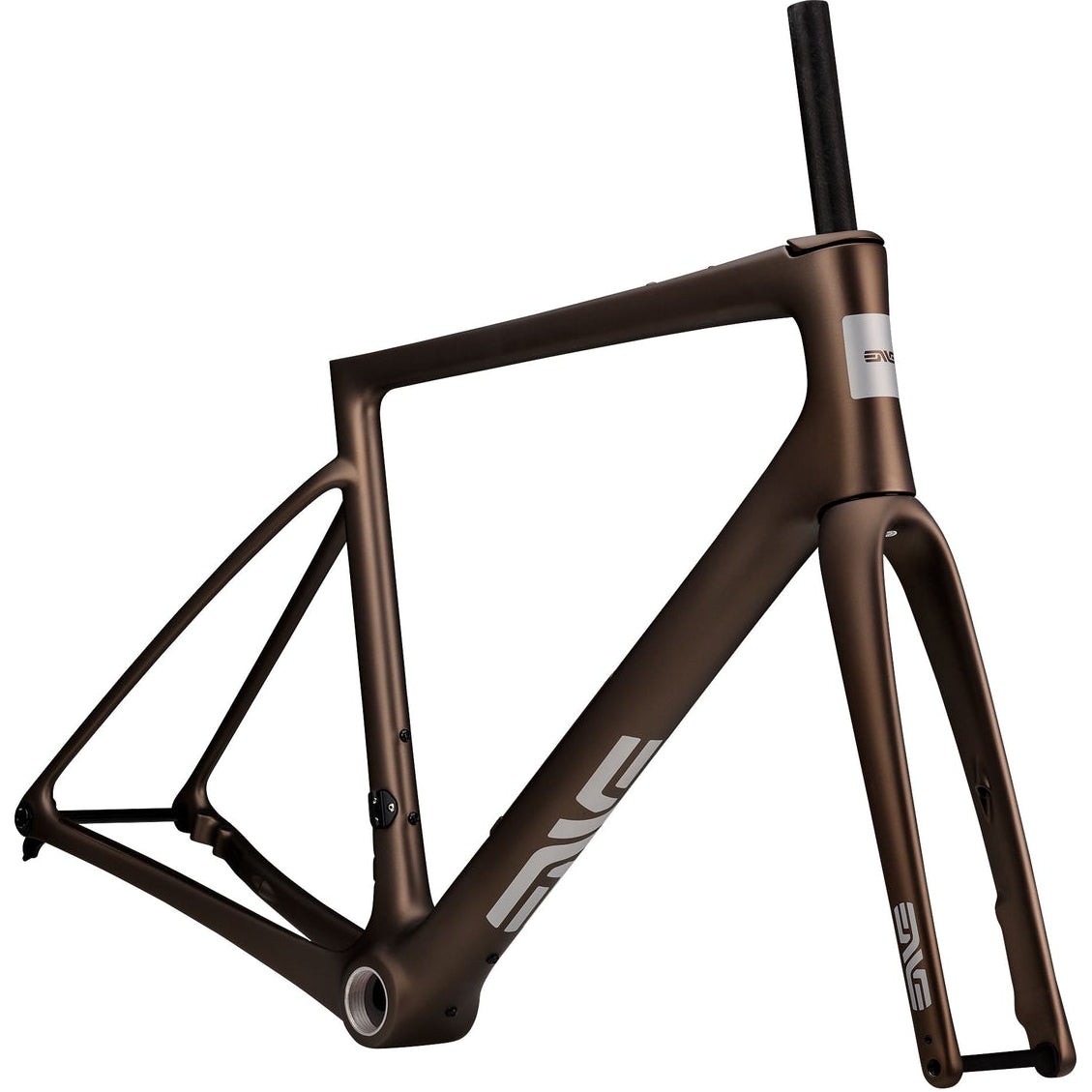

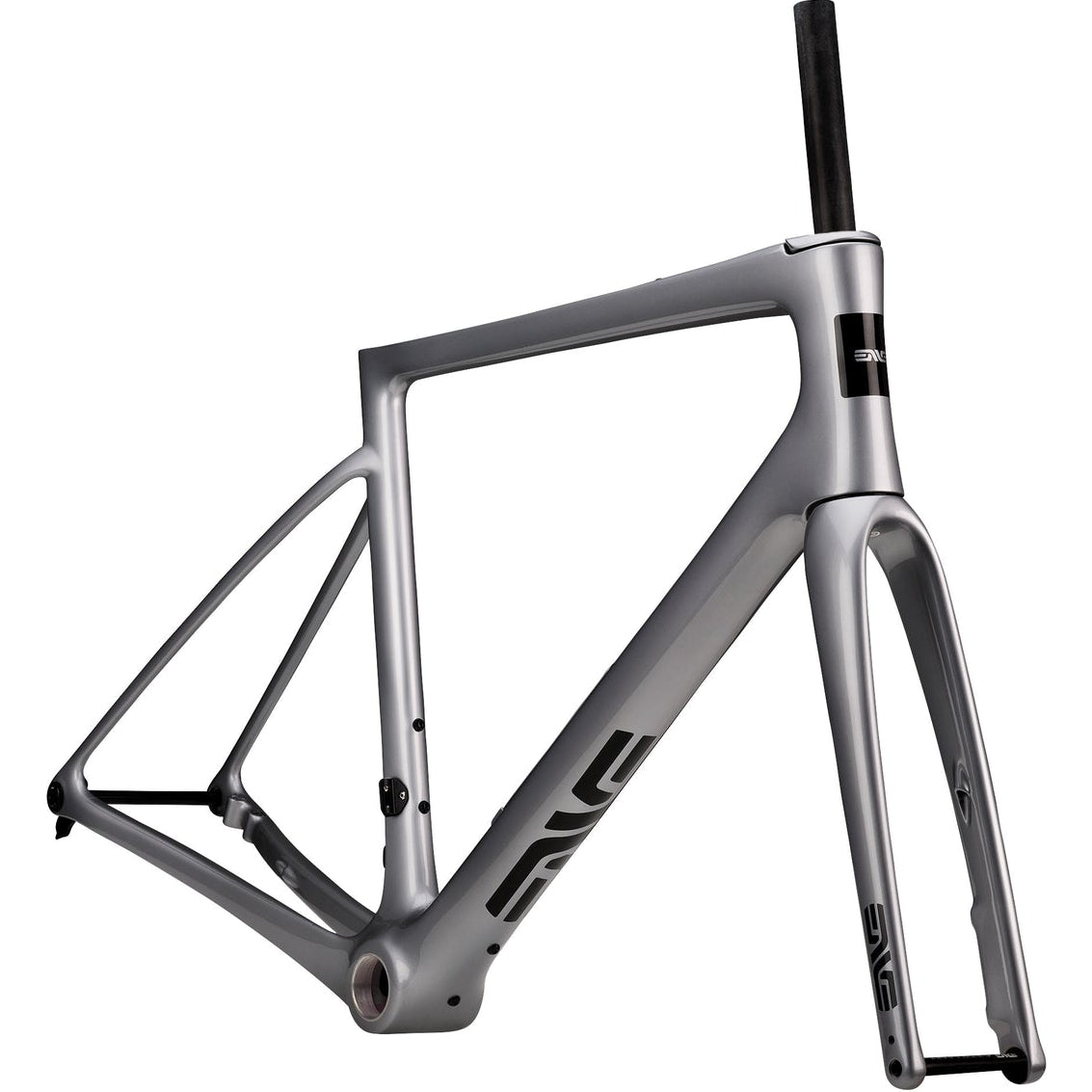

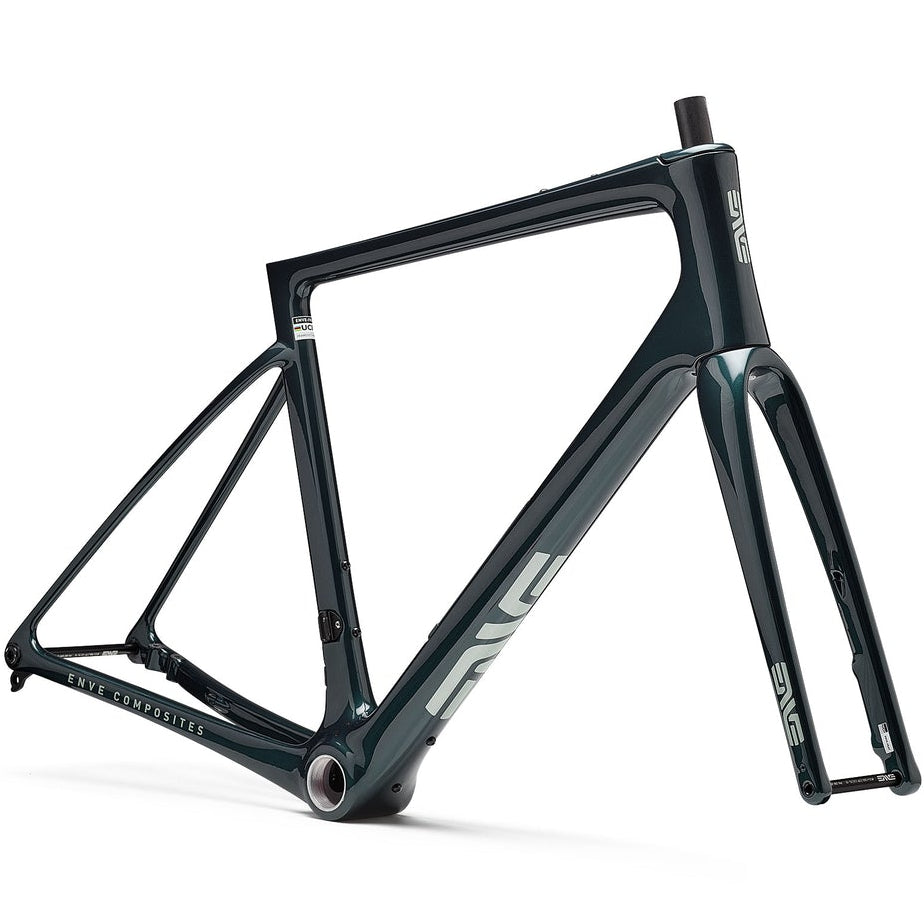

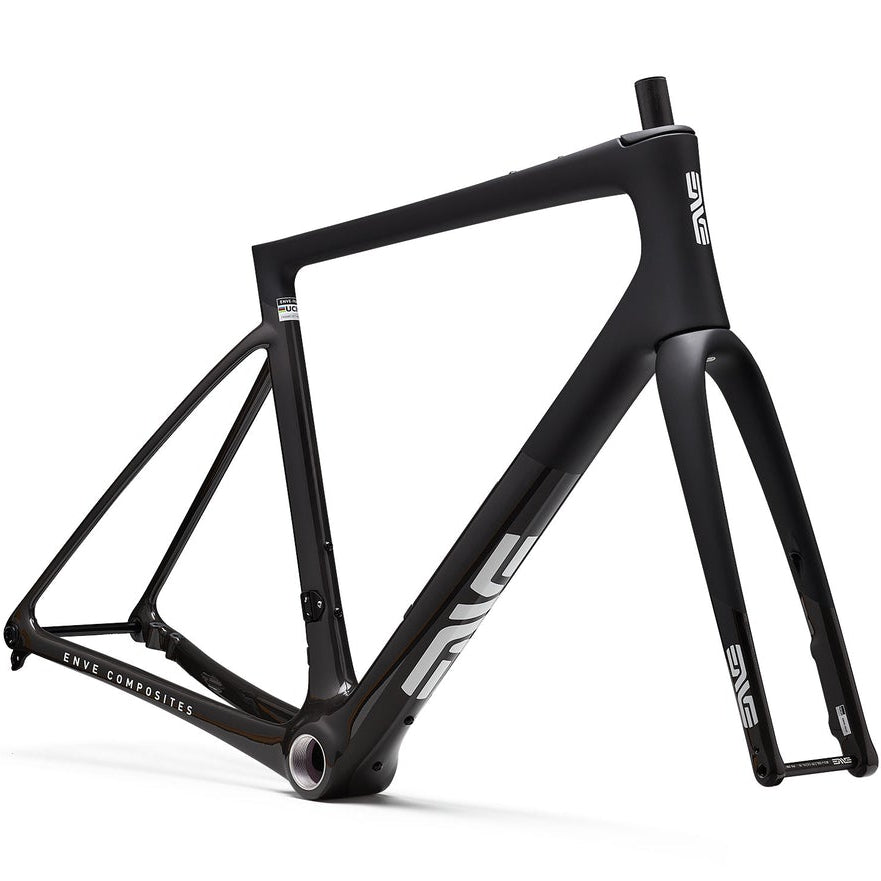

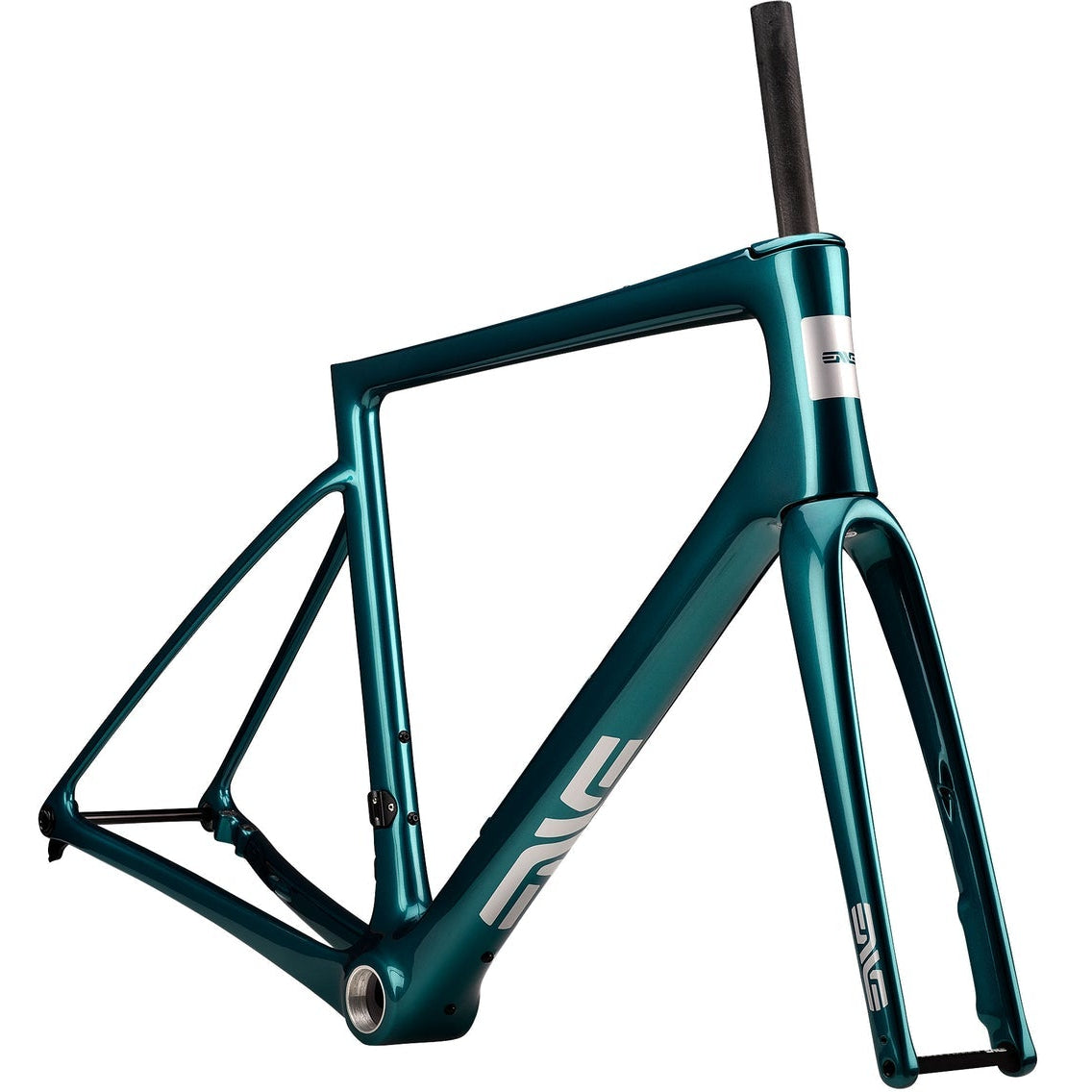

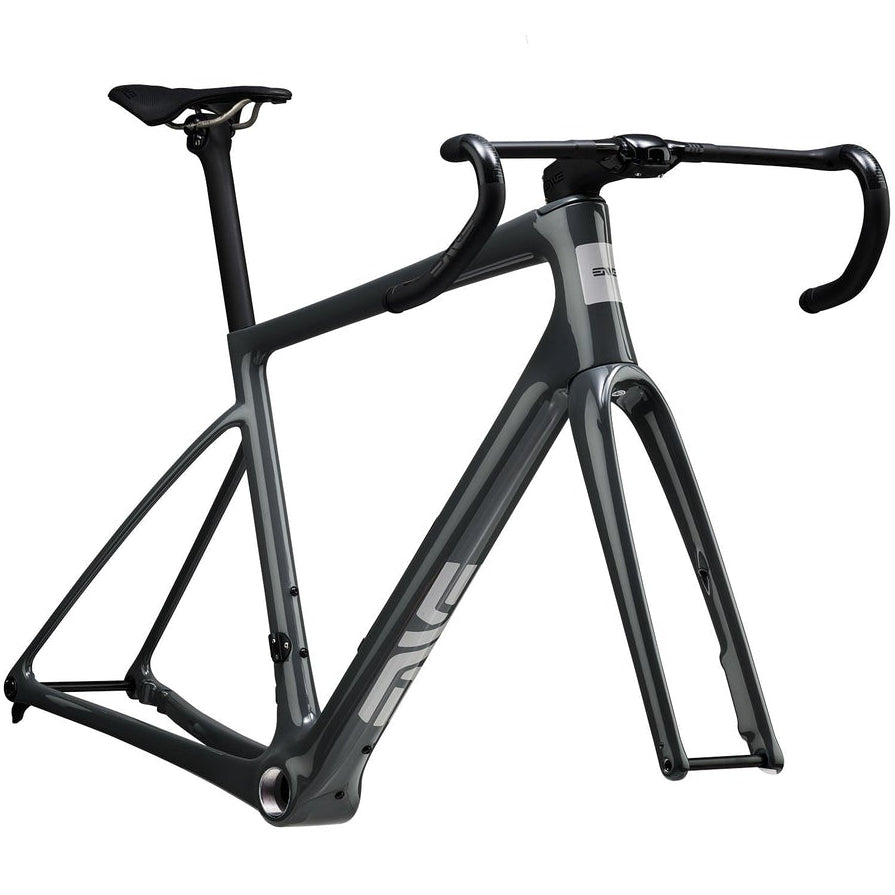

The Fray embodies everything a modern all‑road bike should be: fast on pavement, composed on dirt, and built for riders who see every route as an open invitation. Its capability starts with generous tire clearance, accommodating up to a 700c x 40 mm tire to deliver confident handling whether you’re riding smooth tarmac, linking forgotten farm roads, or stretching a long ride into something more adventurous. Pair that with integrated frame storage that converts unused downtube space into practical, rattle-free capacity for tools and essentials, and you get a bike that stays clean, quiet, and ready for the unexpected without compromising its refined road aesthetics.

Frame Specs

• Frame Material
  • ENVE M.O.D Carbon, 12x142 Thru-Axle, Flat Mount Disc, Threaded T47 BB, Internal Routing, Fender Compatible
• Fork Material
  • ENVE M.O.D Carbon, 12x100 Thru-Axle, Flat Mount Disc, Internal Routing, Fender Compatible
• Target Application
  • All Road / Endurance / Mixed Surface / Sportif / Fondo
• Sizes (cm)
  • 47, 50, 52, 54, 56, 58, 60
• Fork Rake
  • 55, 51, 47, 43
• Fork Axle to Crown
  • 395mm
• Frame Size/Fork Rake
  • 47cm/55, 50cm/55, 52cm/51, 54cm/51, 56cm/47, 58cm/47, 60cm/43
• Frame Weight
  • 900g +/- 2% (Size 56, Painted, No Hardware)
• Headset
  • ENVE Integrated IS52/IS52 Internal Drop-In
• Headset Bearing
  • 1.5" IS52 Upper and Lower
• Seat Post Diameter
  • ENVE Aero
• BB Type
  • T47 Inboard Bearing
• Brake Mount
  • Flat Mount
• Front Axle
  • 12x100 (Total Length: 122, TP:1.5, TL:15)
• Rear Axle
  • 12x142 (Total Length: 168, TP:1.0, TL:14)
• Minimum Tire Size
  • 27mm
• Optimal Tire Size
  • 31mm - 35mm
• Maximum Listed Tire Clearance 1x
  • 40mm
• Maximum Listed Tire Clearance 2x
  • 38mm
• Frame Routing
  • Internal
• In-Frame Storage
  • Yes (2 Storage Bags included - 18.22 cubic cm each)
• Water Bottle Capacity
  • 3
• Top Tube Mounts
  • Yes
• Fender Mount Compatible
  • Yes
• Wheel Size
  • 700C

Component Compatibility

• Handlebars
  • ENVE IN-Route Recommended
• Stem
  • ENVE IN-Route Recommended
• Seatposts
  • ENVE Aero Seatpost

Drivetrain Compatibility

• Shimano Mechanical 1x
  • Yes
• Shimano Mechanical 2x
  • Yes
• Shimano Electronic Di2 (1x/2x)
  • Yes
• SRAM Mechanical 1x
  • Yes
• SRAM Mechanical 2x
  • No (Fray requires continuous housing for FD)
• SRAM AXS (1x/2x)
  • Yes
• Campy Mechanical 1x
  • Yes
• Campy Mechanical 2x
  • No (Fray requires continuous housing for FD)
• Campy Electronic EPS
  • Not Compatible

*ALL FRAMES WILL BE SPECIAL ORDERED AND ARRIVE WITHIN 4-6 WEEKS*
