Guide to Replacement Clamp Jaw Covers

#2860 - Home Mechanic Repair Stands (2019–)

• PCS-9.2 Repair Stand
• PCS-9.3 Repair Stand
• PCS-10.2 Repair Stand
• PCS-10.3 Repair Stand
• PCS-12.2 Repair Stand

2860 jaw covers are almost the exact same shape as the 1960, but thicker, enabling these home mechanic repair stands to clamp tubes as small as 7/8″.

The 2860 cover is held in place by two studs protruding through the clamps. The studs are held in place with the included clips. The covers are nominally 2.75 inches (7 cm) long.

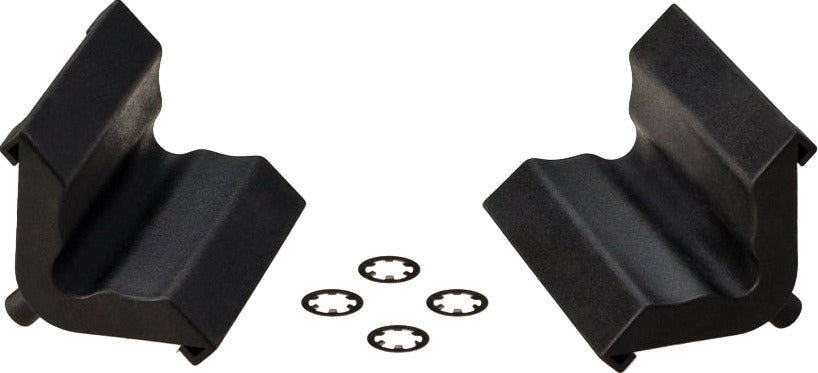

#1960 - Micro-Adjust Clamps (2010–)

• 100-3D Clamp
• 100-5D Clamp
• 100-25D Clamp
• PCS-4-2 Repair Stand
• PRS-2 OS-2 Repair Stand
• PRS-2.2-2 Repair Stand
• PRS-2.3-2 Repair Stand
• PRS-3 OS-2 Repair Stand
• PRS-3.2-2 Repair Stand
• PRS-3.3-2 Repair Stand
• PRS-4 OS-2 Repair Stand
• PRS-4.2-2 Repair Stand
• PRS-4W-2 Repair Stand
• PRS-7-2 Repair Stand
• PRS-25 Repair Stand
• PRS-26 Repair Stand
• PRS-33 Repair Stand
• PRS-33.2 Repair Stand

The 1960 cover is held in place by two studs protruding through the clamps. The studs are held in place with the included clips. The covers are nominally 2.75 inches (7 cm) long.

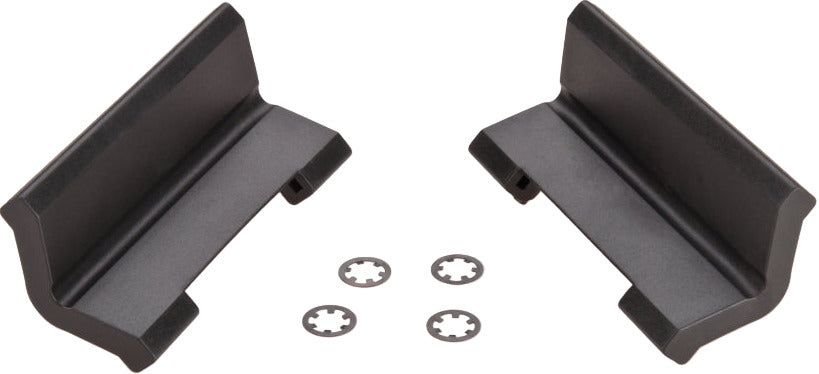

#1259 — Extreme Range Clamps (2004–2015)

• 100-4X Clamp
• 100-6X Clamp
• 100-7X Clamp
• 100-15X Clamp
• PRS-15 Repair Stand

The cover is held in place by two studs protruding through the clamps. The studs are held with clips. The covers are nominally 3.5 inches (9 cm) long.

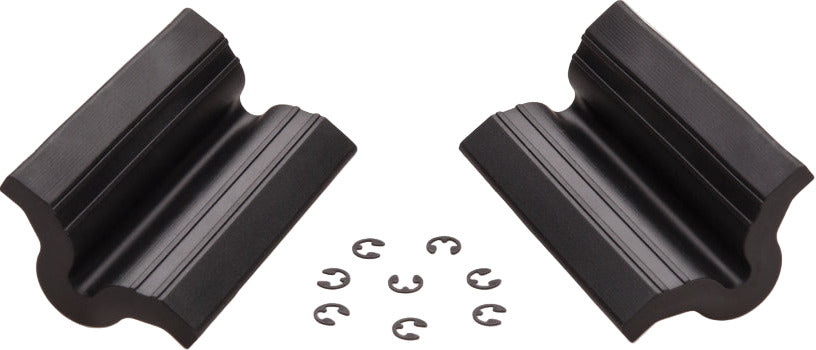

#1185K — Home Mechanic Repair Stands (2004–2018)

• PCS-9 Repair Stand
• PCS-10 Repair Stand
• PCS-11 Repair Stand
• PCS-12 Repair Stand

The cover is held in place by two studs protruding through the clamps. The studs are held with clips. The covers are nominally 3.5 inches (9 cm) long.

#1002 — Extreme Range Clamps (2001–2003)

• 100-3X Clamp
• 100-5X Clamp

The cover is held in place by two studs protruding through the clamps. The studs are held with clips. The covers are nominally 3.5 inches (9 cm) long.

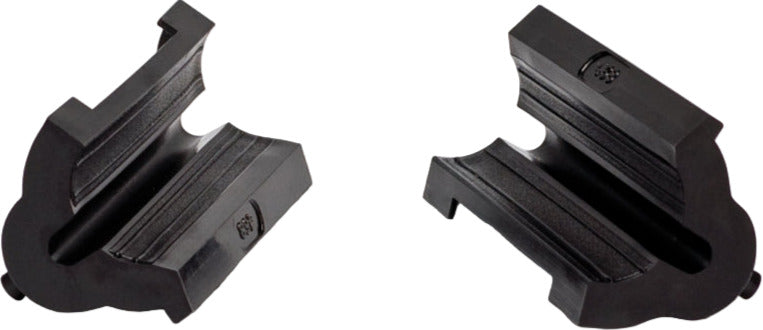

#468B - Adjustable Linkage Clamps (current model)

• 100-3C Clamp
• 100-5C Clamp
• 100-8C Clamp
• 100-8Y Clamp
• 100-9C Clamp
• PCS-4 Repair Stand
• PCS-4-1 Repair Stand
• PRS-2 Repair Stand
• PRS-2 OS-1 Repair Stand
• PRS-2.2-1 Repair Stand
• PRS-2.3-1 Repair Stand
• PRS-3 Repair Stand
• PRS-3 OS-1 Repair Stand
• PRS-3.2-1 Repair Stand
• PRS-3.3-1 Repair Stand
• PRS-4 Repair Stand
• PRS-4 OS-1 Repair Stand
• PRS-4.2-1 Repair Stand
• PRS-5 Repair Stand
• PRS-6 Repair Stand
• PRS-7 Repair Stand
• PRS-8 Repair Stand
• PRS-11 Repair Stand
• PRS-12 Repair Stand

Both clamp jaws have a deep recess in the center of the radius that allow the jaws to safely clamp over cable housing. Jaw covers are held by two studs that insert through the clamp jaws. These studs are then held by clips. The covers are nominally 4 inches (10 cm) long.

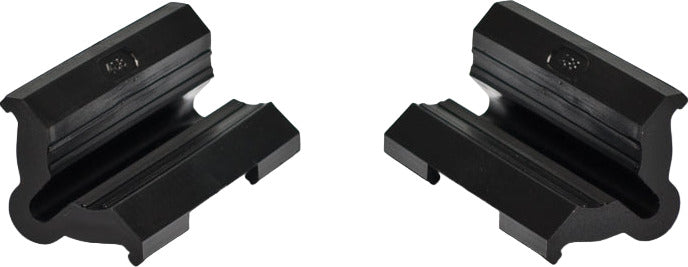

#468G — Spring Linkage Clamps (PCS-1 & PCS-2)

• 100-1C Clamp
• 100-1CA Clamp
• 100-2C Clamp
• PCS-1 Repair Stand
• PCS-2 Repair Stand

The clamps are made of welded stamped steel. Both clamp jaws have a deep recess in the center of the radius that allow the jaws to safely clamp over cable housing. Jaw covers are colored gray. The covers are nominally 4 inches (10 cm) long.

NOTE: Use care not to confuse the 468G with the 467G jaw covers. The two are not interchangeable.

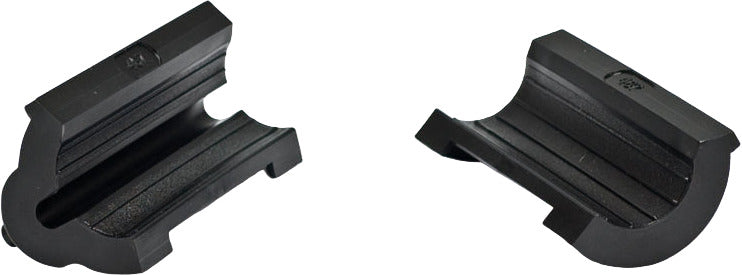

#467B — Spring Linkage Clamps (PRS-3 & PRS-2 Clamps with Single Cable Relief)

• 100-3C Clamp (Older)
• 100-5C Clamp (Older)
• 100-8C Clamp (Older)
• PRS-3 Repair Stand
• PRS-2 Repair Stand

Only the moving jaw has a deep recess in the center of the radius that allow the jaws to safely clamp over cable housing. The fixed jaw on the main shaft has no recess. Both jaw covers are held by two studs that insert through the clamp jaws. These studs are then held by clips. The covers are nominally 4 inches (10 cm) long.

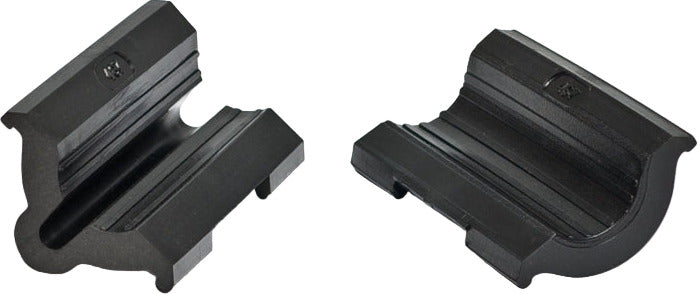

#467G — Spring Linkage Clamps (PCS-1 Clamps with Single Cable Relief)

• 100-2C Clamp (Older)
• PCS-1 (<1992)
• PCS-2 (<1992)

The clamp is made of welded stamped steel. Only the moving jaw has a deep recess in the center of the radius that allow the jaws to safely clamp over cable housing. The fixed jaw on the main shaft has no recess. The covers are nominally 4 inches (10 cm) long.

NOTE: Original jaw covers were gray, All replacements are black as shown here.

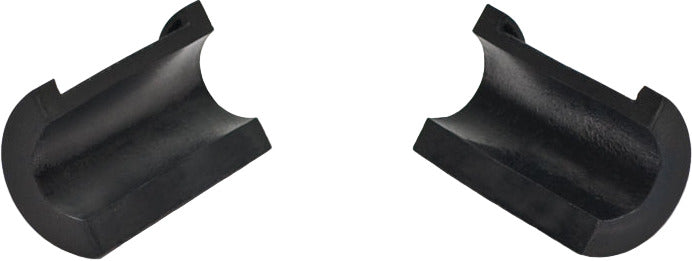

#466 — Vintage Clamps with Dipped Jaws

466 jaw covers are “slip-on” covers. There are no studs or clips. These fit the very early generation clamp jaws that were dipped in plastic. The original covers must be cut off before the 466 are slipped over the jaws. Neither jaw side has a recess for cable housing.
