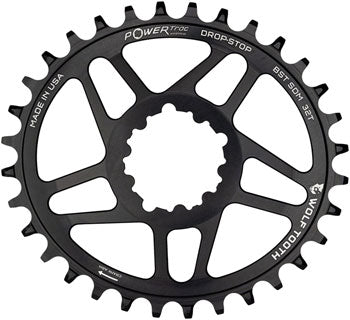

Wolf Tooth SRAM 3-Bolt Direct Mount Oval Chainring
SKU:
OVAL-SDM32-BST
$134.99
Unit price
/
Inquire for Availability
Description
Designed to fit SRAM cranksets with removable spiders. Its proprietary design has an ovality of 10% and a timing of 112 degrees after top dead center which provide the beneifits of an oval ring such as greater rear wheel traction without the traditional downsides of oval rings.
Compatibility:
- These direct mount chainrings will replace your existing chainring and spider, which is attached via 3 bolts on the back side of the spider near the spindle. You will use these same 3 bolts to attach the Wolf Tooth SDM® chainring. Note that these chainrings are NOT compatible with SRAM 8-bolt direct mount cranksets.
- Also compatible with Cane Creek eeWing cranksets.
- There are 3 offsets:
- Boost: 0mm offset for 55mm chainline required for SRAM Transmission
- Boost: 3mm offset for 52mm chainline or Transmission compatibility with Super Boost bikes
- BB30: 0mm offset for BB30 short spindle cranks for 49mm chainline
- Standard MTB: 6mm offset for non-Boost mountain bikes, GXP and long spindle BB30 cranks for 49mm chainline
- Fat Bikes: If you are planning to use this on an X9 or XX1 fat bike crankset with a 190/197 rear hub spacing use the 0 offset ring. If your fat bike has a 170/177 rear hub spacing, use the Standard 6mm offset
- Praxis Works Road/CX cranks use the 6mm offset. Praxis Works mountain cranks use the 3mm offset for their DM-A and 0mm offset for their DM-B chainrings.
