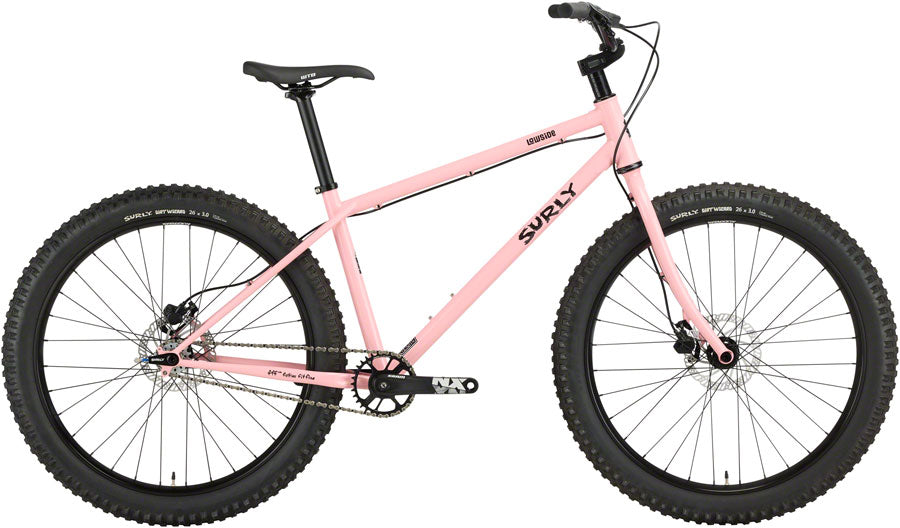

Surly Lowside 26" - New Pig Smell
Stock Locations:
St. Laurent:
Hintonburg:
Warehouse:
Special Order:
Description
Your BMX Bike All Grown Up
Lowside is like the grownup version of the bike you rode when you were a kid and still had hopes and dreams and some semblance of ambition. It’s just as happy riding singletrack as it is parked outside your favorite drinking establishment.
Lowside is a single speed mountain bike. Singlespeeding has been a part of Surly’s DNA since day one when we launched the 1x1 Rat Ride. After a lot of Homie Fall Fests and more feats of strength than we can recall, we decided to discontinue it a couple years back. Lowside picks up right where the 1x1 left off.
“Some have dubbed the Lowside the ultimate pub cruiser.”
- Modern trail standards: dropper post compatibility, 44mm headtube, Gnot-Boost rear spacing, thru-axles
- Compatibility with most mountain bike standards makes it the perfect parts bin bike (no rim brakes allowed though)
- Spec'd in alternating years with 26 x 3” or 27.5 x 2.8” tires, the Lowside remains capable of running either option
Frameset
-
Frame
- Surly Lowside - 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated
-
Fork
- Surly Lowside - 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated
Components
-
Headset
- Cane Creek
-
Seatpost Clamp
- Surly Stainless 33.1mm clamp
-
Seatpost
- Promax SP-2019, 0 Offset, 30.9mm diameter
-
Stem
- Sunday Freeze Stem Top Load
-
Grips/Bar Tape
- Velo Black Lock-On
-
Saddle
- WTB Volt
-
Handlebar
- Surly Sunrise
Drivetrain
-
Front Derailleur
- N/A
-
Rear Derailleur
- N/A
-
Cassette
- Surly 17t w/ spacer kit
-
Chain
- KMC X10
-
Crankset
- SRAM NX 32t
-
Shifter
- N/A
-
Brake Levers
- Tektro HD-M275 (Tektro HD-M276 on XS)
-
Brake Calipers
- Tektro HD-M275 (Tektro HD-M276 on XS)
-
Bottom Bracket
- SRAM Powerspline
-
Rotors
- Tektro 160/160, 6-Bolt
Wheels
-
Front Tire
- Surly Dirt Wizard 26 x 3.0", 60tpi
-
Rear Tire
- Surly Dirt Wizard 26 x 3.0", 60tpi
-
Front Hub
- Novatec 15 x 110mm, 6-bolt, 32h
-
Rear Hub
- Novatec 12 x 148mm, 6-bolt, 32h
-
Rim
- ALEX MD40 26"
Surly Bikes Sizing Charts
Surly General Size Chart
| Rider Height (Inches) | Rider Height (Metric) | Frame Size |
|---|---|---|
| 5'0"-5'5" | 152-165cm | XS |
| 5'4"-5'8" | 162-173cm | Small |
| 5'7"-6'0" | 170-183cm | Medium |
| 5'11"-6'3" | 180-190cm | Large |
| 6'2"-6'6" | 188-198cm | XL |
| 6'5"-6'8" | 196-205cm | XXL |
