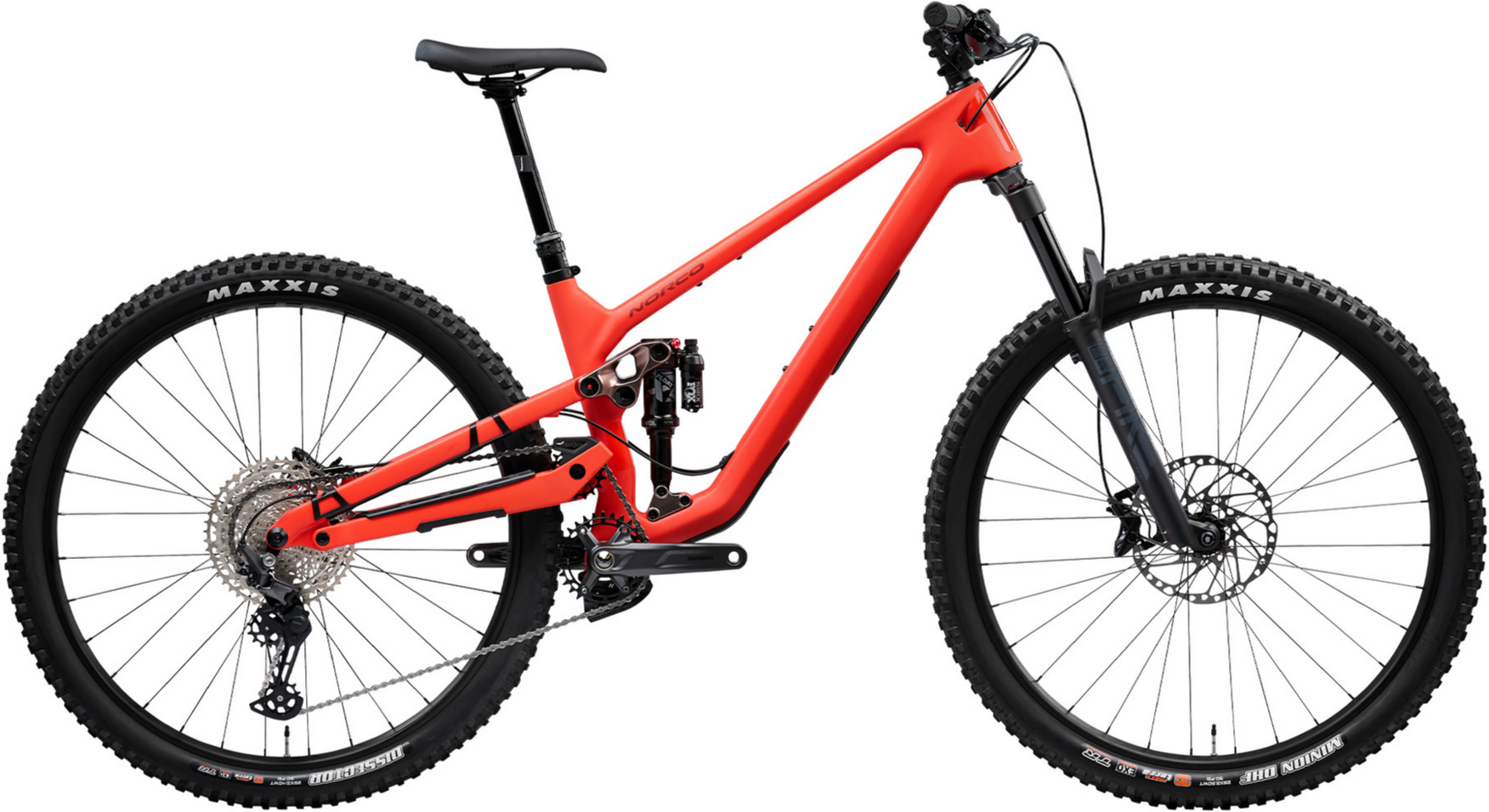

Whether you’re ripping fast flowy singletrack, putting the power down on punchy climbs, or tearing the tires off in the corners, the Optic continues to push the boundaries of what’s possible on a short travel trail bike.
VPS HP Suspension Platform
Designed around Norco’s VPSHP suspension layout that increases rearward axle path to improve suspension performance in technical terrain, while retaining the dynamic experience riders expect from a short travel trail bike.
With 140mm/125mm of travel, the 2024 Optic condenses years of technology from long travel bikes into a lightweight package that’s as ready to tear up climbs as it is tackling challenging descents. The VPSHP suspension layout provides increased rearward axle path and an idler to manage pedal feedback, keeping Optic’s playful roots, while punching above its weight when the trails get rough.
Through extensive testing using an i-track configured idler location, anti-squat has been tuned for efficiency and responsive feel under power. The idler mounted to the chainstay manages chain growth and pedal-kickback.
Swapping the linkarm and lower shock mount with our “Missing Link Kit” converts between 29” and 27.5” to let you pick the wheelsize that suits you best, while maintaining geometry and kinematics to ensure consistent fit and bike setup.
Frame |
Optic Carbon, VPS HP, 125mm Travel, UDH Compatible |
Fork |
RockShox Pike Select, Charger RC, DebonAir+, 140mm, 44mm Offset |
Rear Shock |
Fox FLOAT X Performance, 2 Pos, 185x50mm Trunnion |
Rear Shifter |
Shimano Deore SL-M6100-R, Rapidfire Plus |
Rear Derailleur |
Shimano Deore RD-M6100 SGS |
Crankset |
Shimano Deore FC-MT512, 30T |
Bottom Bracket |
Shimano BSA Threaded |
Cassette |
Shimano 10-51T, CS-M6100-12, 12 Speed |
Chain |
Shimano Deore CN-M6100 |
Chain Guide |
Norco Idler Guide and Lower Guide |
Front Brake |
Shimano Deore MT520 4-Piston, Metallic Pads |
Front Brake Rotor |
Shimano RT-64 200mm |
Rear Brake |
Shimano Deore MT520 4-Piston, Metallic Pads |
Rear Brake Rotor |
Shimano RT-64 180mm |
Brake Levers |
Shimano Deore |
Handlebar |
6061 Alloy 800mm, 25mm Rise |
Stem |
Alloy 40mm Length, 35mm Clamp |
Seatpost |
TranzX YS105 Dropper, 34.9mm, 150mm (1), 170mm (2), 200mm (3, 4), 230mm (5) |
Headset |
FSA #57 E Sealed Bearing |
Saddle |
WTB Volt 250 Sport |
Grips |
DMR DeathGrip |
Seatpost Clamp |
Norco Alloy Nutted Clamp |
Front Hub |
Shimano HB-TC500 110x15mm Boost, Center Lock |
Rear Hub |
Shimano FH-TC500, 12x148mm Boost, Micro Spline, Center Lock |
Rims |
WTB ST i30 TCS 2.0, 32H, 29" |
Front Tire |
Maxxis Minion DHF 2.5" 3C, MaxxTerra / EXO / TR, Folding |
Rear Tire |
Maxxis Dissector 2.4" 3C, MaxxTerra / EXO / TR. Folding |
Spokes/Nipples |
Black Stainless |
Weight |
15.5 kg (34.2 lbs) |
Weight Size |
S3 |
