2025 Kona Rove LTD Frameset

By Kona
SKU: F36RVLBLFA50
$1,099.00
Size
Colour
Description

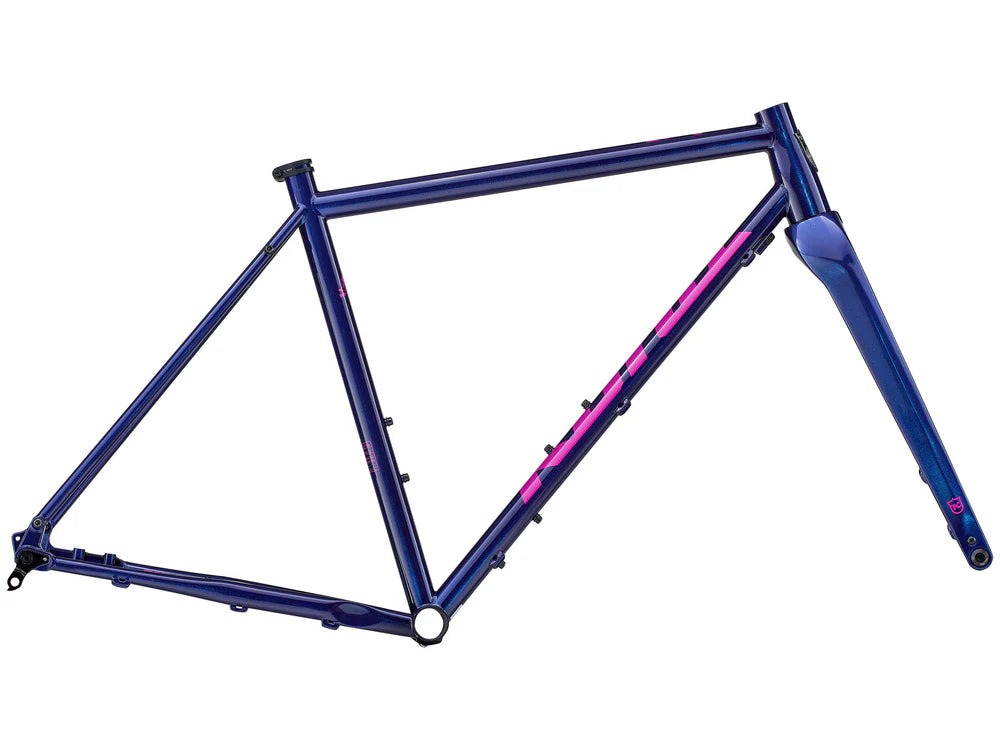

Picture sunny gravel roads lined with fields, pastures, fences, and views for days. That’s where this bike is home. The Rove LTD is everything you’d expect from a bike made for going the distance across mixed surfaces. This gorgeous Butted Cromoly frame features a tapered headtube and our Libre Full Carbon flat mount disc fork. It’s a bike afficionado’s value bike. The Rove LTD is the perfect blend of function and aesthetics and is ready for your next adventure.

Size 48 50 52 54 56 58
1 ST Length 480 500 520 540 560 580
2 TT Length 515 531 546 562 578 598
3 Reach 372 378 383 388 392 400
4 Stack 532 551 570 588 607 626
5 Standover 735 754 775 794 815 834
6 HT Angle 70.5 70.5 71.0 71.0 71.5 71.5
7 HT Length 90 110 130 150 170 190
8 ST Angle 75.0 74.5 74.0 73.5 73.0 72.5
9 CS Length 435 435 435 435 435 435
10 BB Drop 74 74 72 72 70 70
11 BB Height 268 268 270 270 272 272
12 Wheelbase 1016 1029 1036 1048 1054 1068
13 Front Center 592 604 612 623 628 643
14 Fork Length 400 400 400 400 400 400
15 Fork Offset 50 50 50 50 50 50
