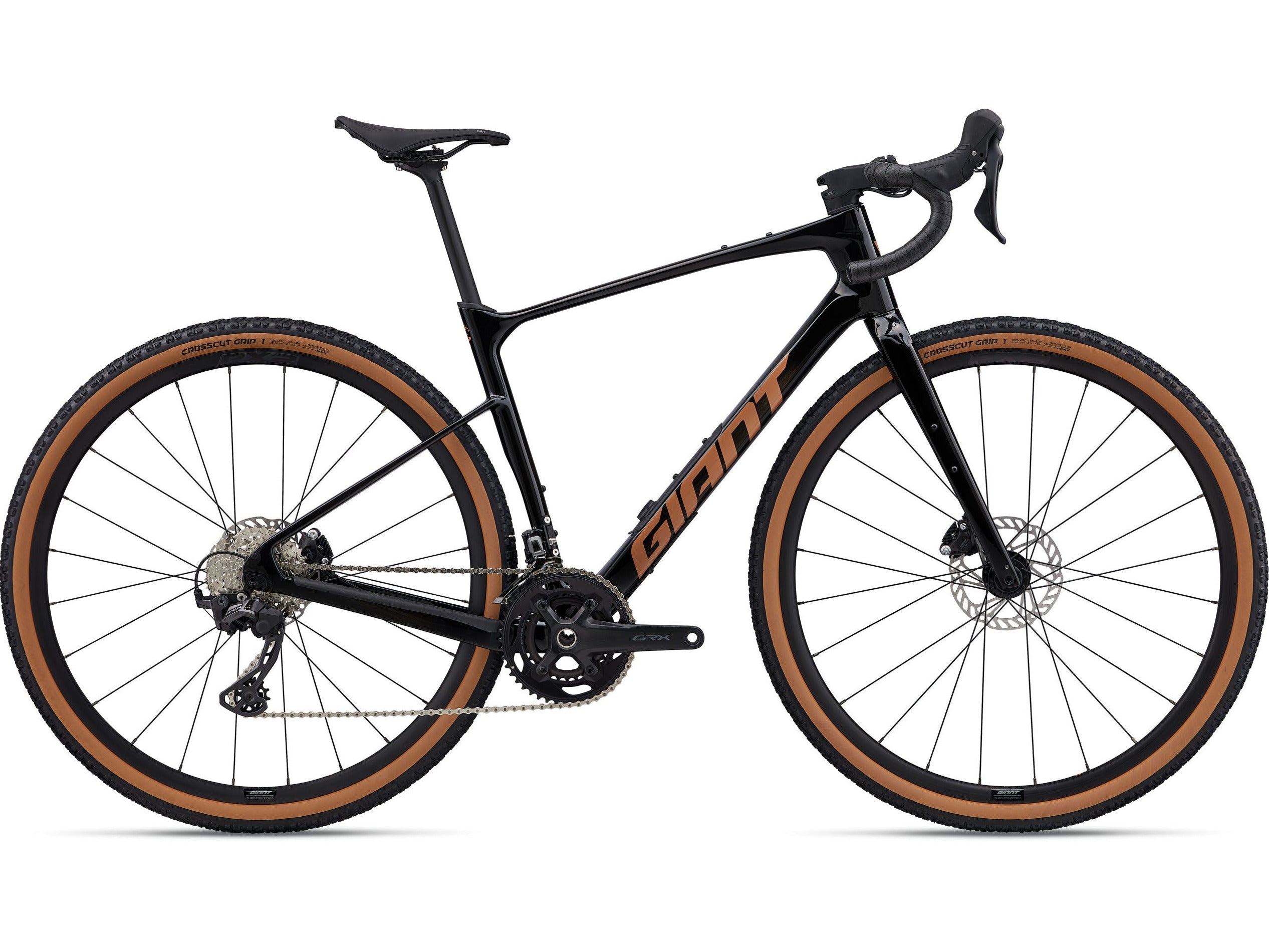

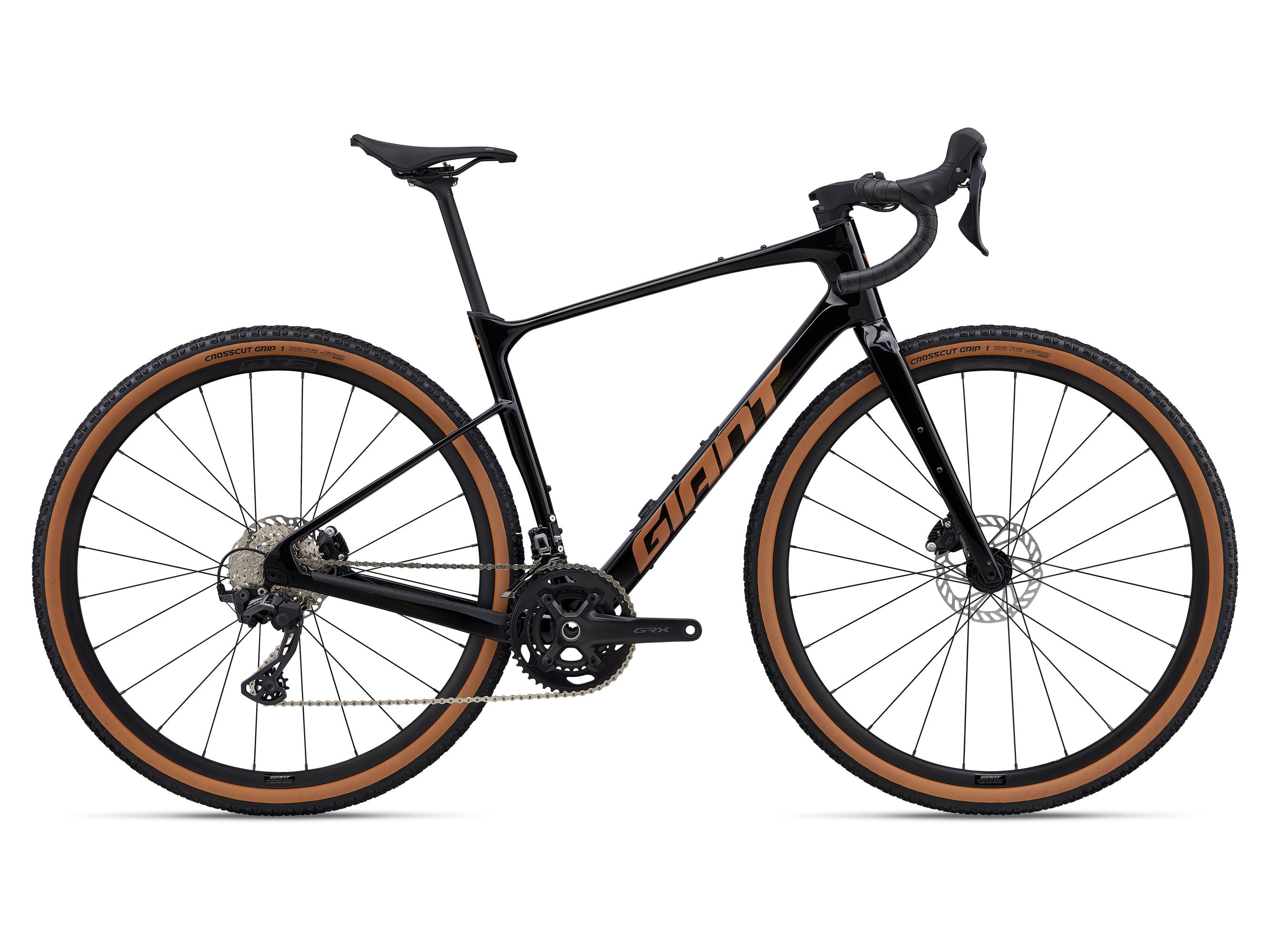

2026 Giant Revolt Advanced 2
By
Giant
SKU:
1080024123
$3,499.00
Unit price
/
Inquire for Availability
Description
Rough roads, gravel or dirt. However you choose to roll, this bike does it all. The lightweight, smooth-riding composite frameset and adjustable wheelbase make it more capable than ever.
Key Performance Factors
Fast and light
Advanced composite frame and fork save more than 160g compared to the previous model. Updated geometry includes a lower bottom bracket, longer reach and steeper head tube angle for improved acceleration and climbing.
Tuned compliance
Dropped seatstays with thin tubing absorbs road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.
Adaptable to the terrain
A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can also choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.
| Frame | Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage |
|---|---|
| Fork | Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc |
| Rims | Giant P-X2 , alloy |
| Hubs | Giant alloy, 12mm thru-axle |
| Spokes | Sapim |
| Tires | Giant Crosscut Grip, 700x45c, tubeless |
| Bottom Bracket | Shimano, press fit |
| Crankset | Shimano FC-RX610-2, 30/46 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm |
| Shifters | Shimano GRX RX-610, 2x12 |
| Front Derailleur | Shimano GRX RX-820 |
| Rear Derailleur | Shimano GRX RX-820 |
| Cassette/Freewheel | Shimano CS-HG710, 12-speed, 11x36 |
| Chain | KMC X12L-1 |
| Brakes | Shimano BR-RX410hydraulic, Giant MPH rotors [F]160mm, [R]160mm |
| Brake Levers | Shimano GRX RX-610 hydraulic |
| Handlebars | Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm |
| Tape/Grips | Stratus Lite 3.0 |
| Stem | Giant Contact AeroLight, -10 degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm |
| Seatpost | Giant D-Fuse, composite, 14mm offset |
| Saddle | Giant Grit |
| Pedals | Sold Separately |
Giant Bikes Sizing Charts
Propel / TCR / Defy / Contend
| Rider Height (Inches) | Rider Height (Metric) | Bike Size |
|---|---|---|
| 5'2"-5'7" | 157-169cm | XS |
| 5'5"-5'9" | 165-175cm | Small |
| 5'7"-5'11" | 171-181cm | Medium |
| 5'10"-6'2" | 177-187cm | Medium/Large |
| 6'0"-6'4" | 183-193cm | Large |
| 6'2"-6'6" | 189-199cm | XL |
TCX / Defy E+
| Rider Height (Inches) | Rider Height (Metric) | Bike Size |
|---|---|---|
| 5'2"-5'6" | 158-168cm | XS |
| 5'5"-5'9" | 166-174cm | Small |
| 5'8"-5'11" | 172-180cm | Medium |
| 5'10"-6'1" | 178-186cm | Medium/Large |
| 6'0"-6'4" | 184-192cm | Large |
| 6'3"-6'6" | 190-198cm | XL |
FastRoad / FastRoad E+
| Rider Height (Inches) | Rider Height (Metric) | Bike Size |
|---|---|---|
| 5'1"-5'5" | 155-165cm | XS |
| 5'3"-5'7" | 160-170cm | Small |
| 5'7"-5'11" | 170-180cm | Medium |
| 5'9"-6'1" | 175-185cm | Medium/Large |
| 5'11"-6'3" | 180-190cm | Large |
| 6'3"-6'7" | 190-200cm | XL |
Escape
| Rider Height (Inches) | Rider Height (Metric) | Bike Size |
|---|---|---|
| 4'11"-5'3" | 150-160cm | XS |
| 5'3"-5'7" | 160-170cm | Small |
| 5'7"-5'11" | 170-180cm | Medium |
| 5'11"-6'3" | 180-190cm | Large |
| 6'3"-6'7" | 190-200cm | XL |
Revolt
| Rider Height (Inches) | Rider Height (Metric) | Bike Size |
|---|---|---|
| 5'1"-5'5" | 155-166cm | XS |
| 5'3"-5'7" | 159-171cm | Small |
| 5'7"-5'11" | 169-181cm | Medium |
| 5'9"-6'1" | 174-186cm | Medium/Large |
| 5'10"-6'3" | 179-191cm | Large |
| 6'2"-6'7" | 189-200cm | XL |
Revolt E+
| Rider Height (Inches) | Rider Height (Metric) | Bike Size |
|---|---|---|
| 5'3"-5'8" | 161-172cm | Small |
| 5'6"-5'10" | 168-178cm | Medium |
| 5'9"-6'1" | 175-185cm | Medium/Large |
| 5'11"-6'4" | 181-192cm | Large |
| 6'2"-6'7" | 189-200cm | XL |
Cypress / Roam / Roam E+ / ToughRoad
| Rider Height (Inches) | Rider Height (Metric) | Bike Size |
|---|---|---|
| 5'3"-5'7" | 160-170cm | Small |
| 5'7"-5'11" | 170-180cm | Medium |
| 5'11"-6'3" | 180-190cm | Large |
| 6'3"-6'7" | 190-200cm | XL |
Explore E+ / Anytour E+ / Fathom E+ / Talon E+
| Rider Height (Inches) | Rider Height (Metric) | Bike Size |
|---|---|---|
| 5'4"-5'8" | 162-172cm | Small |
| 5'7"-5'10" | 169-179cm | Medium |
| 5'9"-6'1" | 176-186cm | Large |
| 6'0"-6'4" | 183-193cm | XL |
| 6'3"-6'7" | 190-200cm | XXL |
Anthem / Reign / Reign E+ / XTC / Fathom / Trance / Stance / Stance E+ / Yukon
| Rider Height (Inches) | Rider Height (Metric) | Bike Size |
|---|---|---|
| 5'2"-5'5" | 157-166cm | XS |
| 5'4"-5'8" | 163-172cm | Small |
| 5'7"-5'11" | 171-180cm | Medium |
| 5'10"-6'2" | 179-188cm | Large |
| 6'2"-6'6" | 187-198cm | XL |
Glory
| Rider Height (Inches) | Rider Height (Metric) | Bike Size |
|---|---|---|
| 5'4"-5'11" | 163-180cm | Small/Medium |
| 5'7"-6'2" | 171-188cm | Medium/Large |
| 5'10"-6'6" | 179-198cm | Large/XL |
Trance X
| Rider Height (Inches) | Rider Height (Metric) | Bike Size |
|---|---|---|
| 5'4"-5'8" | 163-172cm | Small |
| 5'7"-5'11" | 171-180cm | Medium |
| 5'10"-6'2" | 179-188cm | Large |
| 6'2"-6'5" | 187-196cm | XL |
Trance X E+
| Rider Height (Inches) | Rider Height (Metric) | Bike Size |
|---|---|---|
| 5'4"-5'9" | 163-174cm | Small |
| 5'7"-6'0" | 171-182cm | Medium |
| 5'10"-6'3" | 179-190cm | Large |
| 6'2"-6'6" | 187-198cm | XL |
Yukon E+
| Rider Height (Inches) | Rider Height (Metric) | Bike Size |
|---|---|---|
| 5'4"-5'8" | 162-172cm | Small |
| 5'7"-5'10" | 169-179cm | Medium |
| 5'9"-6'1" | 176-186cm | Large |
| 6'0"-6'4" | 183-193cm | XL |
Talon
| Rider Height (Inches) | Rider Height (Metric) | Bike Size |
|---|---|---|
| 5'1"-5'5" | 155-166cm | XS (27.5") |
| 5'4"-5'8" | 163-172cm | Small (27.5") |
| 5'4"-5'8" | 163-172cm | Small (29") |
| 5'7"-5'10" | 169-179cm | Medium (27.5") |
| 5'7"-5'10" | 169-179cm | Medium (29") |
| 5'9"-6'1" | 176-186cm | Large (29") |
| 6'0"-6'4" | 183-193cm | XL (29") |
STP
| Rider Height (Inches) | Rider Height (Metric) | Bike Size |
|---|---|---|
| 4'7"-5'3" | 140-160cm | Regular |
| 5'1"-5'7" | 155-170cm | Large |
ATX
| Rider Height (Inches) | Rider Height (Metric) | Bike Size |
|---|---|---|
| 5'0"-5'2" | 152-157cm | XXS (26") |
| 5'2"-5'4" | 157-162cm | XS (26") |
| 5'4"-5'7" | 162-170cm | Small (26") |
| 5'4"-5'7" | 162-170cm | Small (27.5") |
| 5'7"-5'9" | 170-175cm | Medium (27.5") |
| 5'9"-6'1" | 175-185cm | Large (27.5") |
| 6'1"-6'4" | 185-193cm | XL (27.5") |
Trance Jr.
| Rider Height (Inches) | Rider Height (Metric) | Bike Size |
|---|---|---|
| 4'9"-5'5" | 145-165cm | 26" |
Faith
| Rider Height (Inches) | Rider Height (Metric) | Bike Size |
|---|---|---|
| 4'3"-4'11" | 130-150cm | 24" |
| 4'9"-5'5" | 145-165cm | 27.5/26" |
XTC Jr. / ARX
| Rider Height (Inches) | Rider Height (Metric) | Bike Size |
|---|---|---|
| 3'11"-4'7" | 120-140cm | 20" |
| 4'3"-4'11" | 130-150cm | 24" |
Talon
| Rider Height (Inches) | Rider Height (Metric) | Bike Size |
|---|---|---|
| 3'8"-4'5" | 113-135cm | 20" | 4'3"-4'11" | 130-150cm | 24" |
STP
| Rider Height (Inches) | Rider Height (Metric) | Bike Size |
|---|---|---|
| 3'9"-4'3" | 115-130cm | 20" | 4'1"-4'9" | 125-145cm | 24" | 4'7"-5'3" | 140-160cm | 26" (Regular) | 5'1"5'7" | 155-170cm | 26" (Large) |
Animator
| Rider Height (Inches) | Rider Height (Metric) | Bike Size |
|---|---|---|
| 3'5"-4'1" | 105-125cm | 16" |
