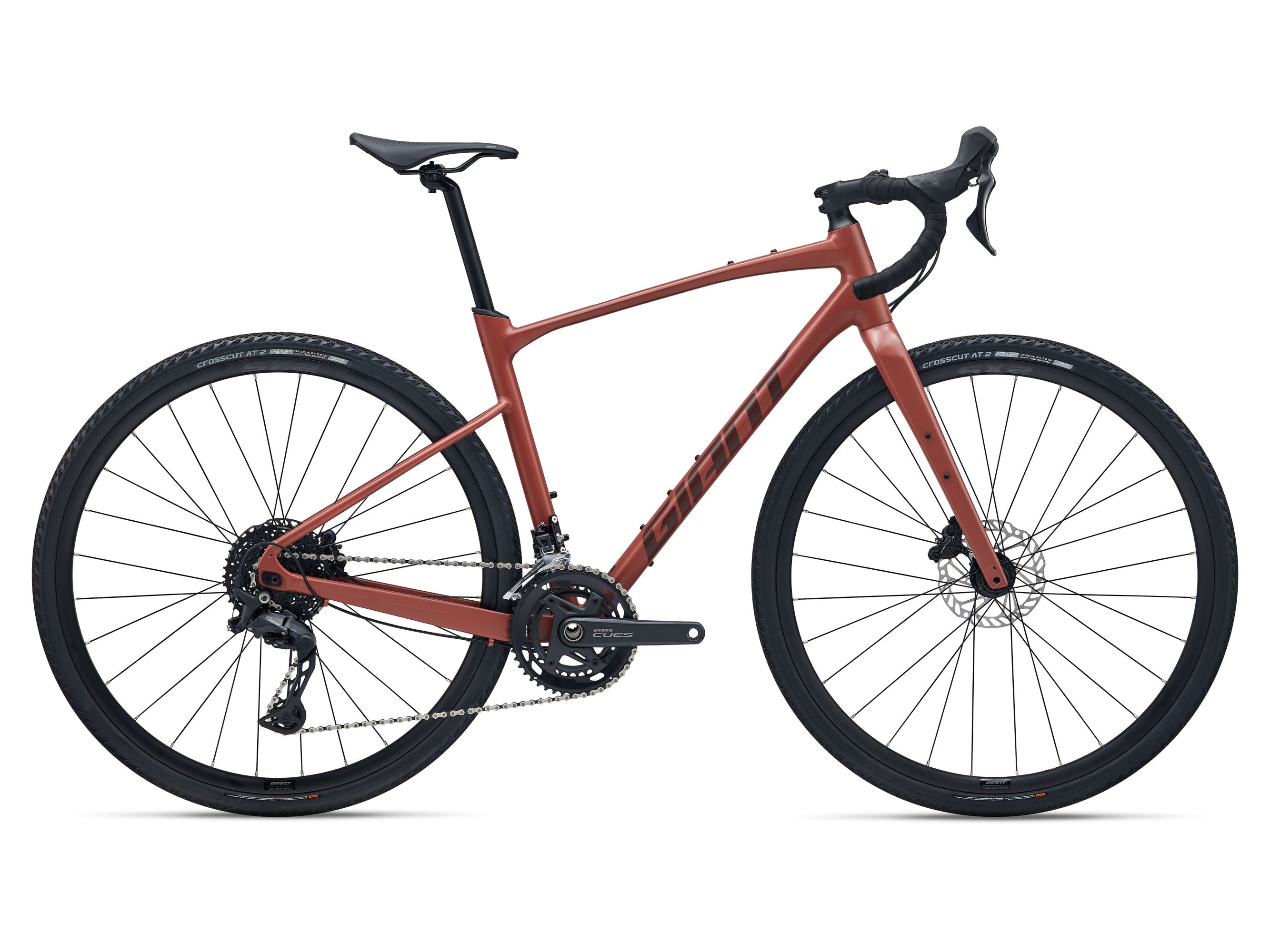

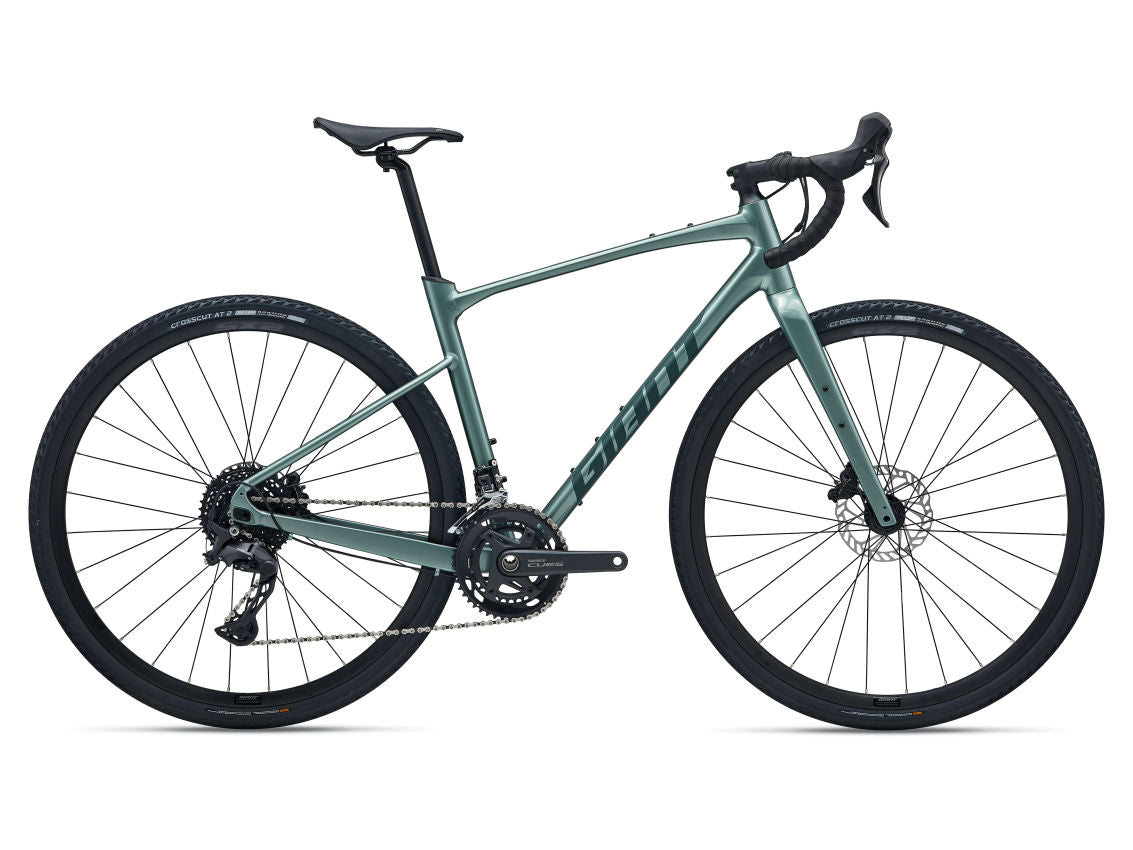

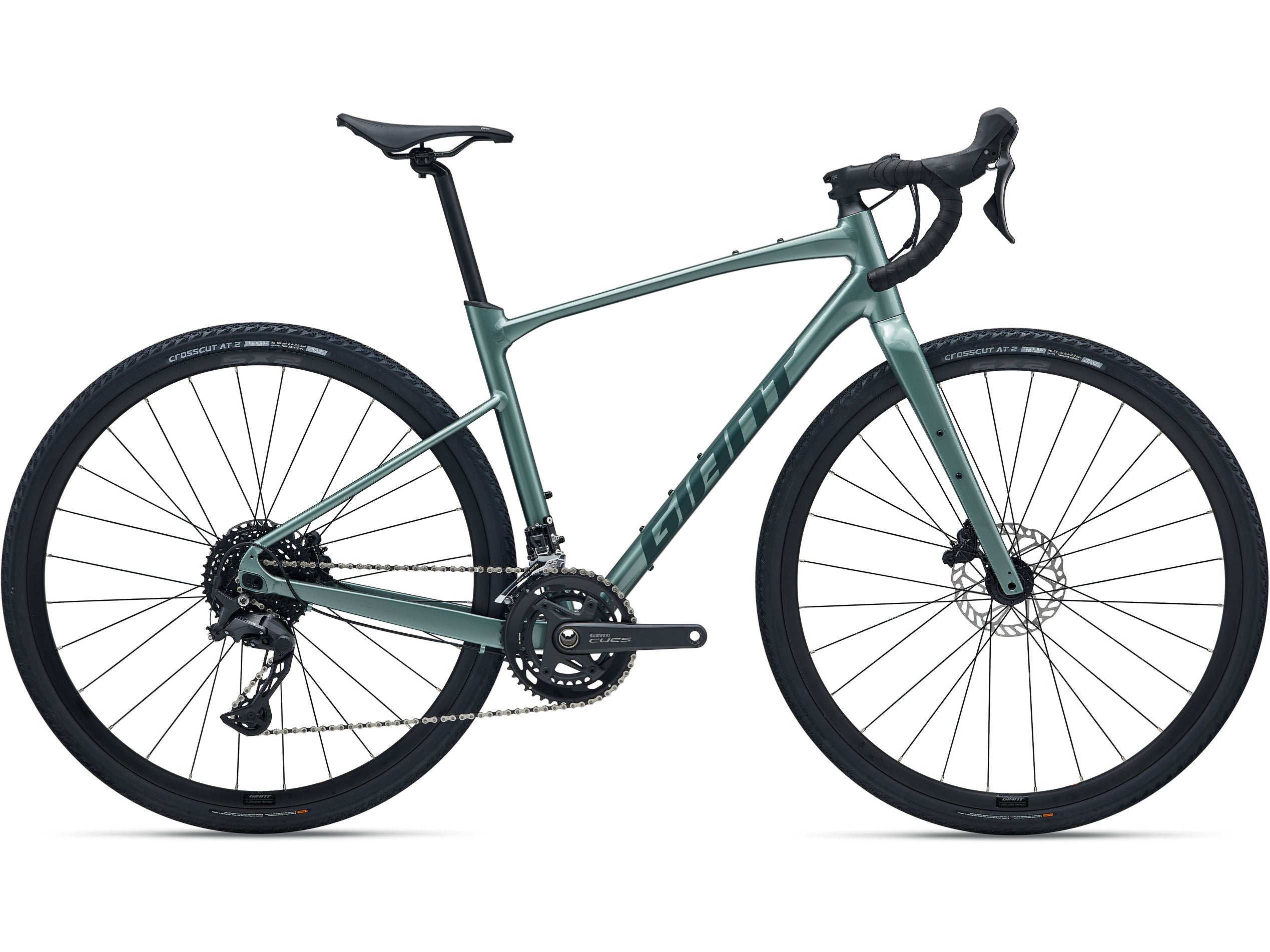

2026 Giant Revolt 1
By
Giant
SKU:
1080014224
$2,199.00
Unit price
/
Inquire for Availability
Description
Ride roads, gravel or dirt with this versatile aluminum all-rounder. A composite fork gives it a smooth ride, and a flip chip lets you adjust wheelbase and tire clearance.
Key Performance Factors
Confident handling
Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.
Tuned compliance
Dropped seatstays with thin tubing absorb road shocks and vibrations. The D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.
Adaptable to the terrain
A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.
| Frame | ALUXX-grade aluminum, 12x142mm thru-axle, disc, flip chip dropout |
|---|---|
| Fork | Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc |
| Rims | Giant S-X2, alloy |
| Hubs | Giant alloy, 12mm thru-axle |
| Spokes | stainless |
| Tires | Giant CrossCut AT 2, 700x38c, tubeless |
| Bottom Bracket | Shimano, threaded |
| Crankset | Shimano FC-U6030-2, 32/46 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm |
| Shifters | Shimano CUES U6030, 2x10 |
| Front Derailleur | Shimano CUES U6030 |
| Rear Derailleur | Shimano CUES U6020 |
| Cassette/Freewheel | Shimano CS-LG300, 11x39 |
| Chain | KMC X11 |
| Brakes | Shimano CUES U6030 hydraulic, Giant MPH rotors [F]160mm, [R]160mm |
| Brake Levers | Shimano CUES U6030 hydraulic |
| Handlebars | Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm |
| Tape/Grips | cork tape with gel |
| Stem | Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm |
| Seatpost | Giant D-Fuse, alloy, 14mm offset |
| Saddle | Giant Grit |
| Pedals | Sold Separately |
Giant Bikes Sizing Charts
Propel / TCR / Defy / Contend
| Rider Height (Inches) | Rider Height (Metric) | Bike Size |
|---|---|---|
| 5'2"-5'7" | 157-169cm | XS |
| 5'5"-5'9" | 165-175cm | Small |
| 5'7"-5'11" | 171-181cm | Medium |
| 5'10"-6'2" | 177-187cm | Medium/Large |
| 6'0"-6'4" | 183-193cm | Large |
| 6'2"-6'6" | 189-199cm | XL |
TCX / Defy E+
| Rider Height (Inches) | Rider Height (Metric) | Bike Size |
|---|---|---|
| 5'2"-5'6" | 158-168cm | XS |
| 5'5"-5'9" | 166-174cm | Small |
| 5'8"-5'11" | 172-180cm | Medium |
| 5'10"-6'1" | 178-186cm | Medium/Large |
| 6'0"-6'4" | 184-192cm | Large |
| 6'3"-6'6" | 190-198cm | XL |
FastRoad / FastRoad E+
| Rider Height (Inches) | Rider Height (Metric) | Bike Size |
|---|---|---|
| 5'1"-5'5" | 155-165cm | XS |
| 5'3"-5'7" | 160-170cm | Small |
| 5'7"-5'11" | 170-180cm | Medium |
| 5'9"-6'1" | 175-185cm | Medium/Large |
| 5'11"-6'3" | 180-190cm | Large |
| 6'3"-6'7" | 190-200cm | XL |
Escape
| Rider Height (Inches) | Rider Height (Metric) | Bike Size |
|---|---|---|
| 4'11"-5'3" | 150-160cm | XS |
| 5'3"-5'7" | 160-170cm | Small |
| 5'7"-5'11" | 170-180cm | Medium |
| 5'11"-6'3" | 180-190cm | Large |
| 6'3"-6'7" | 190-200cm | XL |
Revolt
| Rider Height (Inches) | Rider Height (Metric) | Bike Size |
|---|---|---|
| 5'1"-5'5" | 155-166cm | XS |
| 5'3"-5'7" | 159-171cm | Small |
| 5'7"-5'11" | 169-181cm | Medium |
| 5'9"-6'1" | 174-186cm | Medium/Large |
| 5'10"-6'3" | 179-191cm | Large |
| 6'2"-6'7" | 189-200cm | XL |
Revolt E+
| Rider Height (Inches) | Rider Height (Metric) | Bike Size |
|---|---|---|
| 5'3"-5'8" | 161-172cm | Small |
| 5'6"-5'10" | 168-178cm | Medium |
| 5'9"-6'1" | 175-185cm | Medium/Large |
| 5'11"-6'4" | 181-192cm | Large |
| 6'2"-6'7" | 189-200cm | XL |
Cypress / Roam / Roam E+ / ToughRoad
| Rider Height (Inches) | Rider Height (Metric) | Bike Size |
|---|---|---|
| 5'3"-5'7" | 160-170cm | Small |
| 5'7"-5'11" | 170-180cm | Medium |
| 5'11"-6'3" | 180-190cm | Large |
| 6'3"-6'7" | 190-200cm | XL |
Explore E+ / Anytour E+ / Fathom E+ / Talon E+
| Rider Height (Inches) | Rider Height (Metric) | Bike Size |
|---|---|---|
| 5'4"-5'8" | 162-172cm | Small |
| 5'7"-5'10" | 169-179cm | Medium |
| 5'9"-6'1" | 176-186cm | Large |
| 6'0"-6'4" | 183-193cm | XL |
| 6'3"-6'7" | 190-200cm | XXL |
Anthem / Reign / Reign E+ / XTC / Fathom / Trance / Stance / Stance E+ / Yukon
| Rider Height (Inches) | Rider Height (Metric) | Bike Size |
|---|---|---|
| 5'2"-5'5" | 157-166cm | XS |
| 5'4"-5'8" | 163-172cm | Small |
| 5'7"-5'11" | 171-180cm | Medium |
| 5'10"-6'2" | 179-188cm | Large |
| 6'2"-6'6" | 187-198cm | XL |
Glory
| Rider Height (Inches) | Rider Height (Metric) | Bike Size |
|---|---|---|
| 5'4"-5'11" | 163-180cm | Small/Medium |
| 5'7"-6'2" | 171-188cm | Medium/Large |
| 5'10"-6'6" | 179-198cm | Large/XL |
Trance X
| Rider Height (Inches) | Rider Height (Metric) | Bike Size |
|---|---|---|
| 5'4"-5'8" | 163-172cm | Small |
| 5'7"-5'11" | 171-180cm | Medium |
| 5'10"-6'2" | 179-188cm | Large |
| 6'2"-6'5" | 187-196cm | XL |
Trance X E+
| Rider Height (Inches) | Rider Height (Metric) | Bike Size |
|---|---|---|
| 5'4"-5'9" | 163-174cm | Small |
| 5'7"-6'0" | 171-182cm | Medium |
| 5'10"-6'3" | 179-190cm | Large |
| 6'2"-6'6" | 187-198cm | XL |
Yukon E+
| Rider Height (Inches) | Rider Height (Metric) | Bike Size |
|---|---|---|
| 5'4"-5'8" | 162-172cm | Small |
| 5'7"-5'10" | 169-179cm | Medium |
| 5'9"-6'1" | 176-186cm | Large |
| 6'0"-6'4" | 183-193cm | XL |
Talon
| Rider Height (Inches) | Rider Height (Metric) | Bike Size |
|---|---|---|
| 5'1"-5'5" | 155-166cm | XS (27.5") |
| 5'4"-5'8" | 163-172cm | Small (27.5") |
| 5'4"-5'8" | 163-172cm | Small (29") |
| 5'7"-5'10" | 169-179cm | Medium (27.5") |
| 5'7"-5'10" | 169-179cm | Medium (29") |
| 5'9"-6'1" | 176-186cm | Large (29") |
| 6'0"-6'4" | 183-193cm | XL (29") |
STP
| Rider Height (Inches) | Rider Height (Metric) | Bike Size |
|---|---|---|
| 4'7"-5'3" | 140-160cm | Regular |
| 5'1"-5'7" | 155-170cm | Large |
ATX
| Rider Height (Inches) | Rider Height (Metric) | Bike Size |
|---|---|---|
| 5'0"-5'2" | 152-157cm | XXS (26") |
| 5'2"-5'4" | 157-162cm | XS (26") |
| 5'4"-5'7" | 162-170cm | Small (26") |
| 5'4"-5'7" | 162-170cm | Small (27.5") |
| 5'7"-5'9" | 170-175cm | Medium (27.5") |
| 5'9"-6'1" | 175-185cm | Large (27.5") |
| 6'1"-6'4" | 185-193cm | XL (27.5") |
Trance Jr.
| Rider Height (Inches) | Rider Height (Metric) | Bike Size |
|---|---|---|
| 4'9"-5'5" | 145-165cm | 26" |
Faith
| Rider Height (Inches) | Rider Height (Metric) | Bike Size |
|---|---|---|
| 4'3"-4'11" | 130-150cm | 24" |
| 4'9"-5'5" | 145-165cm | 27.5/26" |
XTC Jr. / ARX
| Rider Height (Inches) | Rider Height (Metric) | Bike Size |
|---|---|---|
| 3'11"-4'7" | 120-140cm | 20" |
| 4'3"-4'11" | 130-150cm | 24" |
Talon
| Rider Height (Inches) | Rider Height (Metric) | Bike Size |
|---|---|---|
| 3'8"-4'5" | 113-135cm | 20" | 4'3"-4'11" | 130-150cm | 24" |
STP
| Rider Height (Inches) | Rider Height (Metric) | Bike Size |
|---|---|---|
| 3'9"-4'3" | 115-130cm | 20" | 4'1"-4'9" | 125-145cm | 24" | 4'7"-5'3" | 140-160cm | 26" (Regular) | 5'1"5'7" | 155-170cm | 26" (Large) |
Animator
| Rider Height (Inches) | Rider Height (Metric) | Bike Size |
|---|---|---|
| 3'5"-4'1" | 105-125cm | 16" |
