The All-Around Fat Bike

Wednesday sits in the middle of our Trail category, but don’t let that fool you into thinking that’s its only use. With Wednesday, we borrowed elements from some of our Trail and Touring models to create a versatile fat tire trail bike that can truly handle anything you want to attempt.

If you do an equal amount of off-road touring as you do hitting trails, Wednesday’s ability to play both parts equally will suit you well. Or, if you’re looking for a fat bike and don’t need the fattest tires on the market, Wednesday’s 26 x 4.6” tire clearance is just the ticket.

“Any day of the week’s a great day to ride a Wednesday.”

• Modern mountain standards: stealth dropper post routing, 44mm headtube, suspension correction, front and rear thru-axles

• Full suite of useful braze-ons: front and rear racks, multiple sets of three-pack mounts, fenders

• Full-forward, short chainstay position: 26 x 3.8˝ tires on 80mm rims; full-rearward, longer chainstay position: 26 x 4.6˝ tires on an 80mm rim

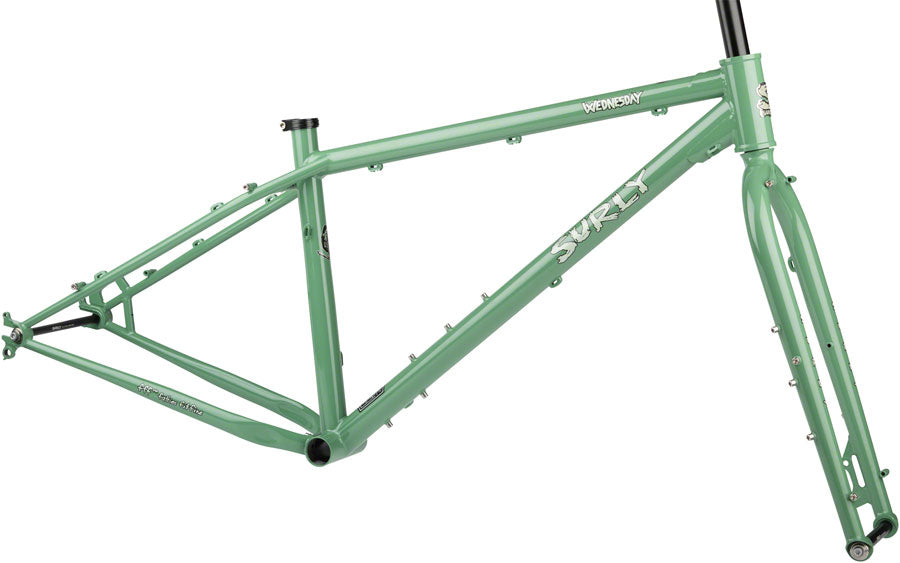

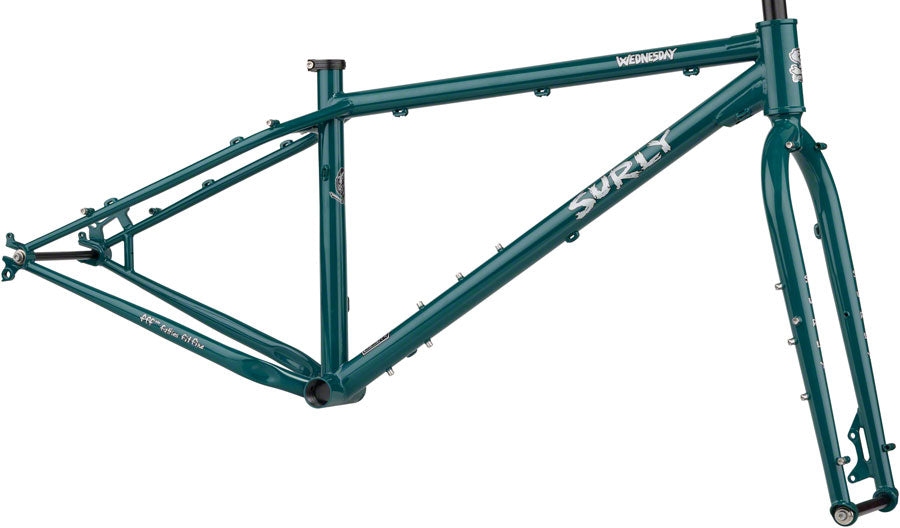

Frameset

• Frame
  • Surly Wednesday, 100% Surly 4130 Chromoly steel. 100% Surly Chromoly Steel, Natch tubing, double-butted main triangle, TIG welded, E.D. coated
• Fork
  • Surly Wednesday, 100% Surly 4130 Chromoly steel. 100% Surly Chromoly Steel, Natch tubing, double-butted main triangle, TIG welded, E.D. coated

Components

• Seatpost Clamp
  • Surly stainless, 33.1mm

Frame Specs

• Design Wheel/Tire Sizes
  • 26 x 3.8"

• Max Tire Outer Diameter

  • Frame:
    • 26 x 4.6" (rear axle position)
    • 26 x 3.8" (front axle position)
    • 27.5 x 4.0" (rear axle position)
    • 29 x 3.0"
  • Fork:
    • 26 x 5.25"
    • 29 x 3.0"
  • Different tire and rim combinations will result in different clearances. Depending on drivetrain configuration, tire clearance may be limited by the chain and not the frame. For suspension fork tire clearance, please reference the fork manufacturer's website.

• Frame Construction
  • 4130 Chromoly, Natch tubing, double-butted main triangle, trumpet flared tubes, TIG welded, ED coated

• Fork Construction
  • 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated

• Rear Spacing
  • 12 x 177mm (Surly axle included)

• Rear Brake (Rotor)
  • Disc - 51mm I.S. (203mm max rotor)
• Front Brake (Rotor)
  • Disc - 51mm I.S. (203mm max rotor)

• Headset - Upper
  • ZS44/28.6

• Headset - Lower
  • EC44/40
• Front Spacing
  • 15 x 150mm (Surly axle included)

• Crankset (Max Ring)
  • 1x (Fat bike 170): 34T
  • 2x (Fat bike 170): 26/38T
  • 2x (Surly OD): 22/36T
  • Listed chainring clearance is worst-case scenario. Clearances vary widely depending on components and configurations.
