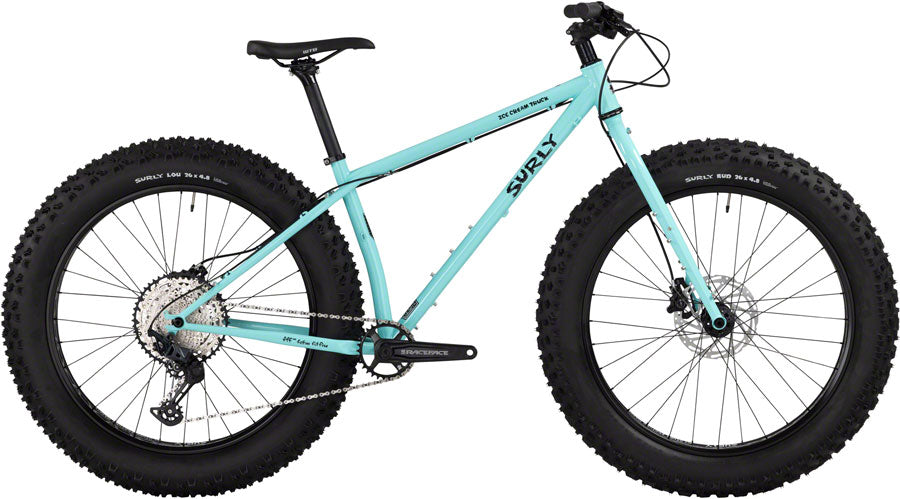

The Largest Tire Clearance on a Fat Bike Frame

From log and root covered ribbons of twisty singletrack to miles of powdery snow or sandy beaches, Ice Cream Truck can handle it all. Hell, you could probably even hop over a grizzly if the situation arises. Probably.

While we could certainly throw out terms like “confidence-inspiring” and “traction-laden” to describe Ice Cream Truck, those phrases are mostly bullshit, so we’re not going to do that. We’re not here to inspire you, and we didn’t laden it with anything. What we did do was design a monolith of a trail bike that doesn’t give two shits about what’s in front of it.

• Long toptube, short seatstays, and a 68-degree headtube angle makes it tight and maneuverable on fast, technical terrain

• Modern trail bike standards like stealth dropper post routing, 44mm headtube, and thru-axles

• Clearance for a full 26” x 5” tire on 100mm rims

Frameset

• Frame
  • Surly Ice Cream Truck 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated
• Fork
  • Surly Ice Cream Truck 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated

Components

• Headset
  • Cane Creek
• Seatpost Clamp
  • Stainless 33.1 collar, Black
• Seatpost
  • Kalloy 30.9mm
• Stem
  • Kalloy 31.8
• Grips/Bar Tape
  • Velo Black
• Saddle
  • Selle Italia
• Handlebar
  • Salsa Rustler

Drivetrain

• Front Derailleur
  • N/A
• Rear Derailleur
  • Shimano SLX M7100
• Cassette
  • Shimano SLX 10-51t, 12-speed
• Chain
  • KMC X12
• Crankset
  • Race Face Aeffect, 30T
• Shifter
  • Shimano SLX M7100
• Brake Levers
  • Tektro Gemini HD-M520
• Brake Calipers
  • Tektro Gemini HD-M520
• Bottom Bracket
  • Race Face
• Rotors
  • Tektro 180/160, 6-Bolt

Wheels

• Front Tire
  • Surly Lou, 26 x 4.8", 120tpi, tubeless ready
• Rear Tire
  • Surly Lou, 26 x 4.8", 120tpi, tubeless ready
• Front Hub
  • Novatec 15x150mm
• Rear Hub
  • OE 197x12mm
• Rim
  • Surly My Other Brother Daryl Rims, 32h
