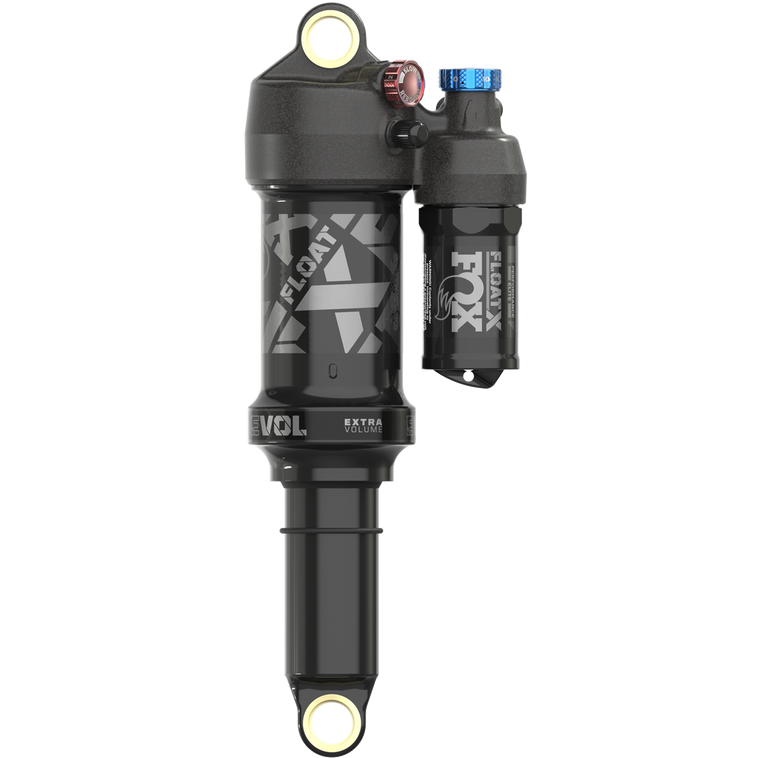

Designed specifically to meet the demands of aggressive trail riders, the new FLOAT X combines sophisticated damping and fade free performance with incredible light weight and outstanding structural integrity.

• ALL-NEW chassis and damper
• High-flow main piston
• Air seal package
• Volume spacers with smaller increments
• MCU bottom out bumper
• Numbered tool-free 12 position single-turn LSC (Low Speed Compression) adjuster
• Independent firm mode circuit – Clockable 2 position adjuster
• Increased rebound adjuster range (over DPX2)
• Optimized reservoir lengths per shock size
• Hydraulic top out feature
• Reduced damper noise
• Larger air sleeve bore reduces average rider pressure by 40 psi vs. DPX2
• Bearing hardware compatible both sides
• Air valve location offers improved frame fitment and pump access
