Wheels MFG Bottom Bracket Adapters

SKU: BB30-SHIM
From Wheels Manufacturing
$71.00
Adapter

Stock Locations:

St. Laurent:

Hintonburg:

Warehouse:

Special Order:

Description

BB30 Adapters:

  • Adapts 24mm Spindle Cranks (Shimano, FSA, etc.) or SRAM GXP 22/24mm Spindle Cranks to work on BB30 frames.
  • Simply tap the adapters into the 6806 bearing in the BB shell, install the spindle and cranks.
  • Use Crank Spindle Spacers to adjust your chainline, or take up any side-to-side movement in your cranks.

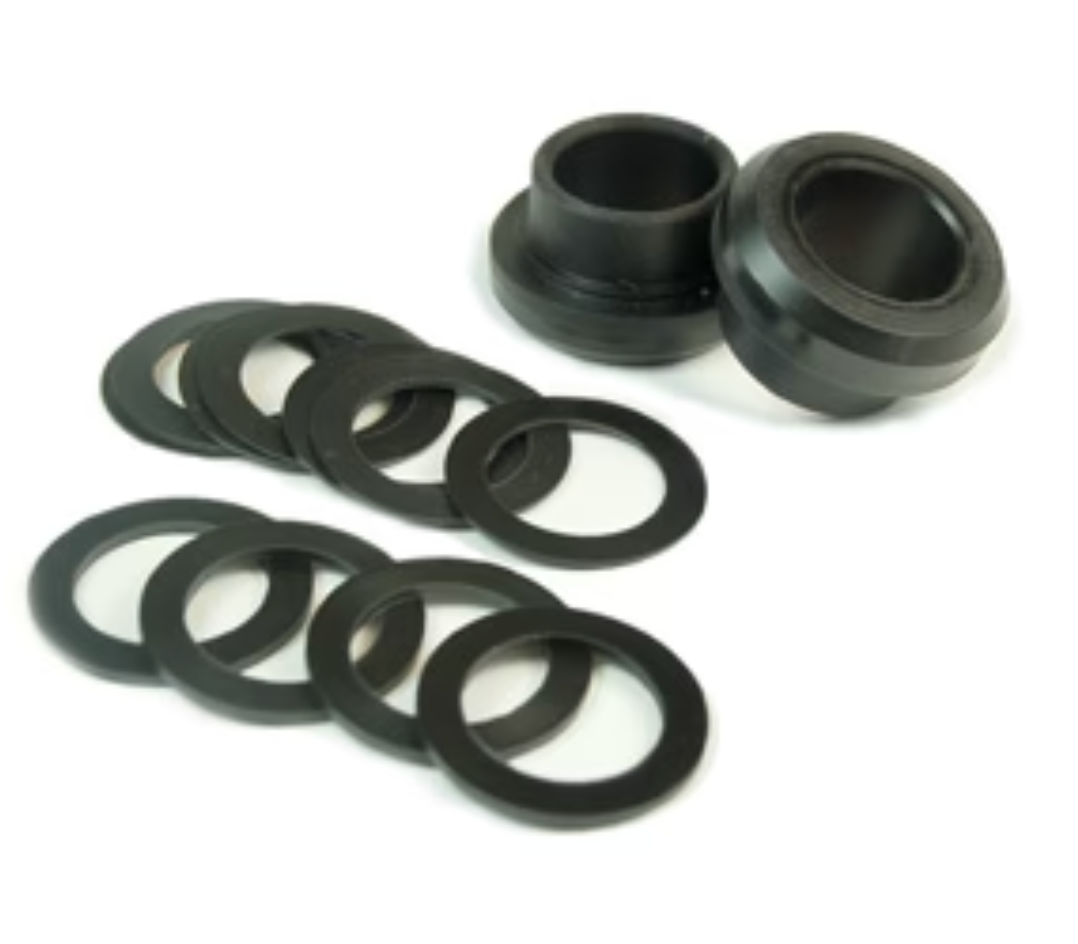

BBRight Adapters:

  • Compatible with 2011-2012 Cervelo models R3, R3 Team, S5, S5 Team, S5 VWD, and R5 VWD (not compatible with R5ca direct-fit bb).
  • Oncludes eight 0.7mm shims for fine-tuning chain line.
  • Note: These adapters are not compatible with the FSA BBRight bottom bracket.
  • 48 g/pr.

PF30 Adapters:

  • The PF30-SHIM adapts 24mm Spindle Cranks (Shimano, FSA, etc.) to work on Pressfit 30 frames.
  • Simply tap the adapters into the 6806 bearing in the BB shell, install the spindle and cranks.
  • Use our Crank Spindle Spacers to adjust your chainline, or take up any side-to-side movement in your cranks.
  • Machined engineering-grade Delrin
  • PF30-SHIM was originally designed for use with SRAM PF30 bottom brackets and will not work with Wheels Manufacturing PF30-BB, PF30-BB-AC or PF30-BB-CER. Use our BBUNIV-SHIM to adapt 24mm Spindle Cranks (Shimano, FSA, etc.) in Wheels Manufacturing PF30 bottom brackets.
  • Not compatible with SRAM PF30 bottom brackets that use a thin plastic reducer inserted into the bearings. See Compatibility tab on wheelsmfg.com
  • The stock bottom bracket seals must be removed before installing the Pressfit 30 adapter
  • 48g/pr



BBUNIV-SHIM :

The BBUNIV-SHIM kit adapts Shimano or similar 24mm cranks to virtually any BB30/PF30 frame, including mountain bikes, 2x10 systems, narrow-shell road bikes, road triples, etc. For use only with bottom bracket shell widths from 68mm to 83mm. Simply tap the adapters into the 6806 bearing in the BB shell or cups, then install the cranks using the included spacers to adjust chainline, or to take up any side-to-side movement in the crank.

  • Includes 2 adapter shims and a 13-piece assortment of left and right side spacers.
  • Machined engineering-grade Delrin.
