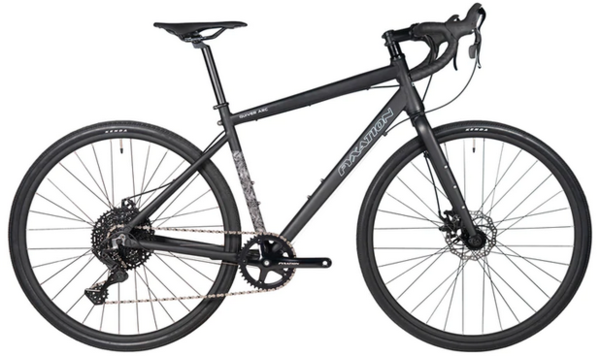

Fyxation Quiver Arc

Fyxation Quiver Arc
  • Color: Matte Black
  • Color: Dark Gold
Please select options


One bike that does it all; that's the driving philosophy at the heart of every iteration of the Quiver we've designed. Our newest all-road commute (ARC) takes this ethos to the next level! Equipped with a wide range 1x10 drivetrain, disc brakes and versatile flared adventure bars.

Need room for racks or bags? We've got that covered! Fender mounts, rear rack and front three-pack gear mounts, allows the Quiver ARC to be outfitted for your next adventure!


Frame Fyxation 6061 Aluminum
Fork Fyxation 6061 Aluminum, 1 1/8” x 1 1/2" Tapered Steerer, Triple Gear Cage Mounts
Headset Neco loose ball, 1-1/8" threadless
Rims 700c Aluminum, Double wall, 22mm Deep, 19mm Inner Width, 32H
Hubs Fyxation sealed bearing hub, QR, 6 bolt disc
Spokes Stainless, 14G
Crankset Fyxation Forged Alloy, L: 170mm, 42T
Chainrings 42T
Bottom Bracket Neco Sealed Bearing, 68x119mm
Chain KMC 10-speed
Rear Cog(s) 10 Speed, 11-48T
Handlebars Alloy Adventure Drop Bar, 31.8mm, 12 Degree Flare, W: (400mm S/M) (420mm L) (440mm XL), Ano. Finish
Tape/Grips Fyxation Atack Tape
Stem Forged Alloy, 31.8mm, +/- 7°, L: (80mm S/M) (100mm L) (110mm XL), Ano. Finish
Rear Derailleur Microshift Advent X, 10 s, Clutched Rear Derailleur
Shifter Microshift Advent X, 10s
Brakes Zoom DB-160, 160mm 6 bolt rotor
Pedals Wide body nylon cage Pedal w/Reflector
Seat Post Alloy, 27.2mm
Accessories & Extras Fender/rack mounts on frame and fork dropouts. Triple gear cage mount on fork.
Weight 23.5lbs
Other Clearance for 700x42c tires (700x35c with fenders)

* Subject to change without notice.

Part Numbers

Option UPC Store SKU
Matte Black / Small 817815015231 210000029414
Matte Black / Medium 817815015248 210000029415
Dark Gold / Medium 817815015286 210000029419
Dark Gold / Large 817815015293 210000029420
