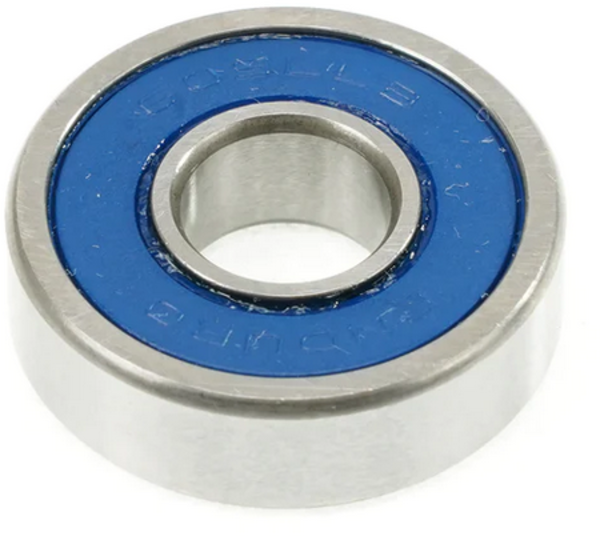

609 LLB - ABEC-3 radial Bearing (C3 clearance) - 9mm x 24mm x 7mm -
This radial bearing has been used as a hub bearing by Mavic and as a pivot bearing though the MAX-type version of this bearing is better suited for suspension use. This ABEC-3 radial bearing features 52100 High-Carbon Chromium alloy races paired with Grade 10 balls and dual-lip labyrinth (LLB) seals to withstand the outside elements, and to contain the 90% fill Mobil XHP 222 high pressure water proof synthetic grease.
The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD-15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls and feature dual-lip seals that ride in a micro-groove creating a full labyrinth to provide superior protection against the elements.
Static load - 580lbf / 2.58kN
Weight - 13.7g
